Hydraulic Vertical Wheelchair Lift for Disabled Access Solutions in Global B2B Market

Customization:	Available
Warranty:	12 Months Apart From Man-Made Faults
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Decoration

i

Basic Specifications

Model NO.

L150

Lift Mechanism

Lift Chain

Carrying Capacity

Light Level (250kg)

Moves

Vehicular

Driven Type

DC or AC, DC and AC

Running Mode

Stationary

Feature

Low Temperature Resistance

Certification

CE, ISO 9001

Base Plate Size

1370mm × 922mm

Power

220V/50Hz

Max Lift Height

6000mm

HS Code

8428909090

P

Product Overview

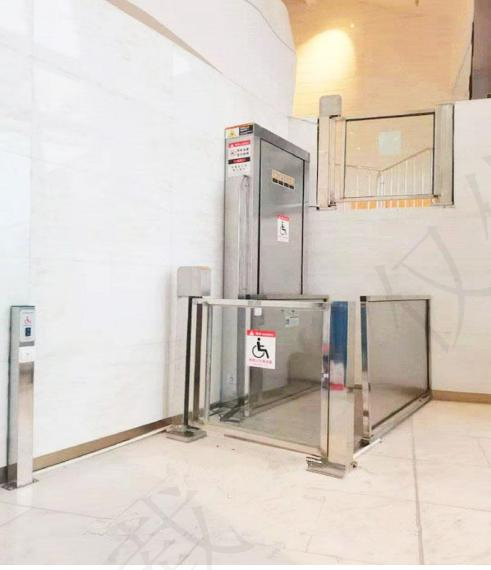

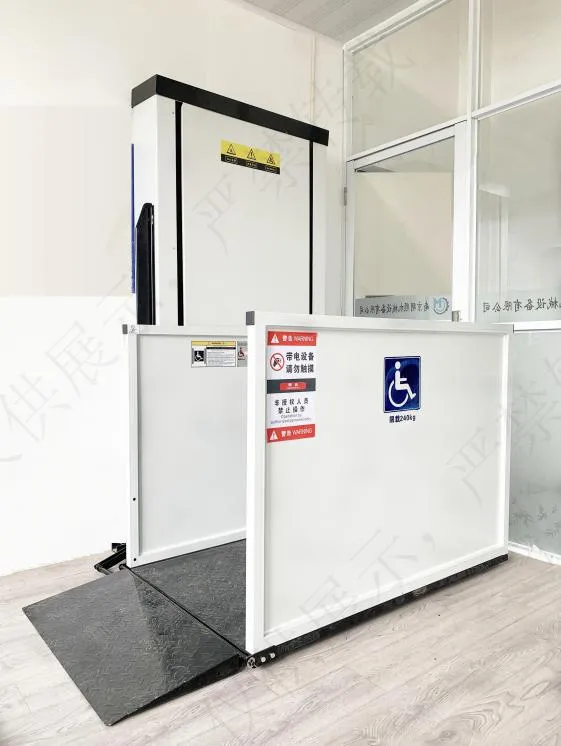

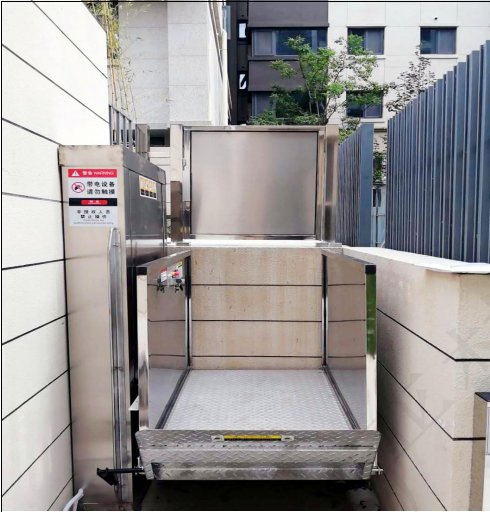

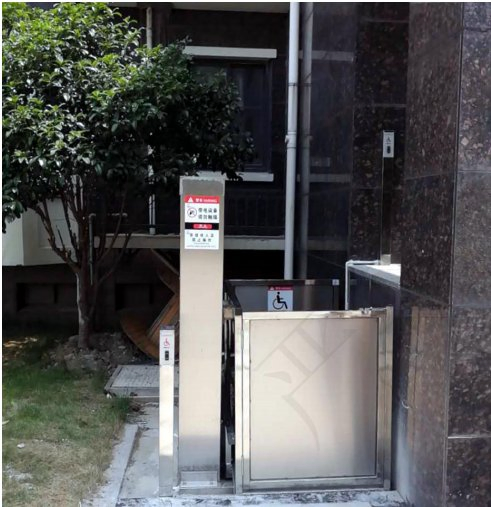

Hydraulic Driven Vertical Disabled Wheelchair Lift

The L-150 screw type barrier-free lifting platform is a vertical multi-functional lifting platform driven by a steel structure frame and precision screw. It can be customized within a range of 2000mm or less based on specific requirements. The safe performance and pit-free installation design offer exceptional convenience for barrier-free access construction.

This product is widely utilized in public areas such as residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, and hospitals. It features a novel design, safe and smooth operation, low noise, and low-temperature resistance, conforming to ASME A18-1 and CSA-B613 standards.

★

Key Features

Novel and modern design.
Safe and smooth vertical movement.
Low noise operation.
Low temperature resistance for varied environments.
High-quality aesthetics and durable finish.

⚙

Technical Parameters

Power	220V/50HZ	Motor Power	0.75kw, 1.5kW 220V/AC
Dimensions	1768mm × 1290mm × H+600mm	Lift control	Rocker self-reset switch
Base plate size	1370mm × 922mm	Environment	Indoor or Outdoor
Max lift height	6000mm	Proper temperature	-20°C to 60°C
Installation	No foundation pit required	Lifting speed	70mm/s (Hydraulic) / 40mm/s (Screw)
Maximum load	250kg	Safety Rocker	Automatic tilt to prevent sliding
Emergency	Manual crank handle descent	Safety Net	Instant stop upon encountering obstacles

▩

Design & Configurations

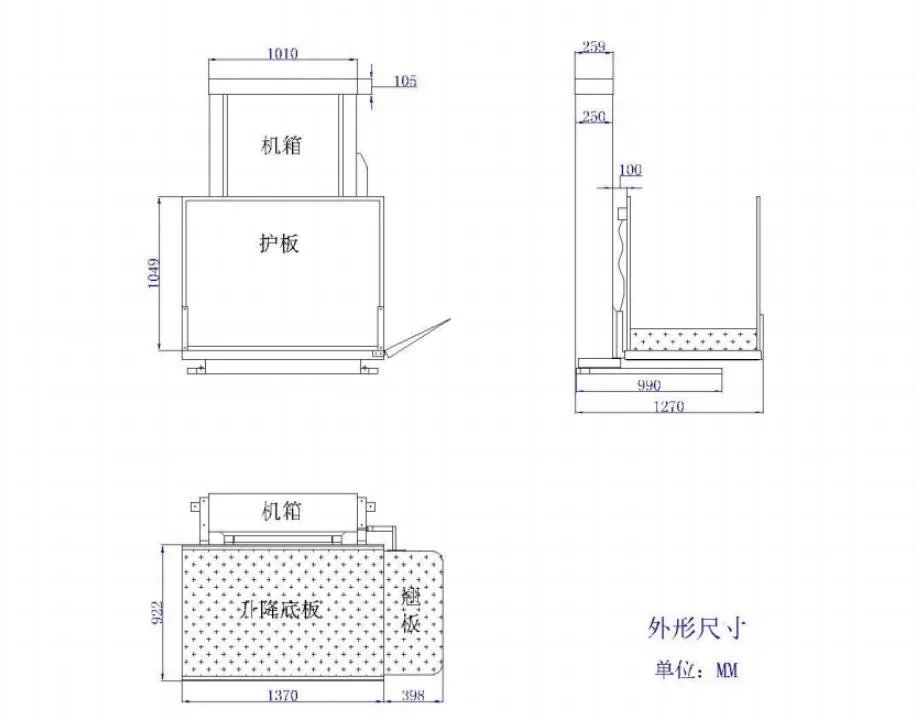

Platform Dimensions:

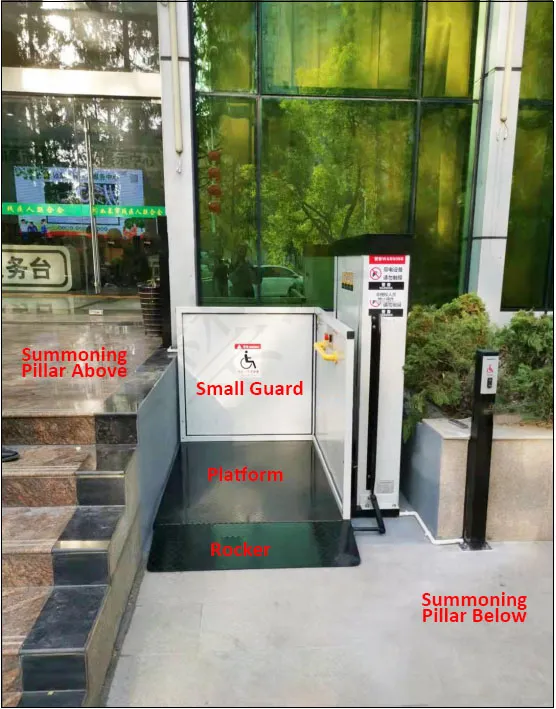

90° Configuration

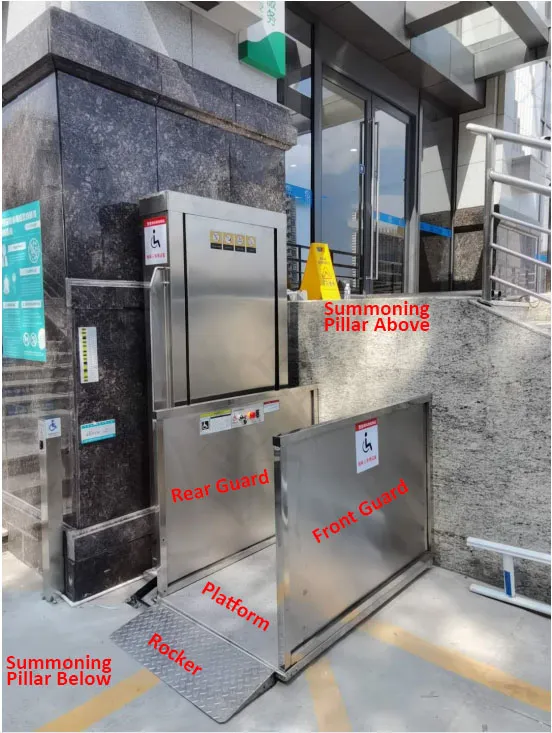

180° Configuration

✔

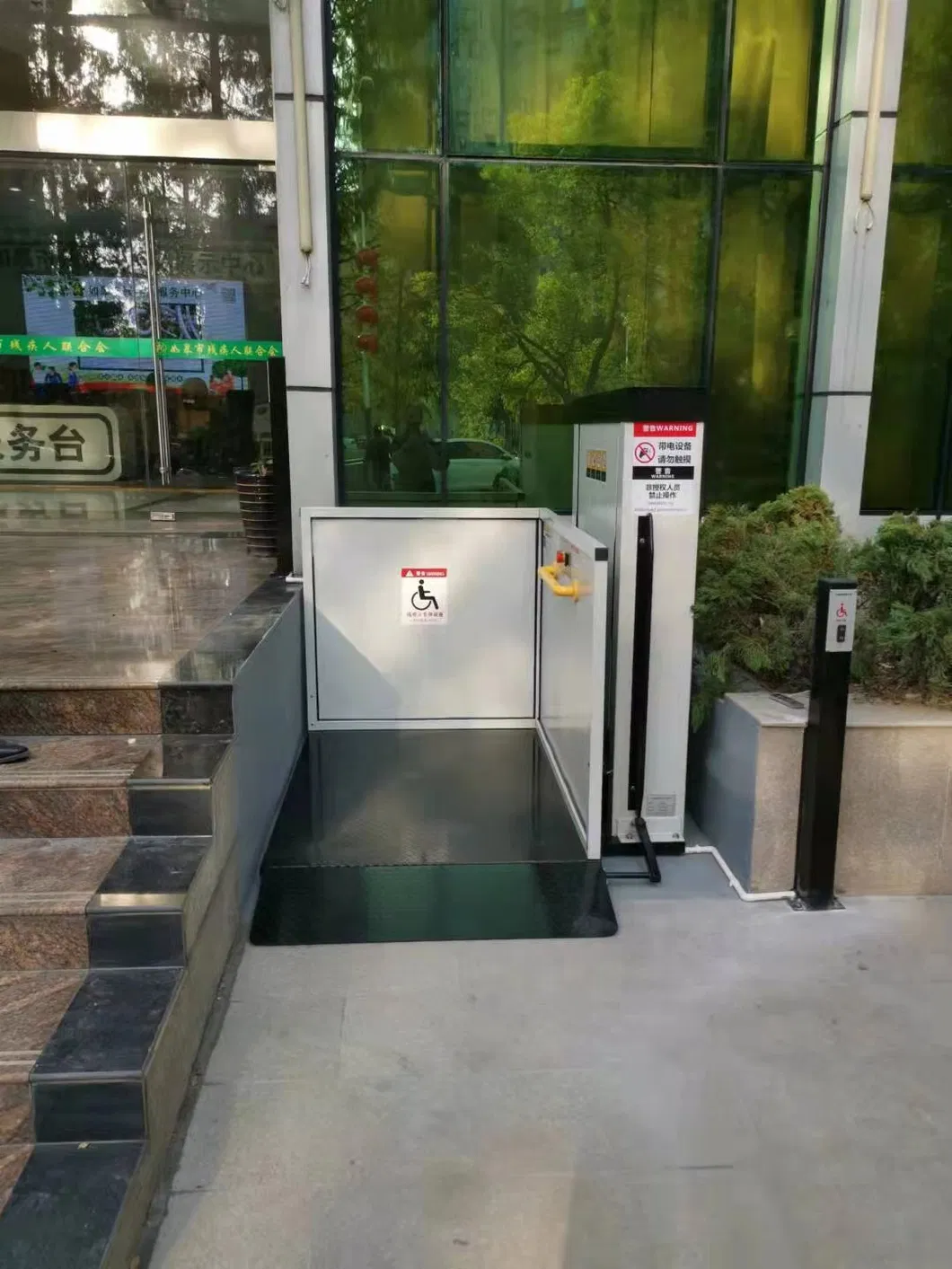

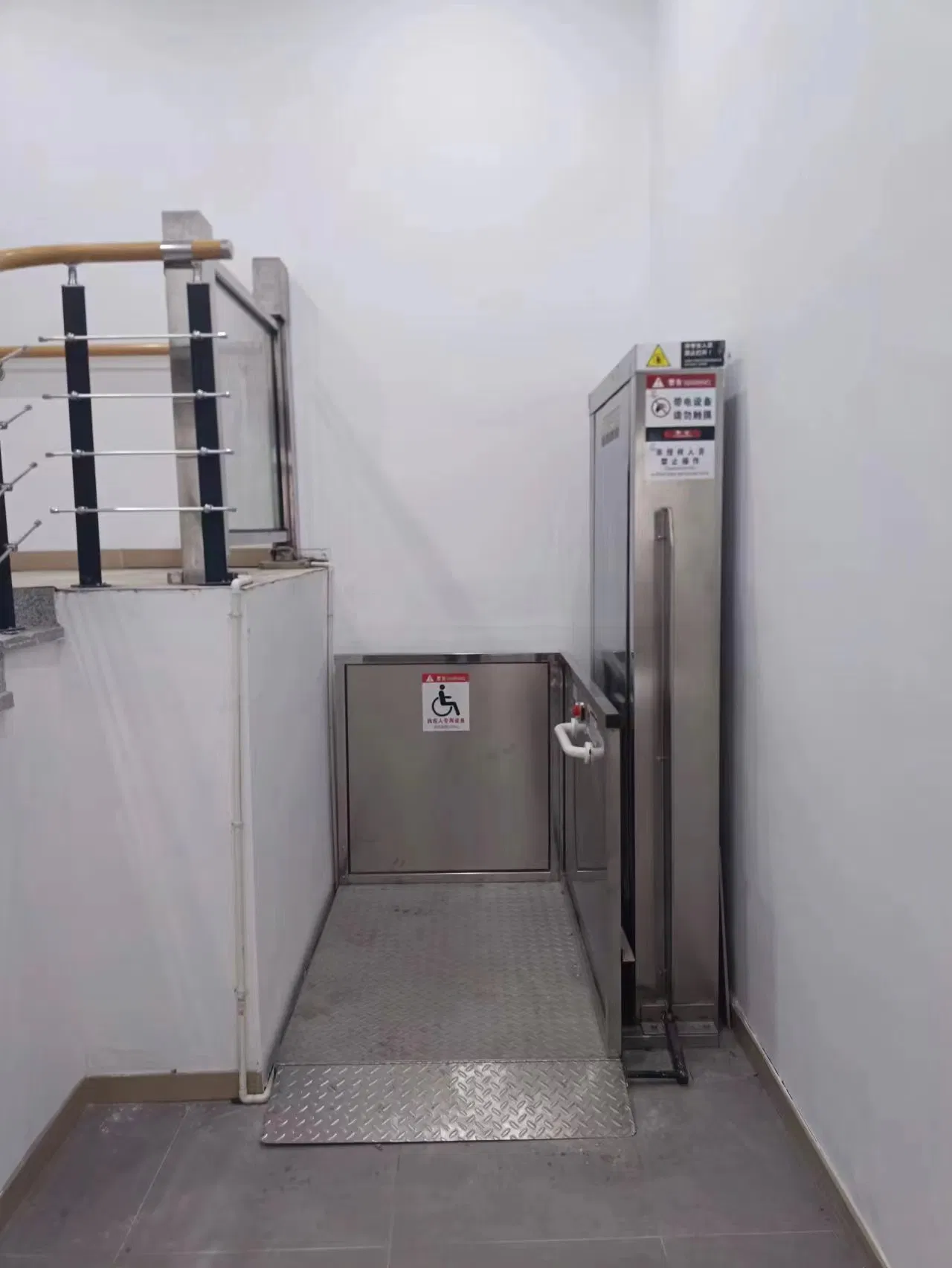

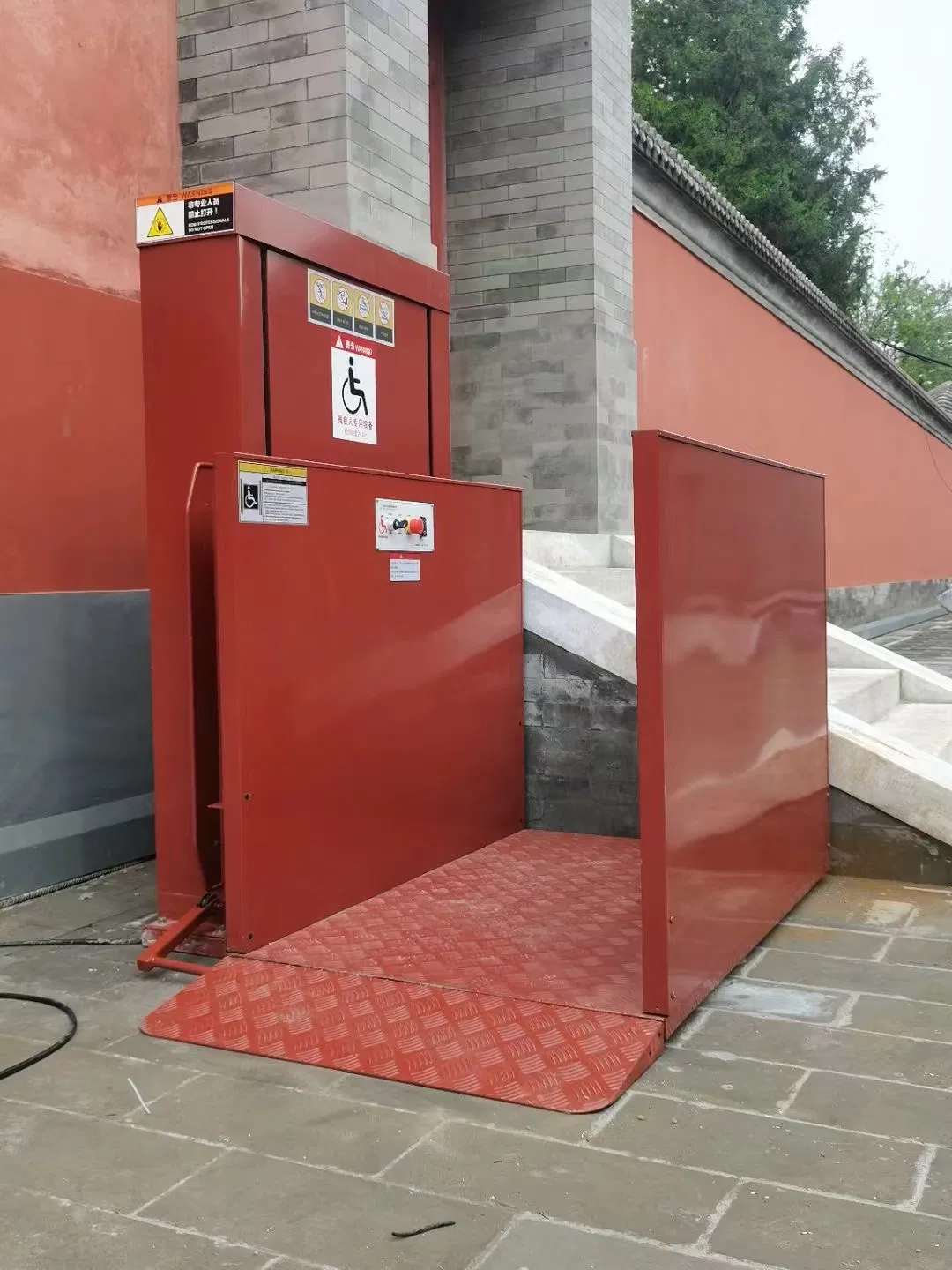

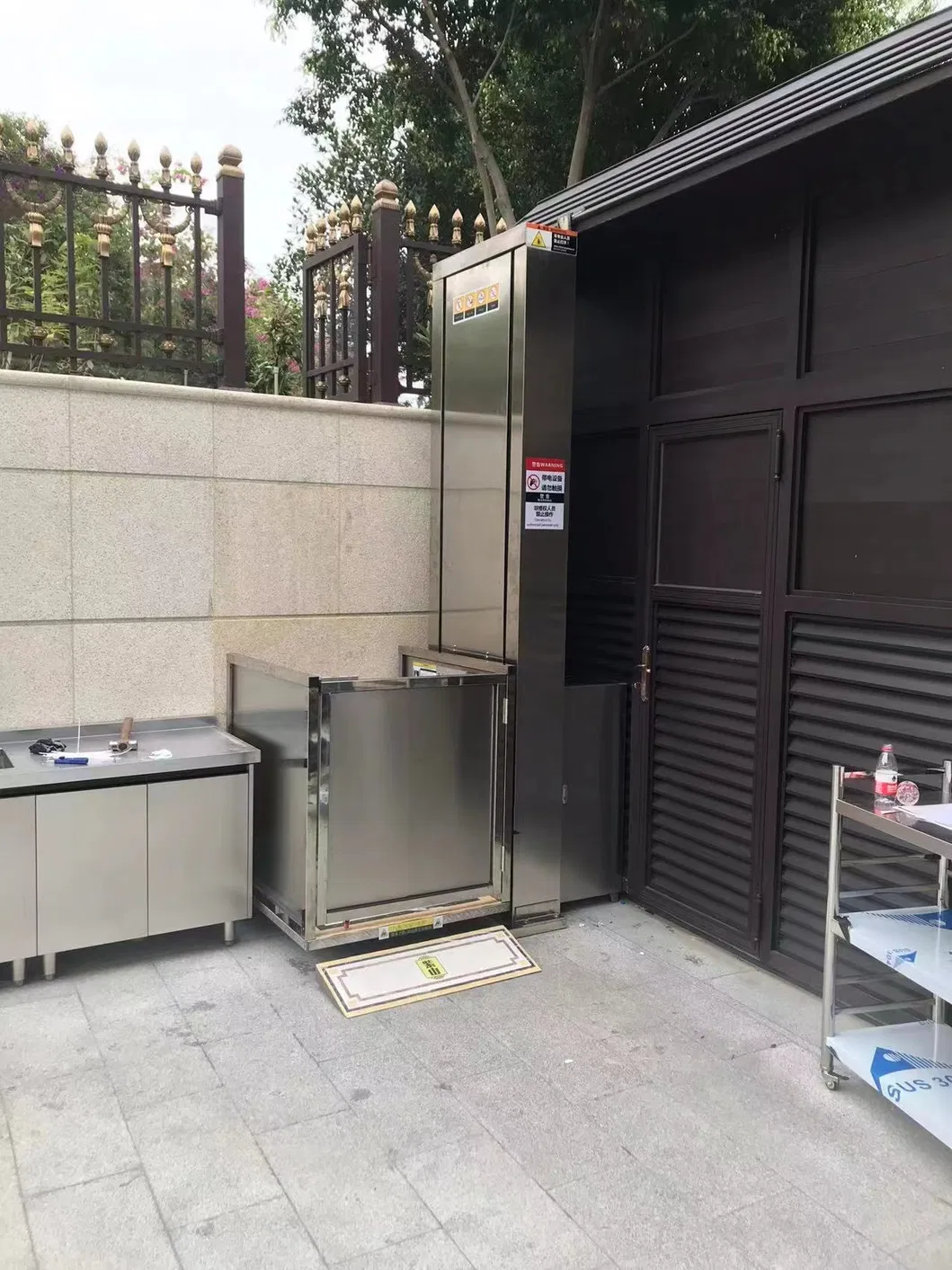

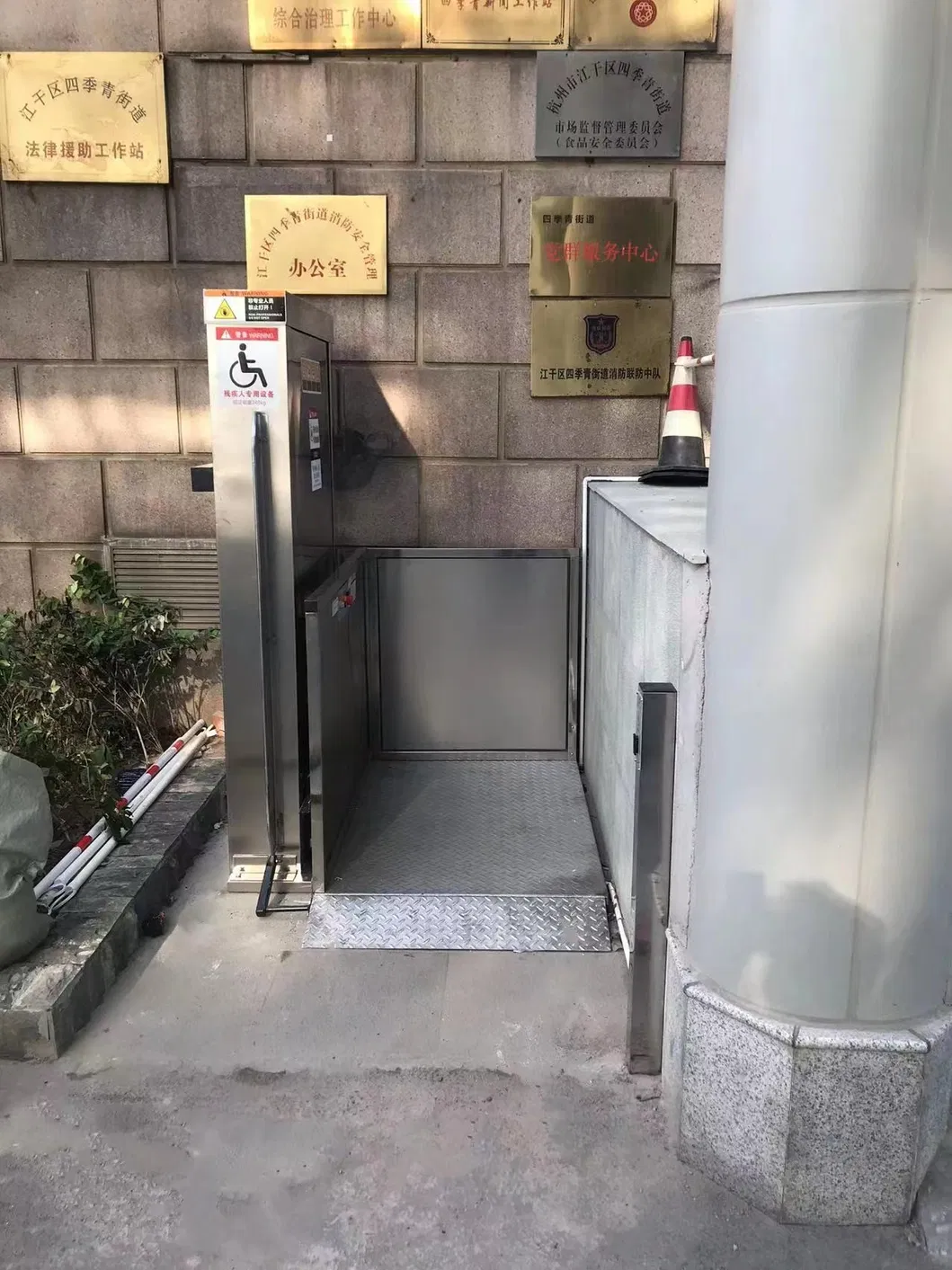

Reference Cases

C

Quality & Logistics

Global Partners

Package and Transportation

W

Service & Warranty

1. User-friendly English manual for machine using and maintenance.

2. One year warranty for the whole machine without man-made faults.

3. Free replacement parts provided for non-human factor problems during warranty time.

4. 24-hours technical support via email, telephone, or online communication.

5. Rapid response within 2 hours for any inquiries, including weekends and holidays.

?

Frequently Asked Questions

1. What is the maximum weight capacity of the L150 lift?

The maximum load capacity is 250kg, conforming to European and American standards for wheelchair lifts.

2. Is a foundation pit required for installation?

No foundation pit is required. It can be directly fixed on C30 concrete level ground with a thickness of at least 200mm.

3. Can this lift be used in outdoor environments?

Yes, the lift is designed for both indoor and outdoor use and can operate in temperatures ranging from -20°C to 60°C.

4. What safety features are included?

Standard safety features include a safety rocker (to prevent sliding), emergency stop button, manual emergency descent handle, and a safety net that stops the platform if an obstacle is detected.

5. What is the maximum lift height available?

The L150 model supports a maximum lifting height of up to 6000mm.

6. What power supply is required?

The standard power requirement is 220V/50Hz, with a 24V/DC control supply voltage for operation.
