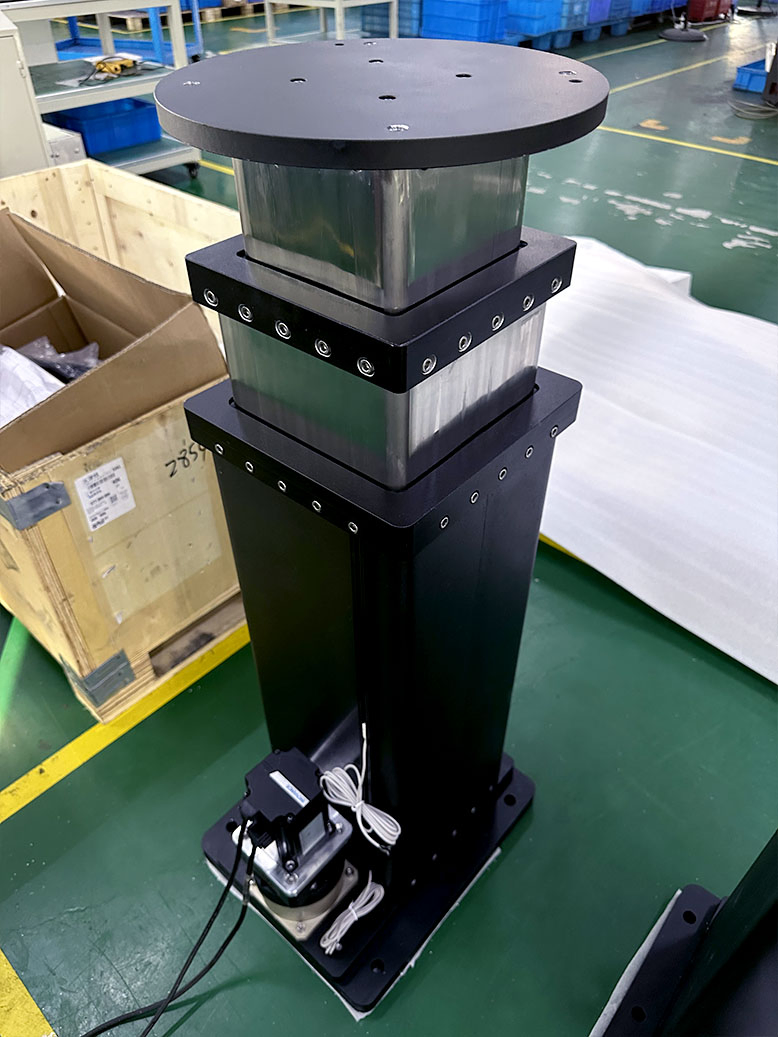

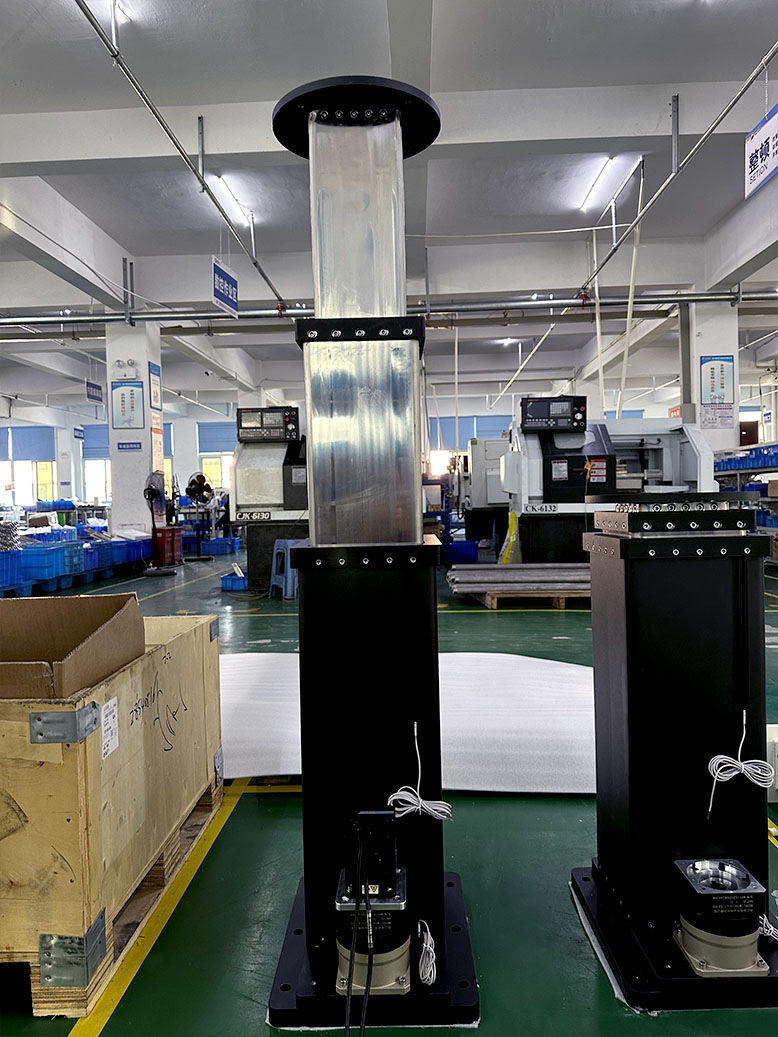

Htg3-24 Ball/Trapezoidal Screw Robot Lift, Heavy Duty

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
HTG3-24
Payload Capacity
200 kg
Reach
2000 mm
Maximum Load
4000
Maximum Speed
200mm/S
Installation Dimensions
Stroke +350mm
Temperature
-45-+75
Certification
ISO, CE
Control Mode
Continuous Path Control
Drive Mode
Mechanical
Application
Welding
Warranty
12 Months

Product Features

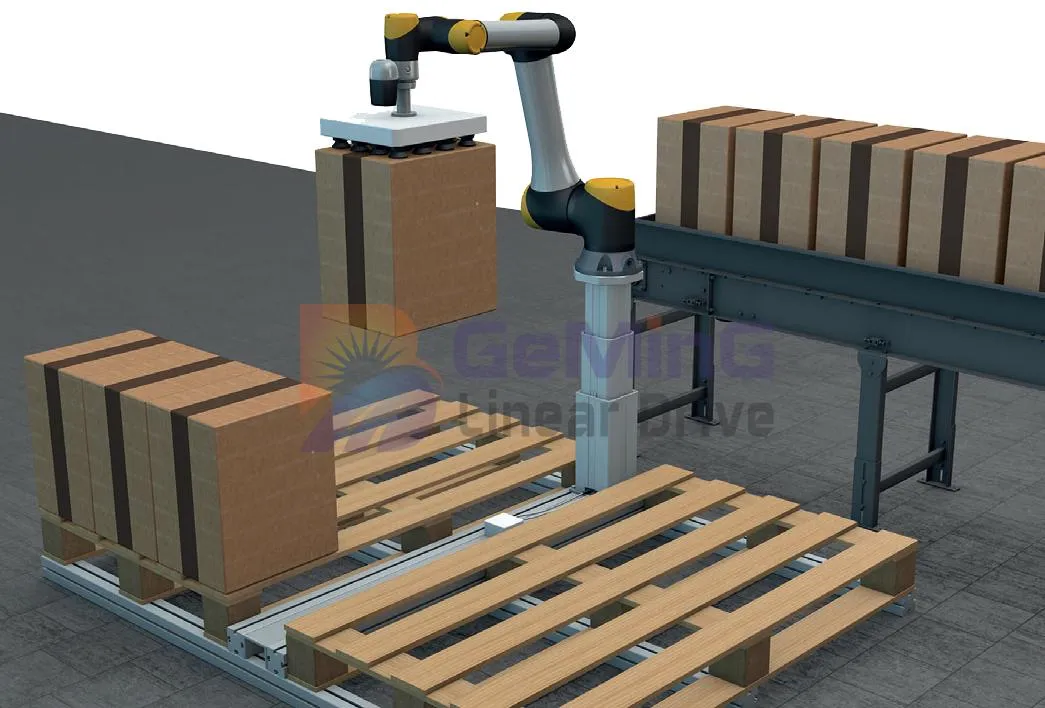

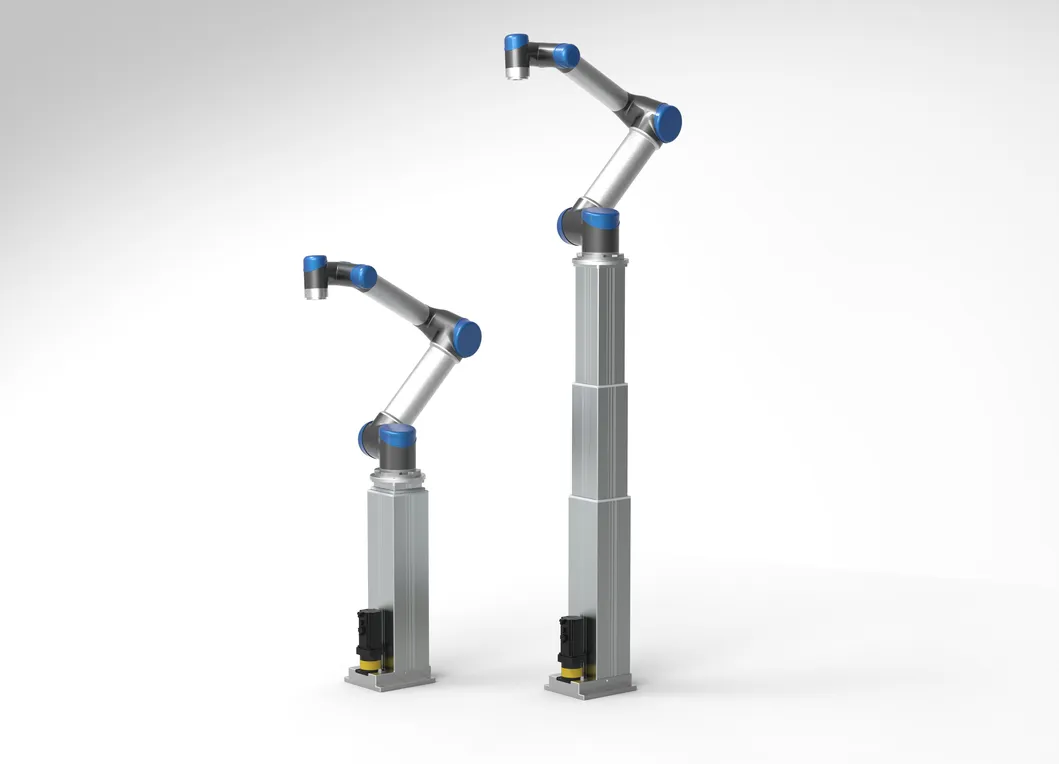

Robots are one of the keys to the Industrial 4.0 revolution. They are increasingly being used in new applications to perform repetitive or dangerous tasks, increasing productivity and improving working conditions. With the development of collaborative robots, various new industries can also benefit from them. Robots have limited working range. Robotic 7th axis solutions can effectively extend the robot's reach and significantly improve productivity in many cases with repetitive tasks. Our additional horizontal linear module can reposition the robot's base during the work cycle, increasing the operating range by 7 times. We offer a range of linear motion extension axes (both vertical and horizontal) to easily expand your robot's working range.

Model Selection

Htg3-24 Ball/Trapezoidal Screw Robot Lift
• Model Selection

Our professional sales representatives and technical team will choose the right model and transmission solutions for your usage depending on your specific parameters.

• Drawing Request

If you need more product parameters, catalogues, CAD or 3D drawings, please get in touch.

• On Your Need

We can modify standard products or customize them to meet your specific needs.

P

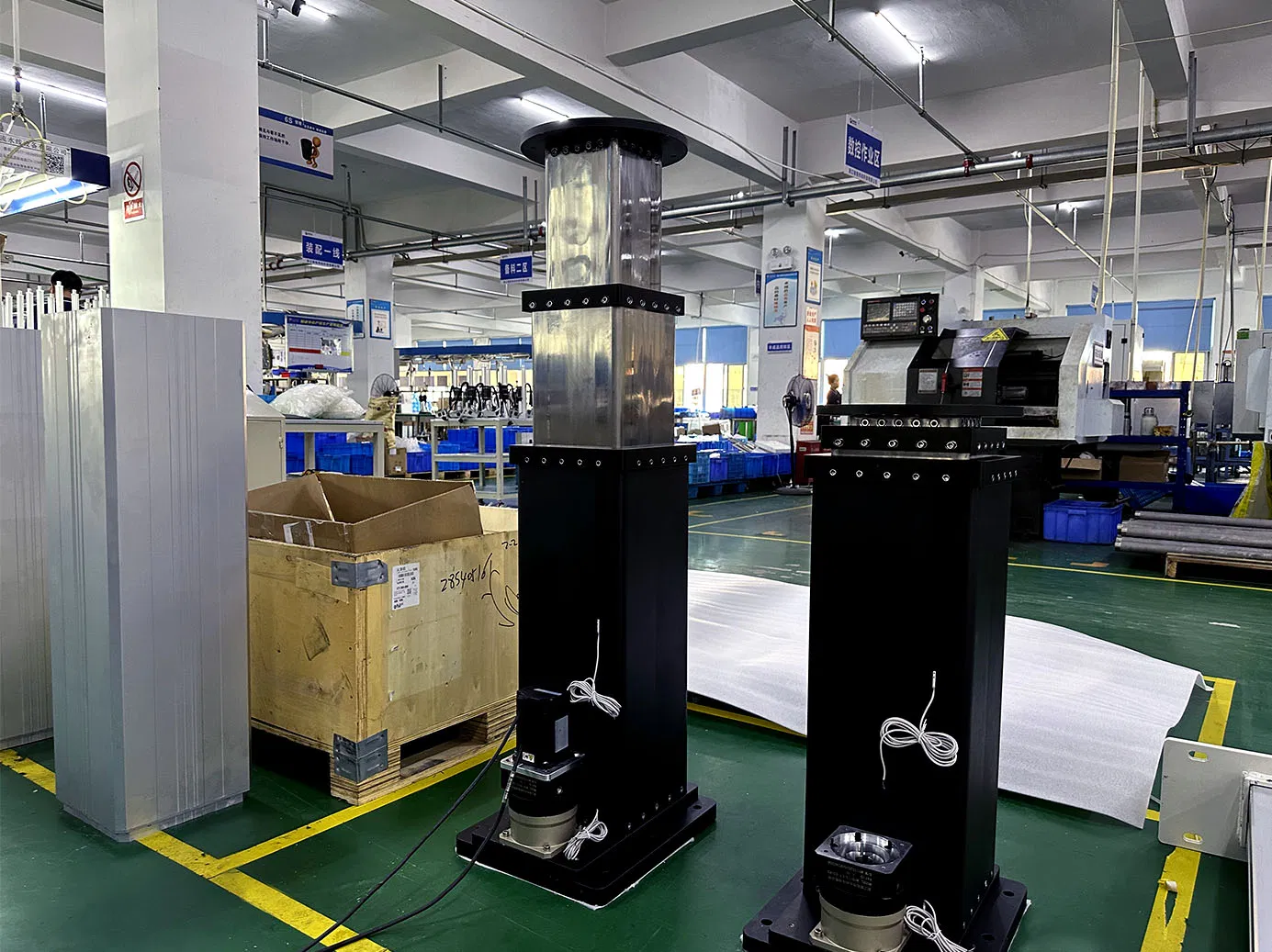

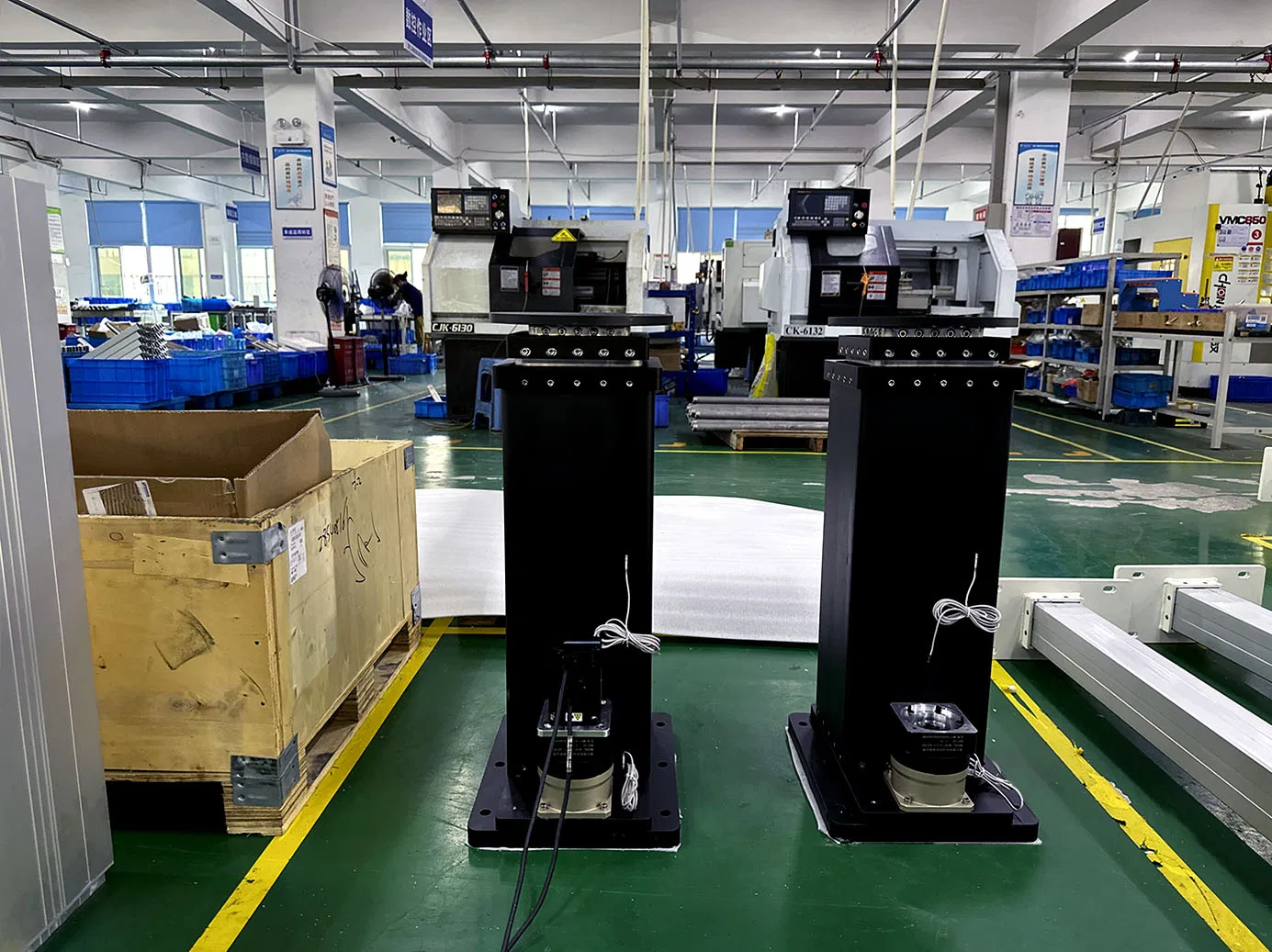

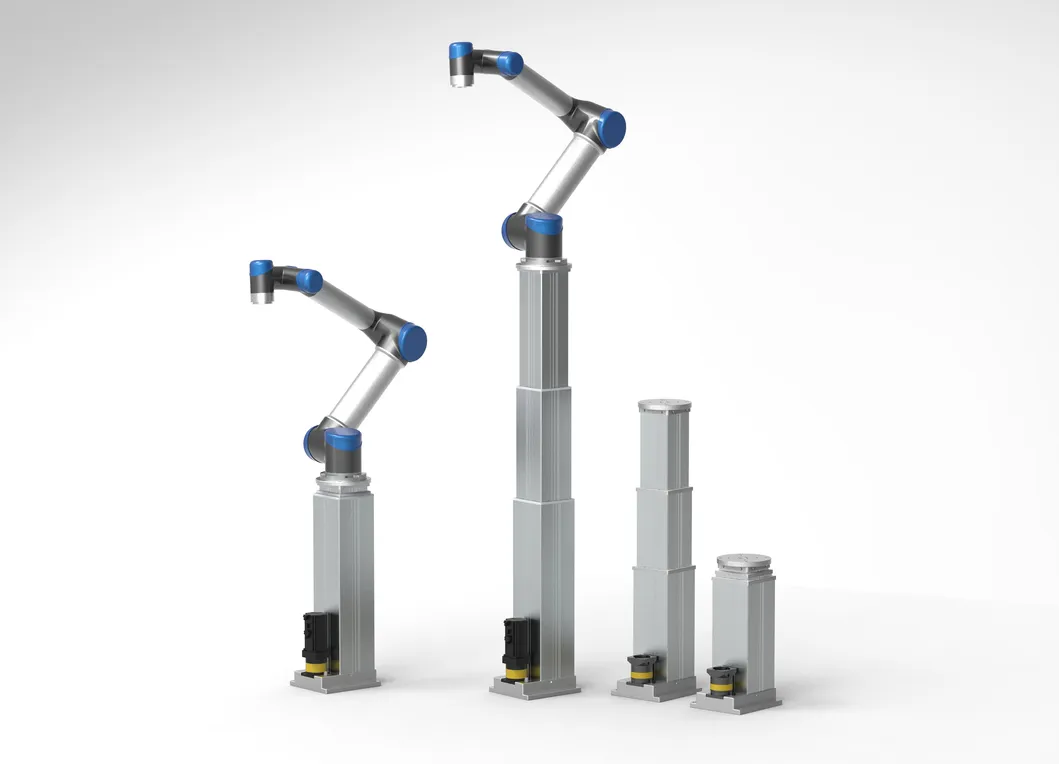

Detailed Photos

Functional Specifications

Voltage48V DC, 220V AC
Motor optionsDC servo motor, AC servo motor
Maximum thrust (pull force)5,000N / 3,000N
Maximum speed under load100 mm / s (load 2,000N)
Minimum installation sizeStroke /2 + 350mm
Dynamic lateral moment1,000Nm
Static lateral moment1,800Nm
ColorAluminum color, silver gray
Noise Level55~68 DB
Adaptable temperature range-35 ° C ~ + 75 ° C
Screw selectionBall screw, trapezoidal screw
Safety certificateComply with ISO9001-2008, CE and RoHS specifications
D

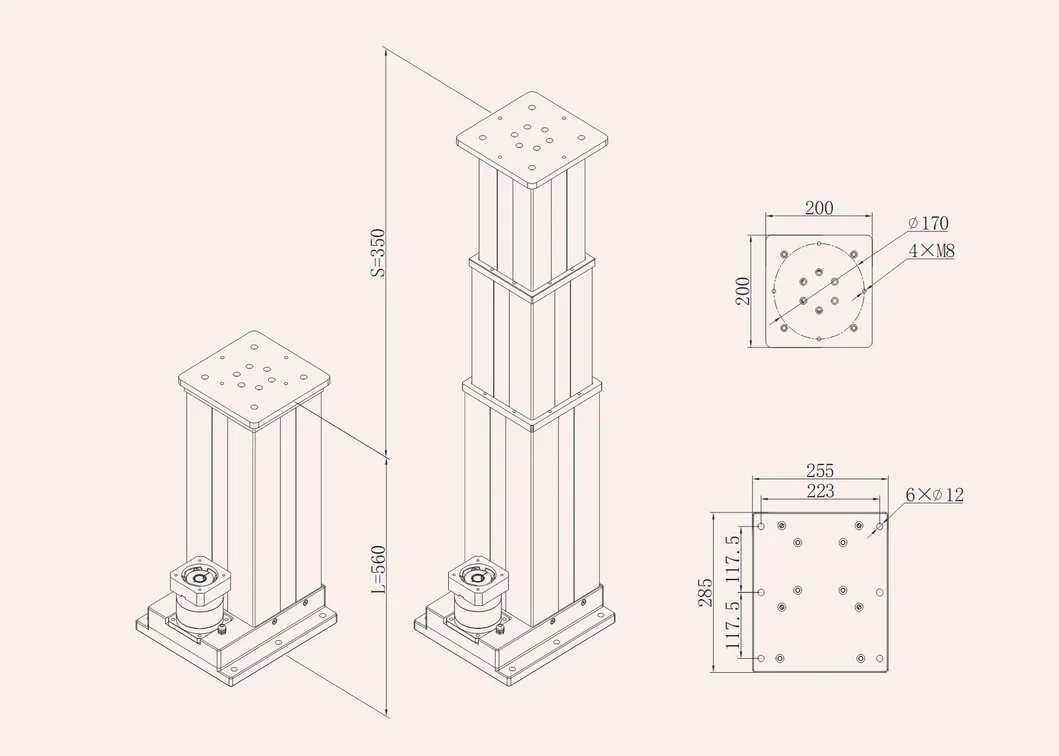

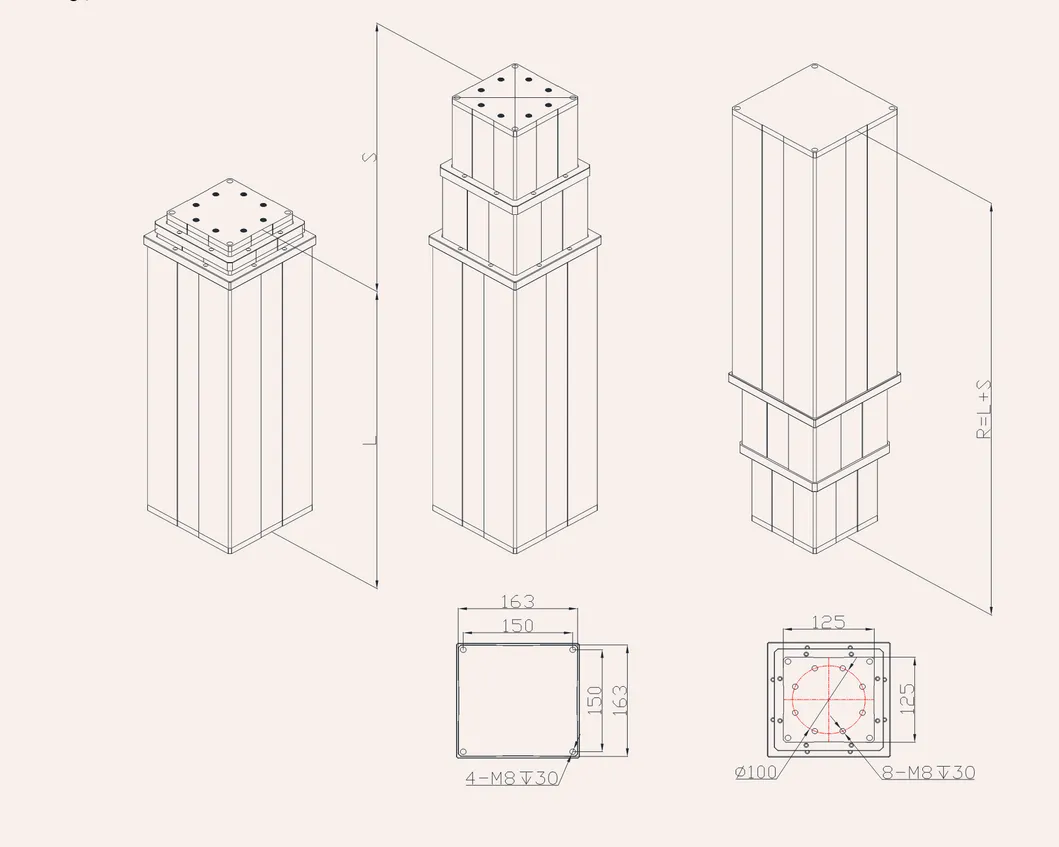

Engineering Drawings

A

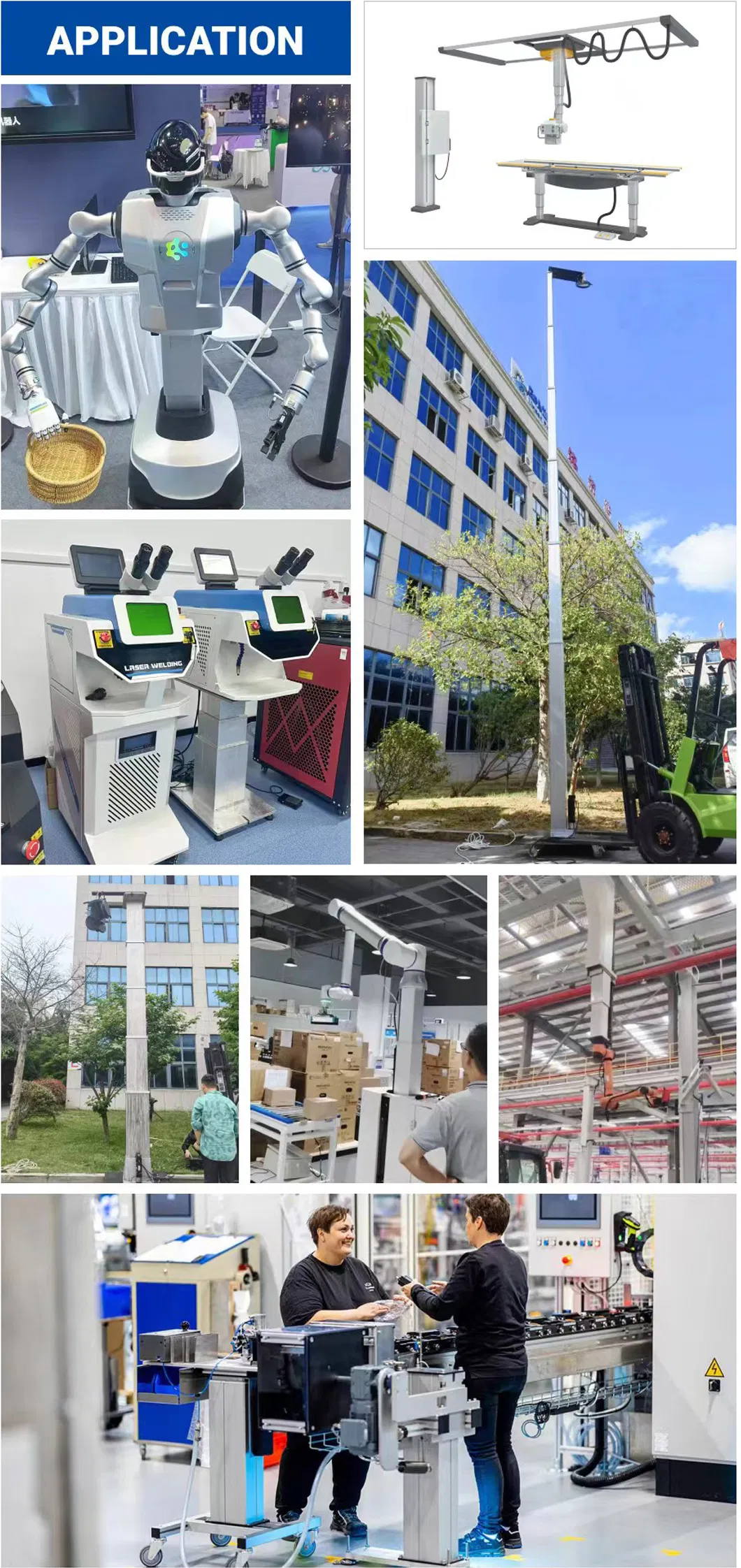

Applications

Applications Grid
C

Company Profile

Factory Overview

Founded in 2011, the company specializes in R&D and manufacturing linear motion systems and has become a leading manufacturer of electric linear actuators, electric lifting column control systems and related technologies. We currently operate multiple manufacturing plants and sales agents, providing global engineering and sales support. Our multinational team works together to achieve the common goal of providing high-quality, long-life linear motion solutions and the best customer service to our partners.

?

Frequently Asked Questions

What are your main products?
We currently produce lifting columns, medical lifting columns, furniture lifting columns, ergonomic lifting tables, linear actuators, industrial linear actuators, micro actuators, six-axis robotic arms, etc.
How to choose a suitable lifting mechanism?
Please provide detailed specifications such as voltage, speed, stroke, initial height, maximum height, motor working mode, required life and noise level. We can then recommend a suitable mechanism based on your requirements.
Do you have customized services for your standards?
Yes, we can customize products according to your requirements, including installation size/shape, motor selection, stroke, voltage, and various special requests.
Do you have personalized design services for products?
Yes, we are willing to design actuators, lifting mechanisms, and control systems for customers. While simple customization is often free, complex designs may involve mold development costs.
How long is your delivery time?
Regular standard products typically take 6-20 days. Customized products take longer. We are flexible and delivery times depend on the specific order details.
How to choose a suitable linear actuator?
If you have pictures or drawings of linear actuators, or detailed specifications like load capacity and installation size, we can recommend the best model for your needs.
