Htd6 Heavy Duty Robot Lift with 250 Nm Dynamic Moment for Industrial Automation and Robotics Solutions

📋 Overview & Basic Info

Model NO.	HTD6	Application	Workshop, Shipboard, Warehouse, Building Cranes
Lift Mechanism	Telescoping Lift	Carrying Capacity	Special Weight Level
Driven Type	DC	Feature	Explosion-Proof
Certification	CE, RoHS	Maximum Load	6000N
Maximum Speed	5-100mm/S	Temperature	-45°C to +75°C

🚀 Product Features

HTD6 is a high-performance lifting column product designed for professional environments. It is specially suitable for medical and industrial working environments, such as hospital beds, home care beds, diagnosis tables, and height-adjustable workstations. It utilizes a three-section outer tube to provide stable movement, achieving a compact installation size with longer stroke options.

⚙️ Model Selection & Customization

Professional Support: Our technical team assists in choosing the right model and transmission solutions based on your specific parameters.

Technical Assets: Catalogues, CAD, and 3D drawings are available upon request for precise engineering integration.

Custom Solutions: Standard products can be modified or fully customized to meet unique requirements for stroke, load, and dimensions.

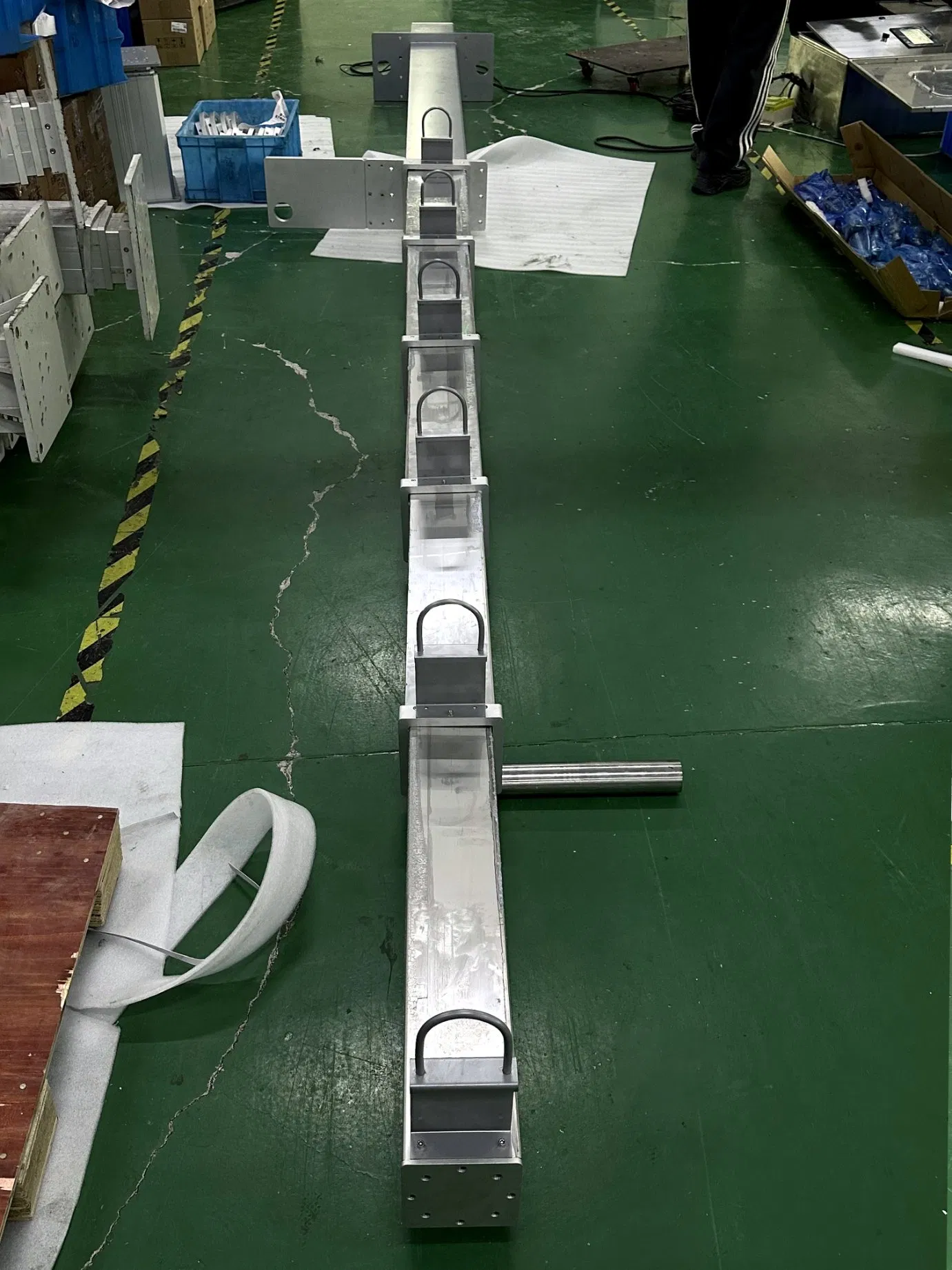

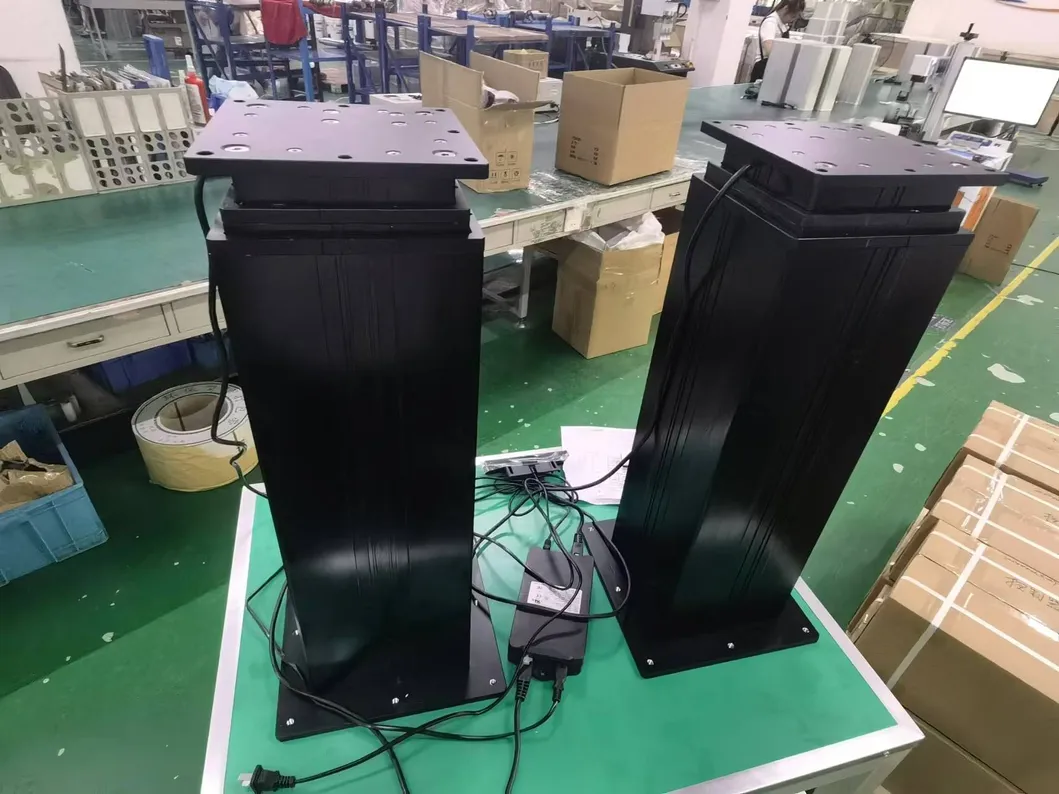

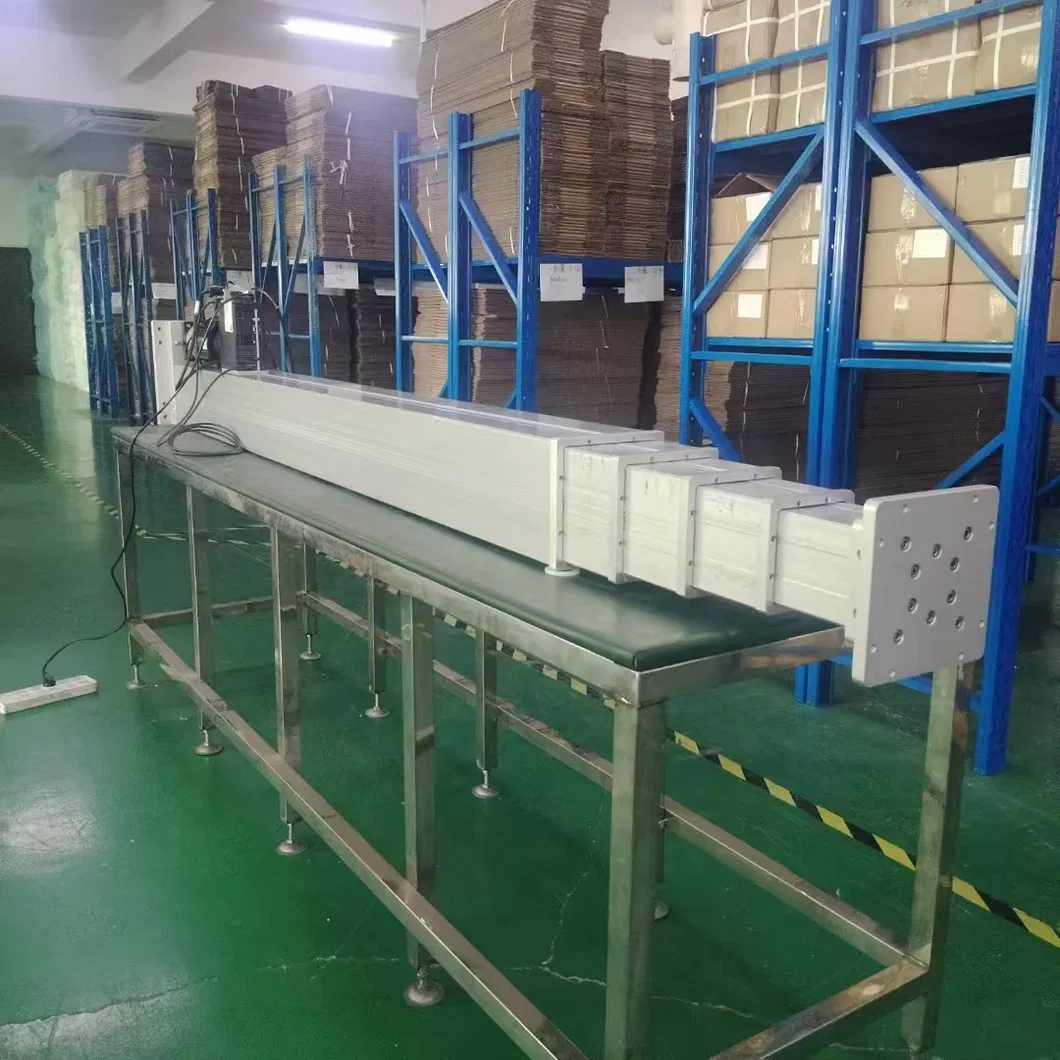

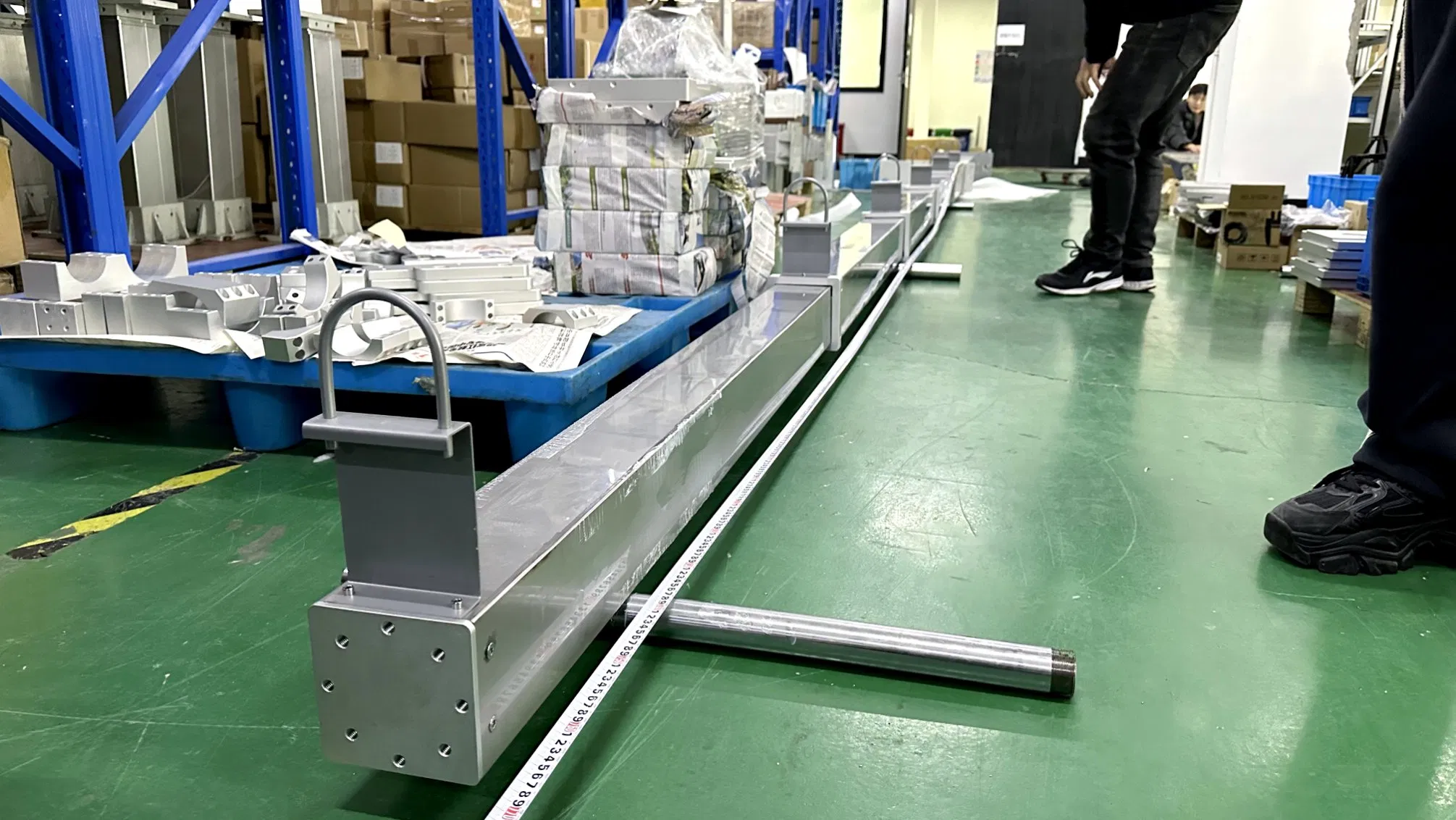

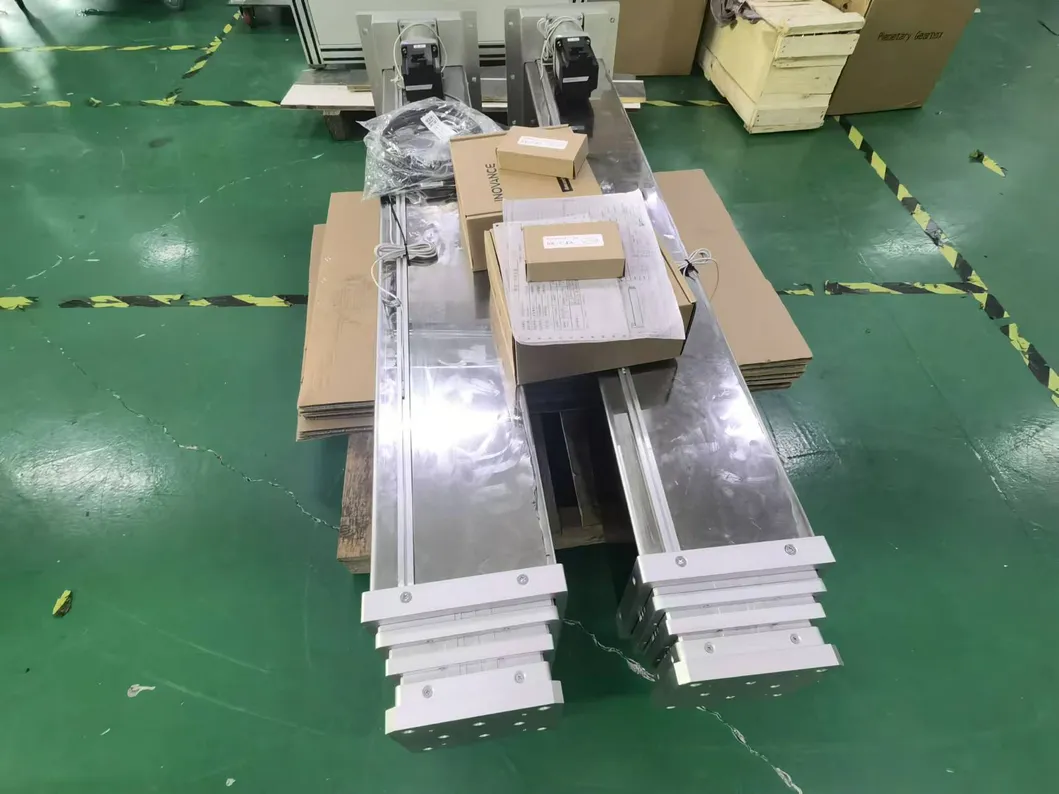

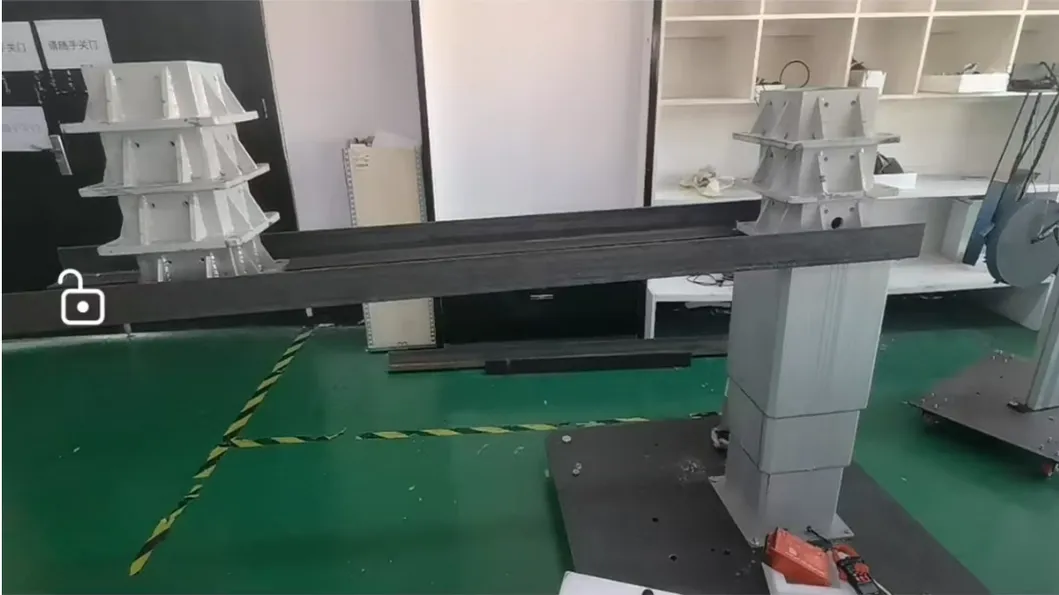

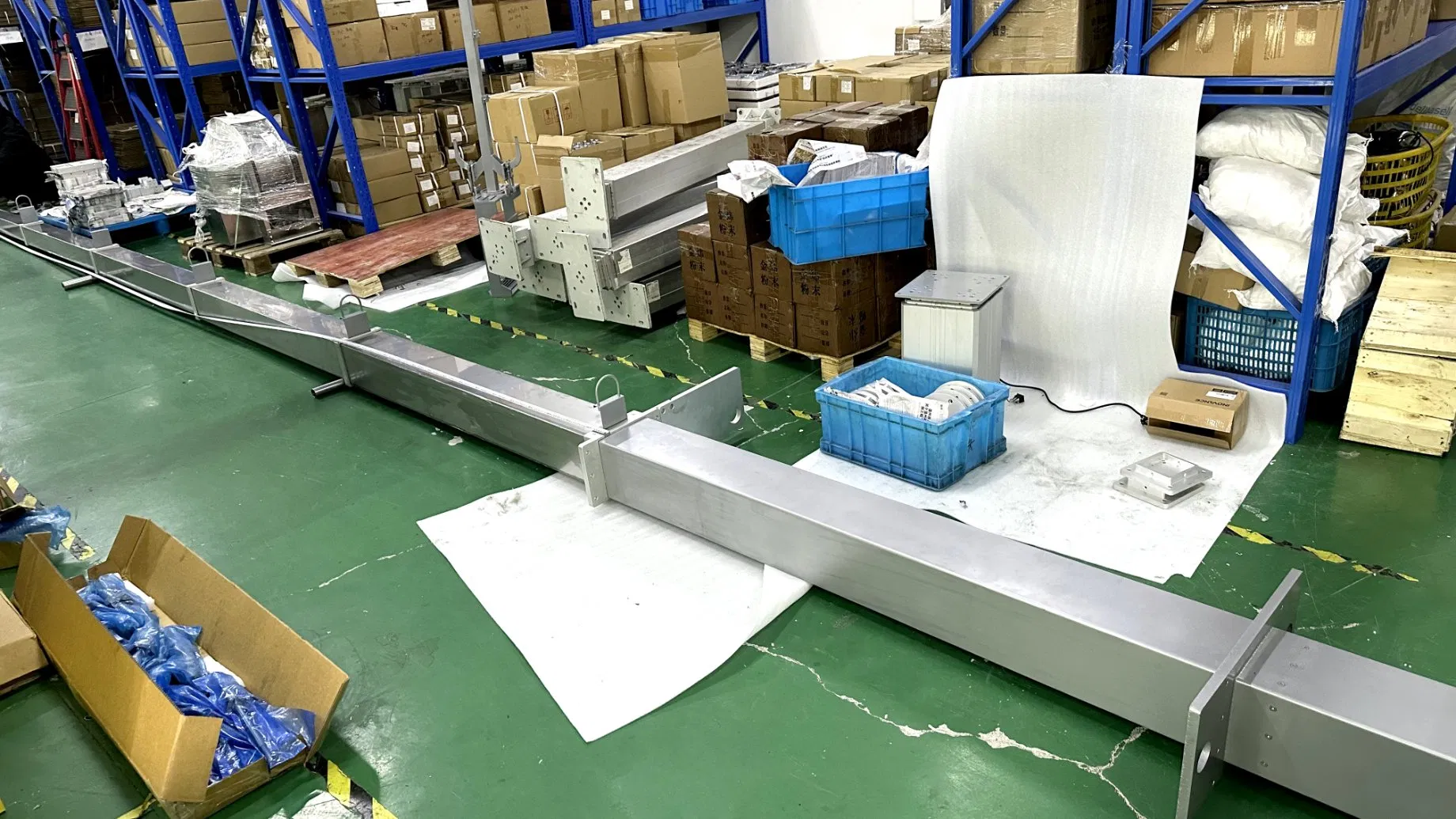

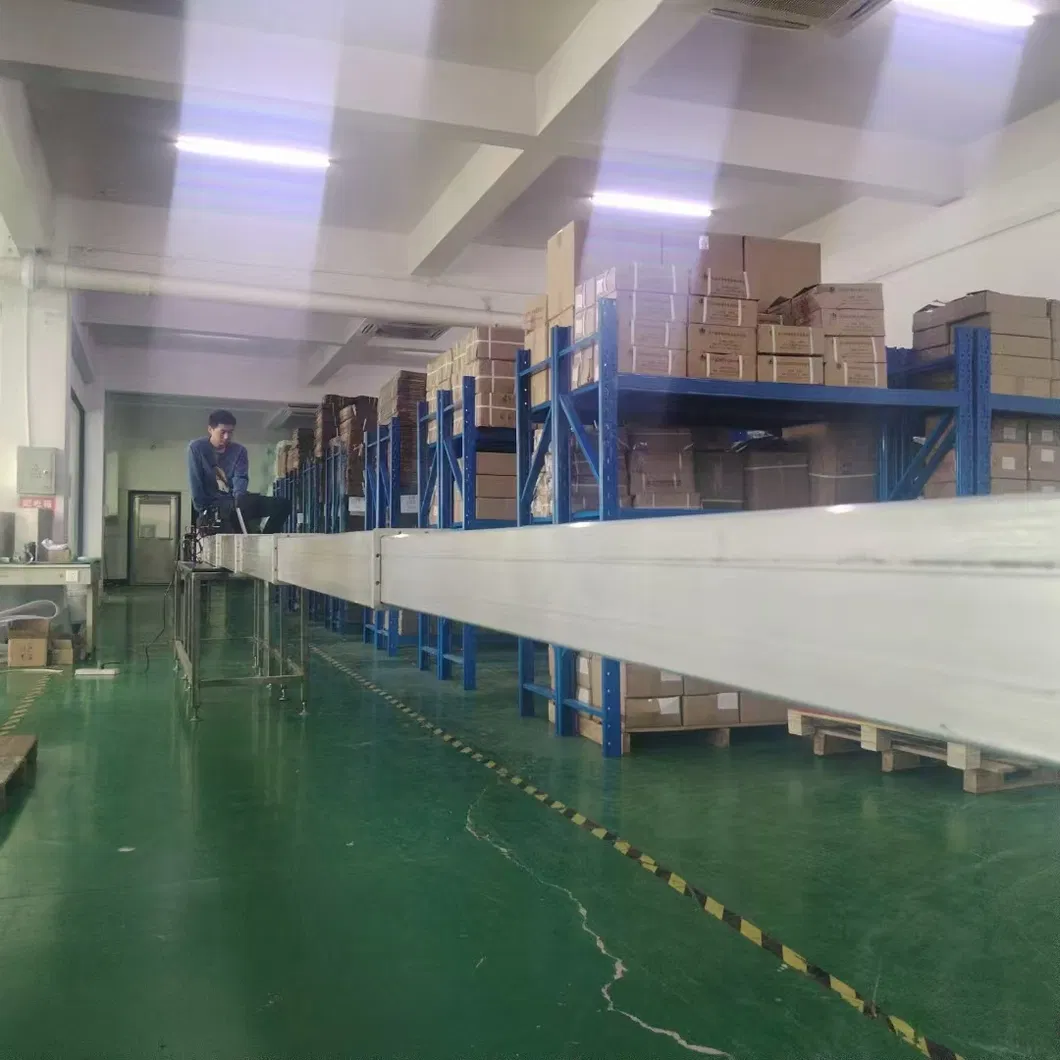

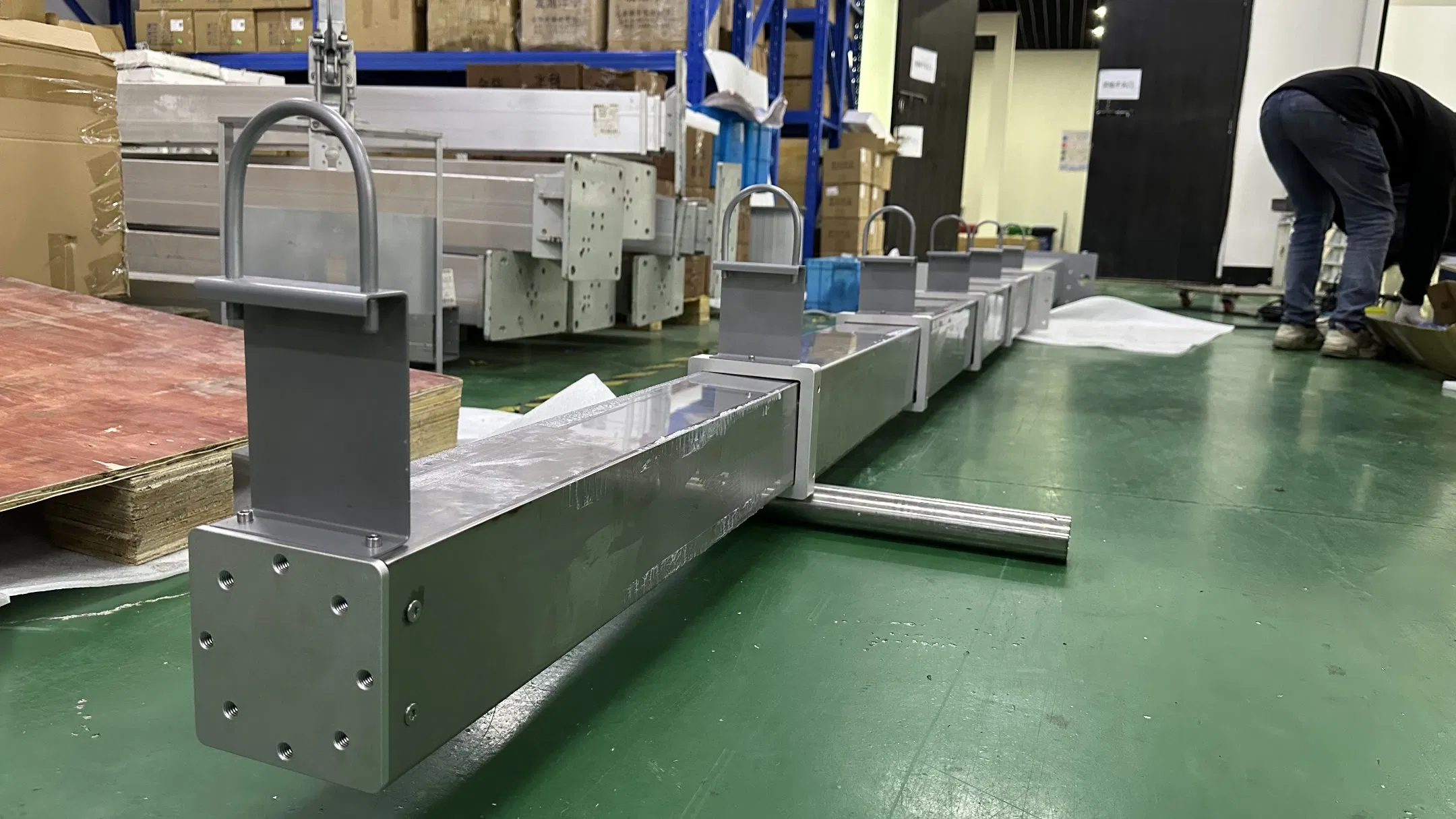

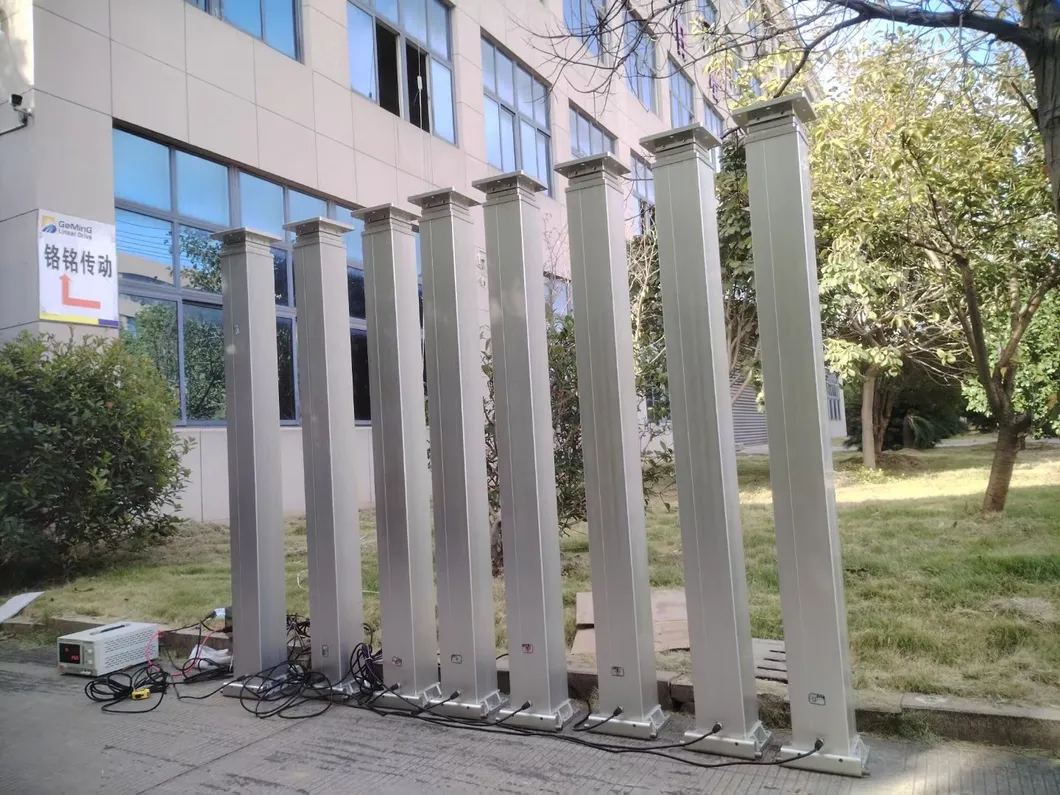

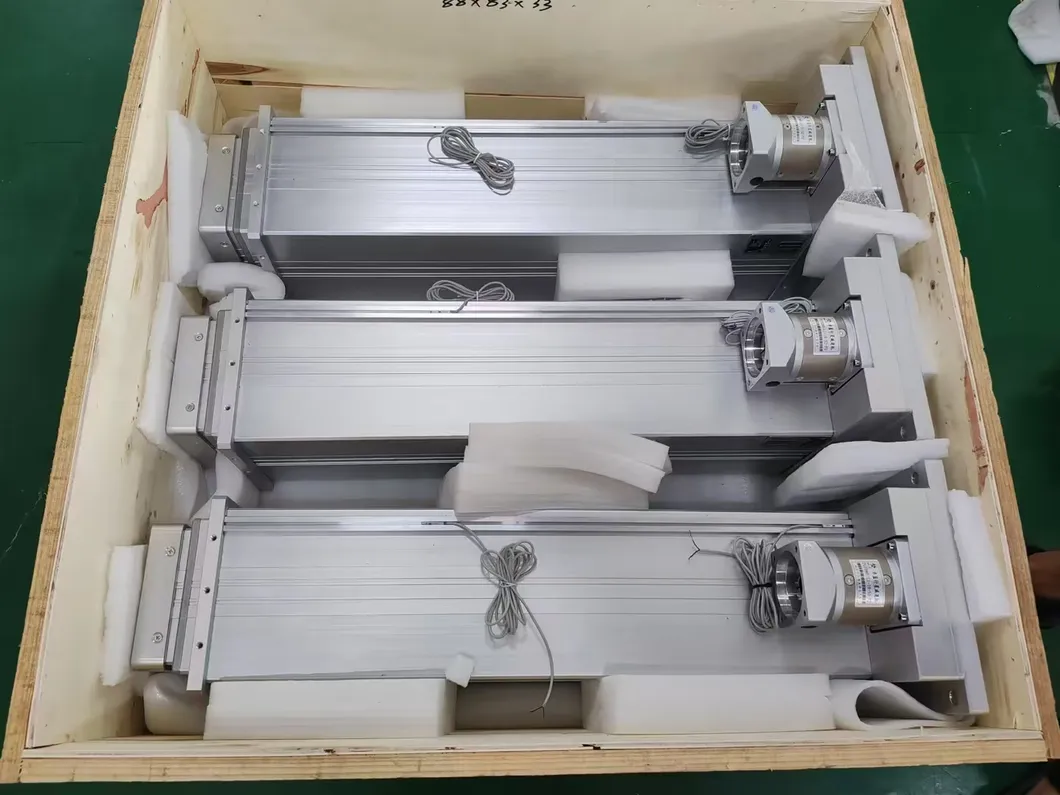

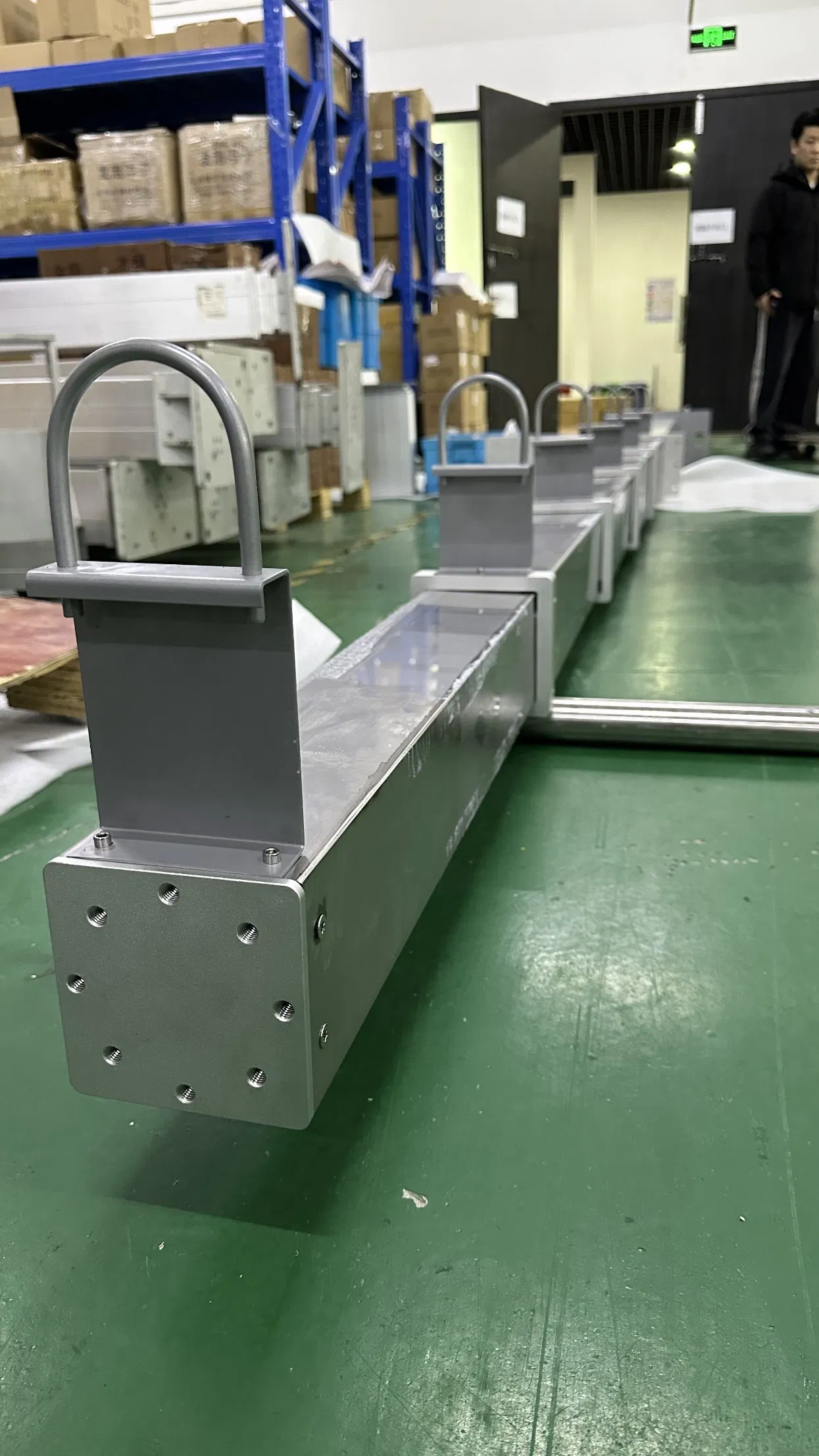

📷 Detailed Product Photos

📊 Technical Specifications

Functional Overview
Voltage	12, 24, 48V DC, 220V AC
Motor Options	DC Servo, AC Servo Motor
Max Thrust/Pull	6,000N / 4,000N
Max Speed (Load)	5-100 mm/s
Min Installation Size	Stroke / 2 + 200mm
Lateral Moment	Dynamic: 1,000Nm / Static: 1,800Nm
Noise Level	48~52 dB
Screw Selection	Ball screw, Trapezoidal screw
Safety Certs	ISO9001, CE, RoHS

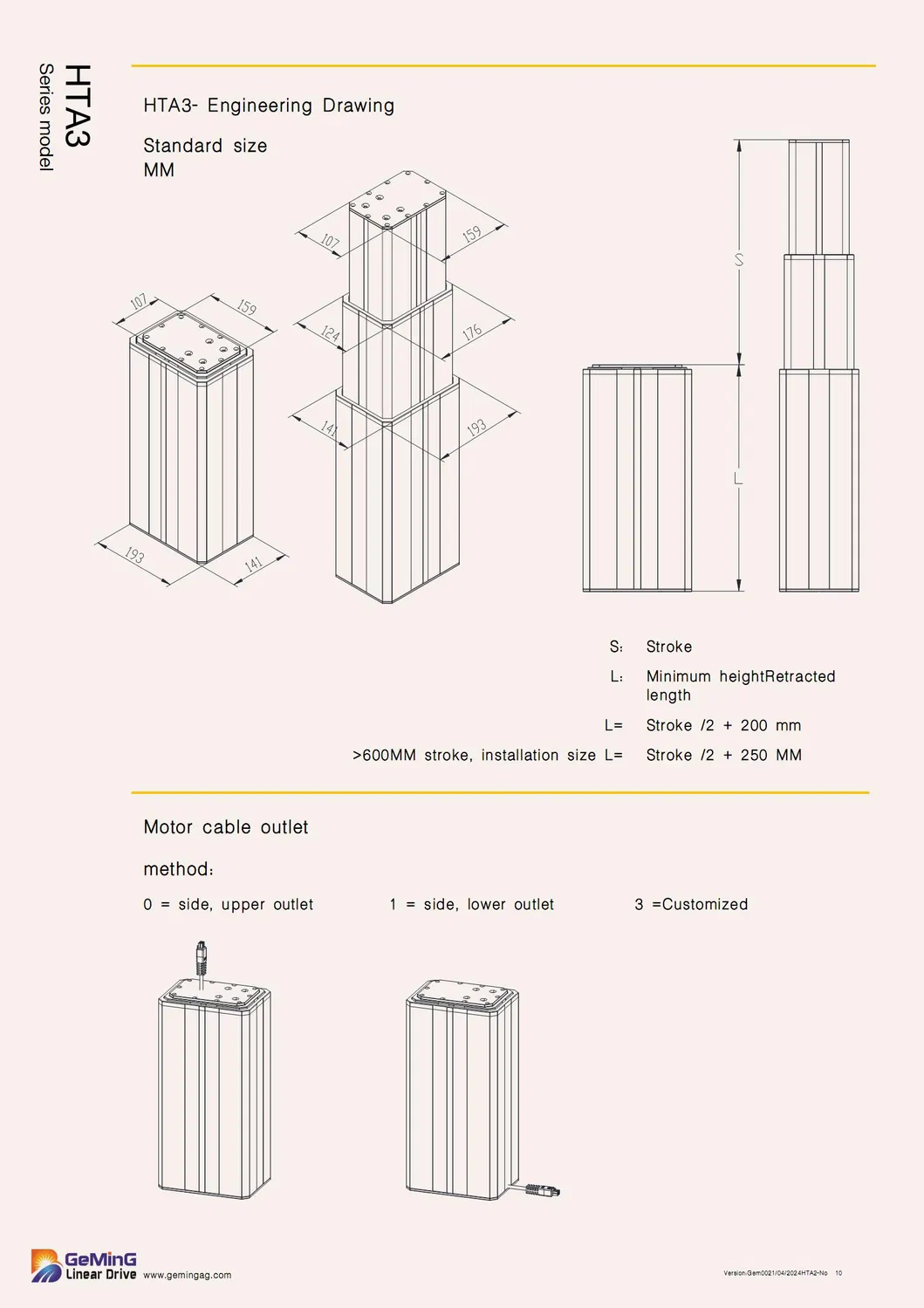

📐 Engineering Drawings

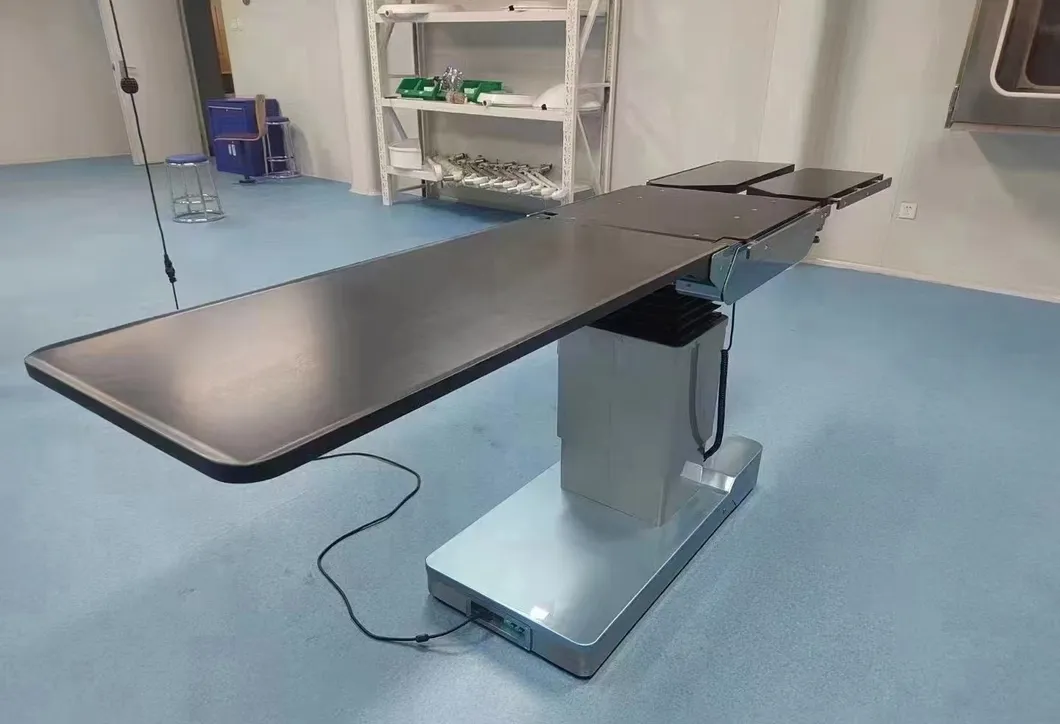

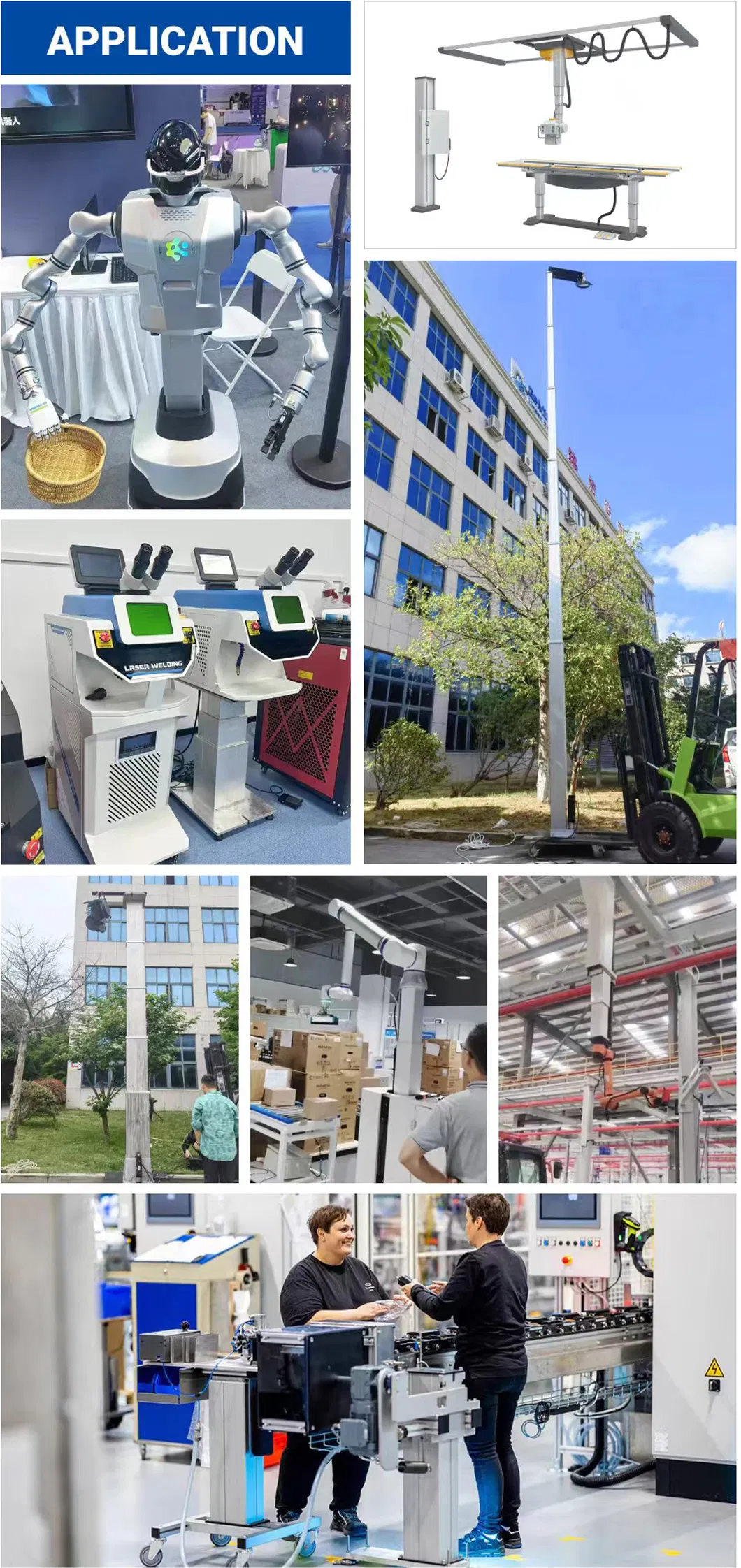

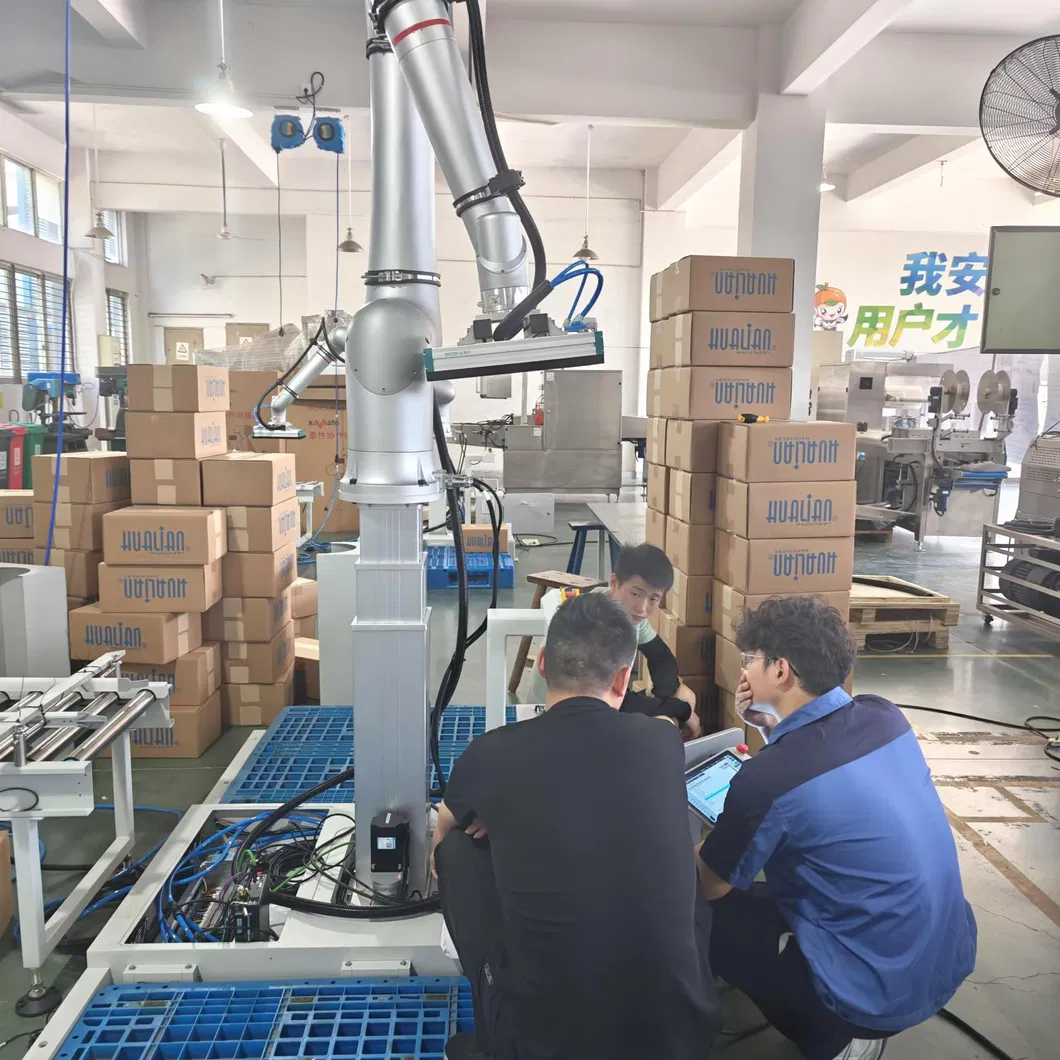

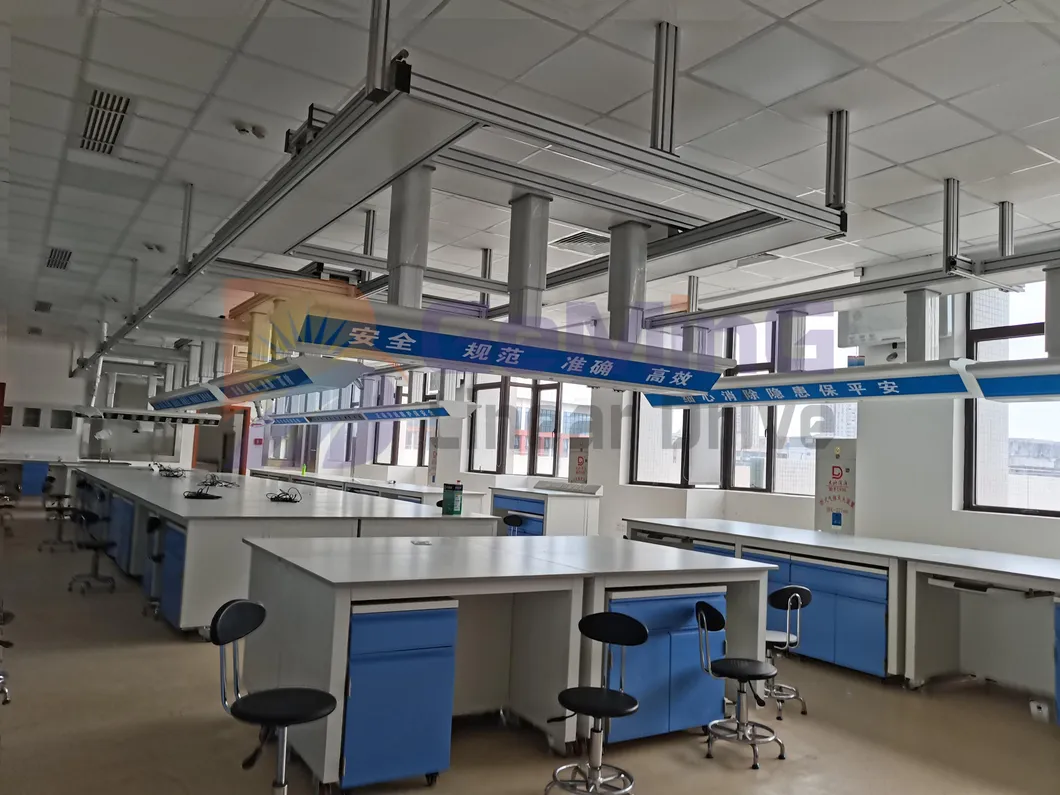

🛠️ Industrial Applications

🏭 Manufacturing Excellence

Our facility specializes in R&D and manufacturing linear motion systems, leading the way in electric linear actuators and lifting column control systems. With multiple manufacturing plants and sales agents, we provide global engineering support. Our goal is to provide high-quality, long-life linear motion solutions through teamwork and technical innovation.

❓ Frequently Asked Questions

Q: What are your main products?

A: We specialize in lifting columns (medical, furniture, ergonomic), linear actuators (industrial and micro), and advanced motion control systems.

Q: How to choose a suitable lifting mechanism?

A: Please provide parameters such as voltage, speed, stroke, installation height, load capacity, and noise requirements. Drawings or photos of your application are also very helpful.

Q: Do you offer customization for standard products?

A: Yes. We can customize dimensions, motor types, strokes, and voltages to perfectly match your technical needs.

Q: Are there personalized design services available?

A: Yes, we provide full design services for actuators, columns, and control systems. While complex mold development may incur costs, simple customizations are often free.

Q: What is the typical delivery time?

A: Standard products typically take 6-20 days. Customized solutions may take longer depending on the order complexity and specific requirements.

Q: Are the products certified for international use?

A: Yes, our products comply with ISO9001-2008, CE, and RoHS specifications, ensuring they meet global safety and quality standards.
