Accessible Hydraulic Driven Vertical Disabled Wheelchair Lift

Customization:	Available
Warranty:	12 Months Apart From Man-Made Faults
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Decoration

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

L150

Lift Mechanism

Lift Chain

Carrying Capacity

Light Level

Driven Type

Hydraulic

Running Mode

Stationary

Certification

CE, ISO 9001

Power

220V/50Hz

Maximum Load

250kg

♿

Product Overview

Accessible Hydraulic Driven Vertical Disabled Wheelchair Lift: The L-150 screw type barrier-free lifting platform is a vertical multi-functional lifting platform driven by a steel structure frame and precision screw. Designed for safety and convenience, it provides elevator-like enjoyment with a pit-free installation design.

This product is widely used in public places such as residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, and hospitals. It features a novel design, smooth operation, low noise, and excellent low-temperature resistance.

⭐

Key Features

Novel Design

Safe & Smooth

Low Noise

Low Temperature Resistance

⚙️

Technical Parameters

Power	220V/50HZ	Motor Power	0.75kw, 1.5kW 220V/AC
Overall Dimensions	1768mm × 1290mm × H+600mm	Lift Control	Rocker self-reset switch
Base Plate Size	1370mm × 922mm	Max Lift Height	6000mm
Lifting Speed	70mm/s (Hydraulic) / 40mm/s (Screw)	Proper Temperature	-20°C - 60°C
Installation	No foundation pit required	Safety Device	Safety rocker & Emergency descent

📐

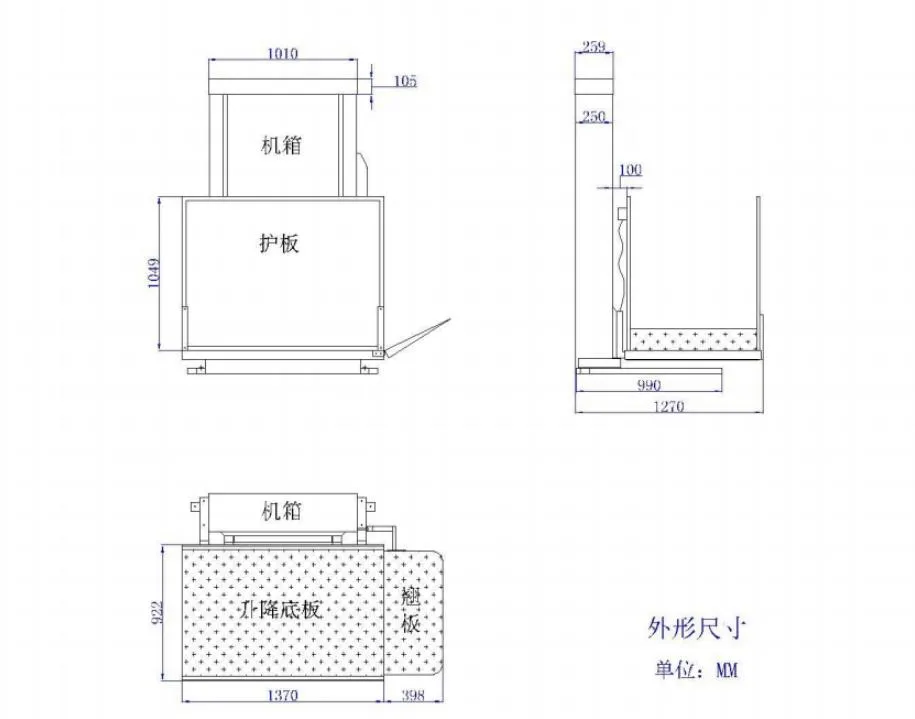

Dimensions & Configurations

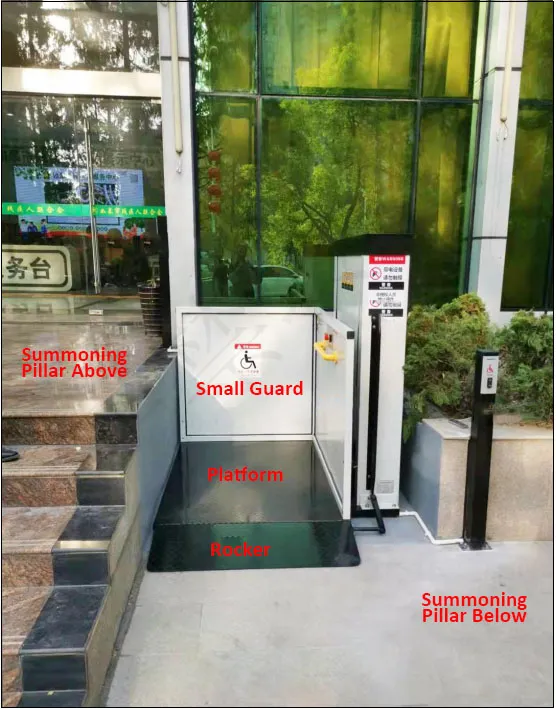

90° Configuration

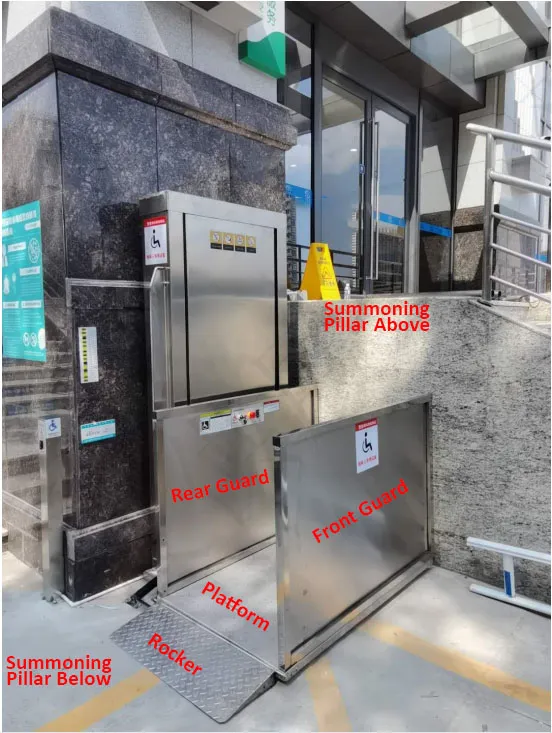

180° Configuration

📷

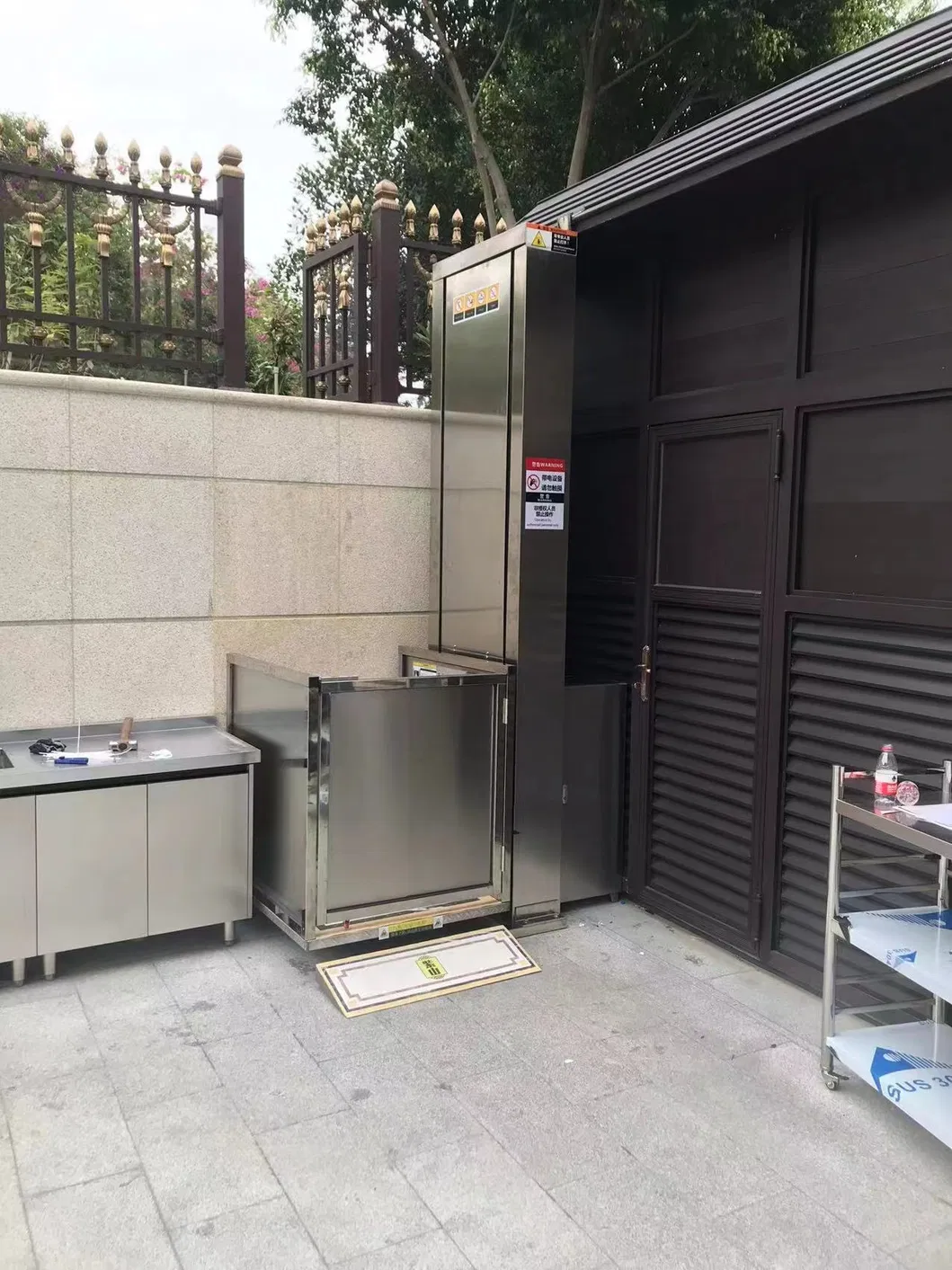

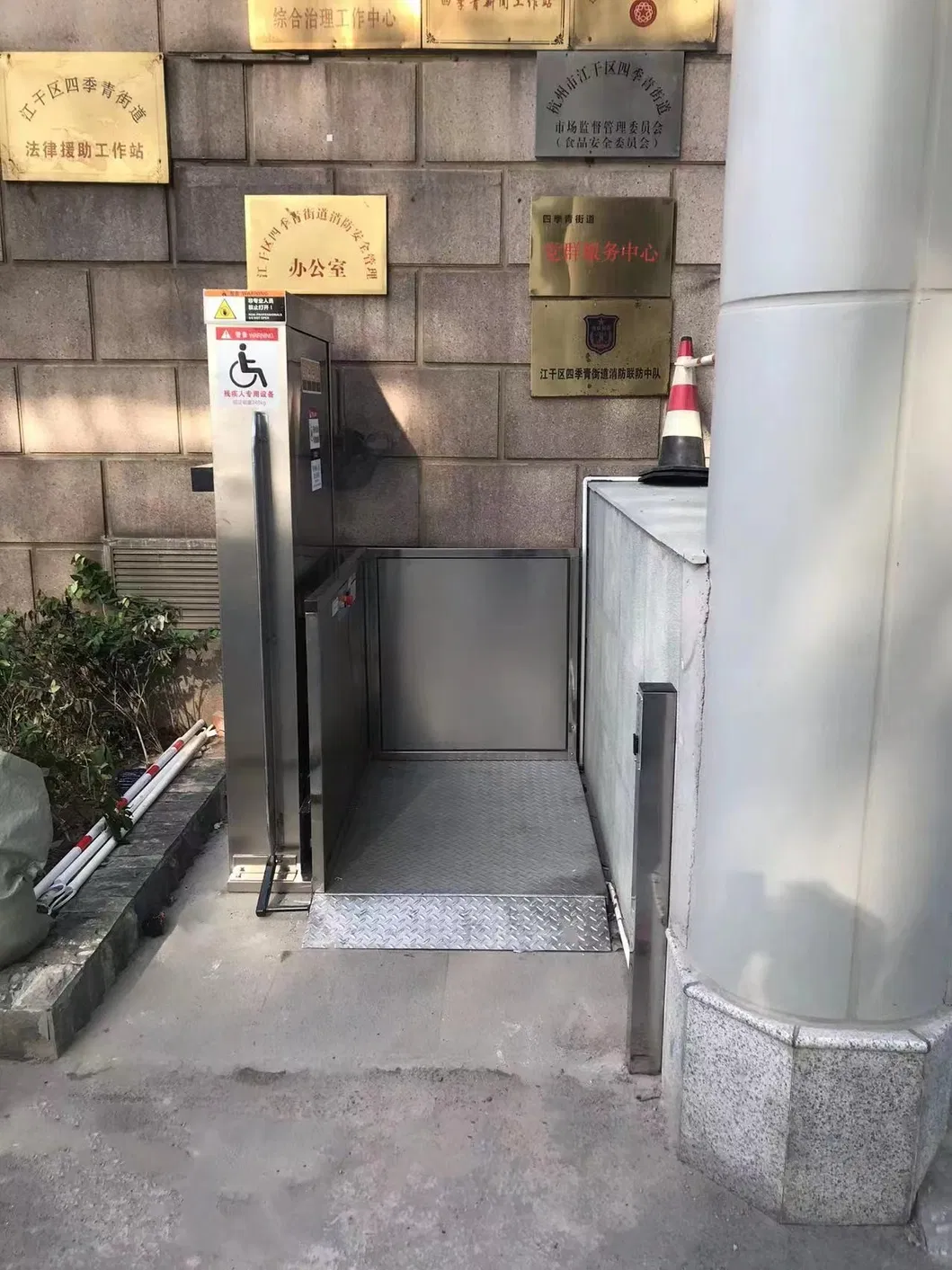

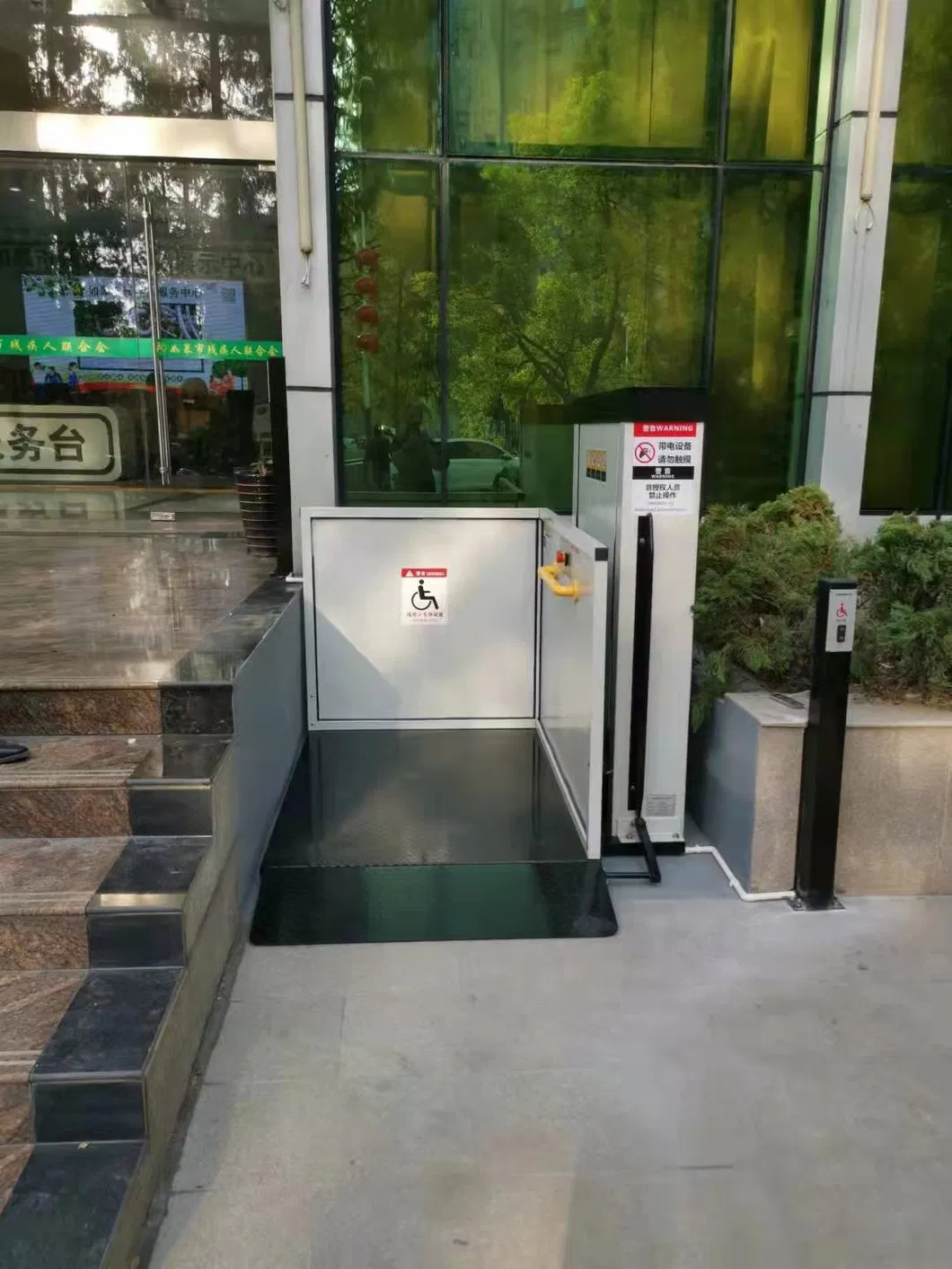

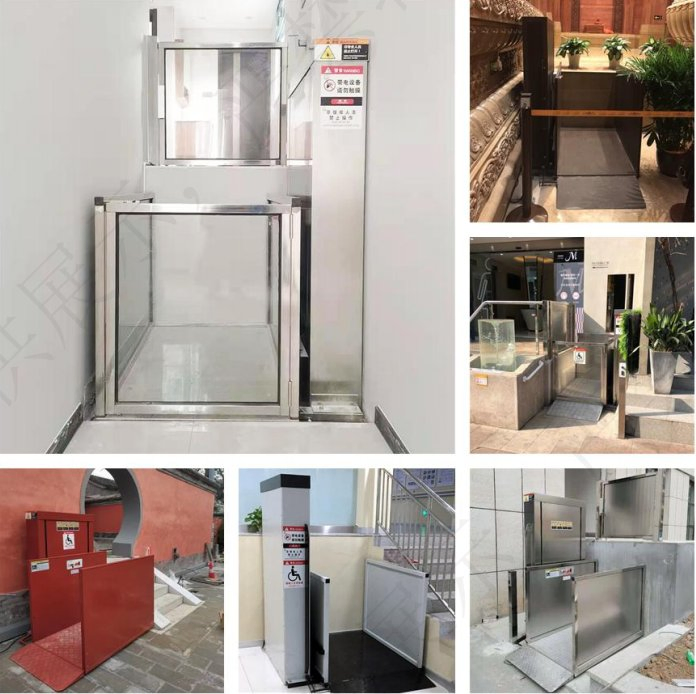

Reference Cases & Quality

Certificates

Package & Transportation

🛡️

Warranty & Service

✅ Manual: User-friendly English manual for operation and maintenance.
✅ Warranty: One year warranty for the whole machine (excluding man-made faults).
✅ Parts: Free replacement parts for non-human factor issues during warranty.
✅ Support: 24-hour technical support via digital communication.
✅ Response: Rapid response within 2 hours after receiving inquiries.

Frequently Asked Questions

What is the maximum lifting height of the L-150?

The L-150 platform can achieve a maximum lifting height of 6000mm, with customizable ranges starting from 2000mm or less depending on your specific requirements.

Is it necessary to dig a foundation pit for installation?

No, the design allows for no-foundation pit installation. It can be directly fixed on a C30 concrete level ground with a thickness of at least 200mm.

What safety features are included in the wheelchair lift?

Safety features include an automatic safety rocker to prevent sliding, fall protection via main and auxiliary nuts, overload protection, emergency stop buttons, and a safety net that stops descent upon hitting obstacles.

Can the lift be installed outdoors?

Yes, the L-150 is suitable for both indoor and outdoor environments, designed to operate in temperatures ranging from -20°C to 60°C.

What are the power requirements for this platform?

The standard power configuration is 220V/50Hz, making it compatible with most residential and commercial power supplies.

What is the maximum load capacity?

The maximum load capacity is 250kg, meeting standard European and American safety requirements for disabled wheelchair access.
