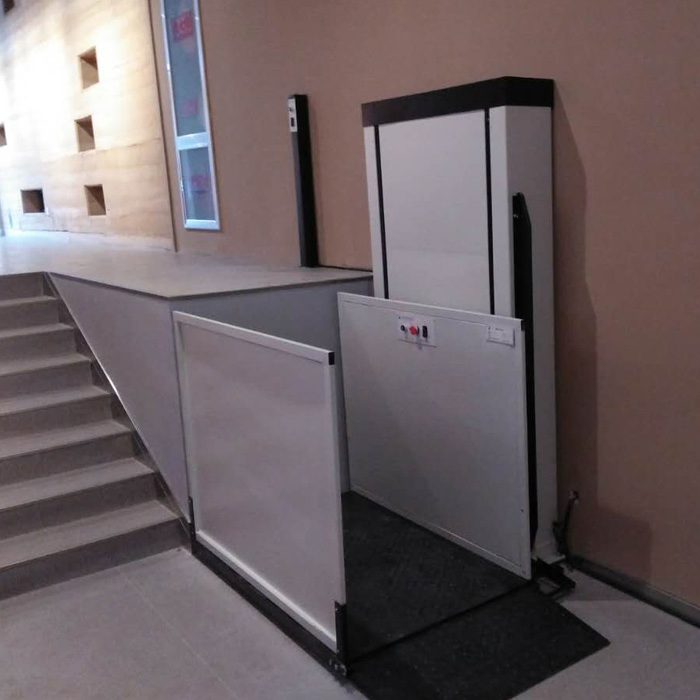

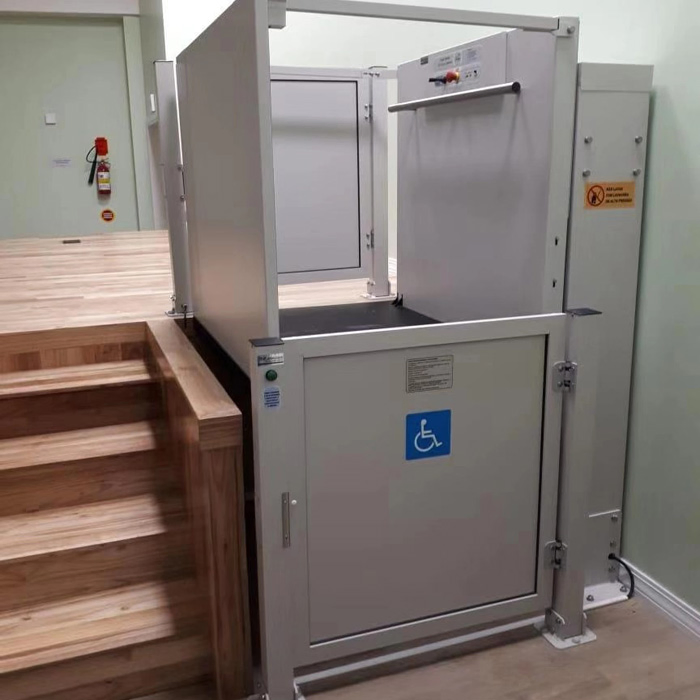

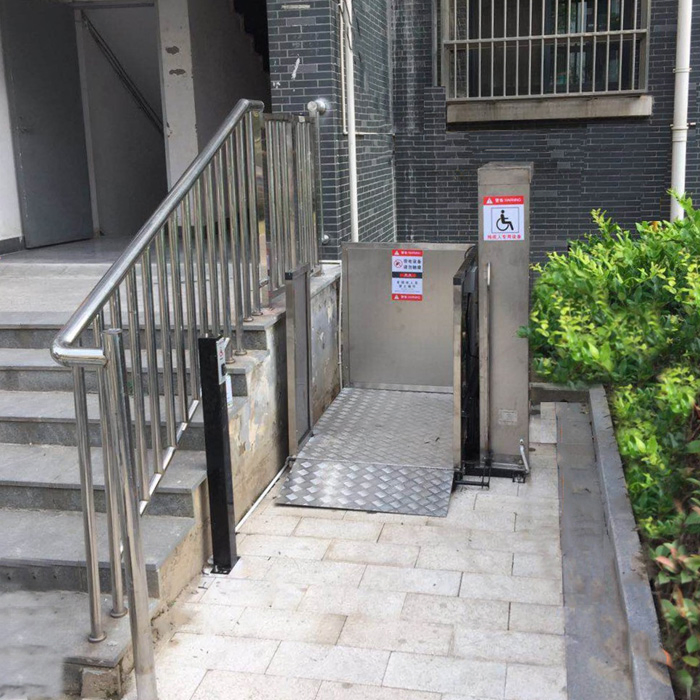

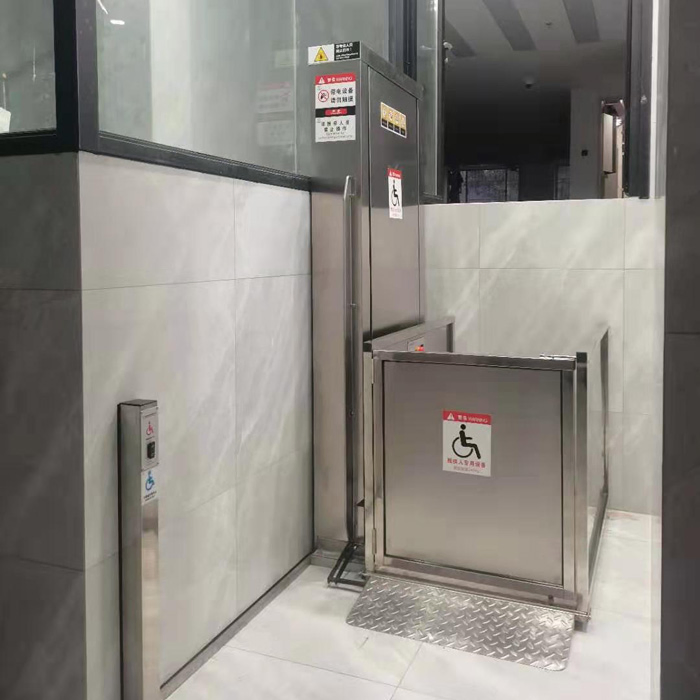

Vertical Hydraulic Driven Disabled Home Wheelchair Platform Stair Lift

1 / 5

Vertical Hydraulic Driven Disabled Home Wheelchair Platform Stair Lift

Customization:	Available
After-sales Service:	24 Hours Technical Support
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

L-150

Driving Type

Screw Type

Capacity

400kg

Persons

2-3 Persons

Speed

90mm/S

Control Mode

Push-Button Control

Position

Outdoor & Indoor

Elevator Door

Electric

Lifting Height

1m-10m

Production Capacity

10000 Sets Per Month

Product Description

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.

This home wheelchair platform lift features smooth running speed, high safety, and easy installation. It requires small space and no pits are required for installation.

Technic Parameters

Parameter Name		Details
Voltage		220V/50HZ or Customized

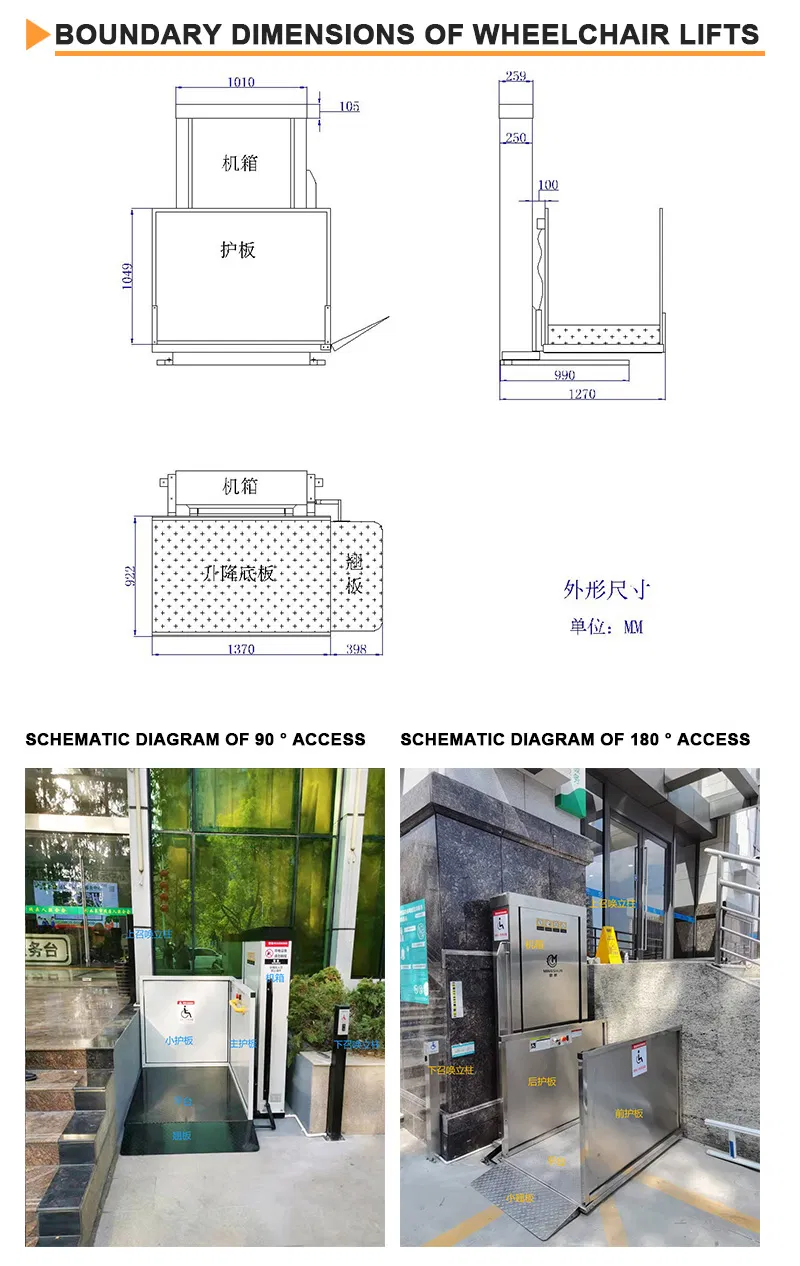

Overall Dimensions		1670mm(L)×1270mm(W)×(lifting height+550)mm (H)
Lifting Height		2000mm (customizable)
Min Base Plate Height		60mm from the ground
Installation		No Foundation Required
Lifting Speed		60mm/s inverter control, soft start/brake
Max Loading		240kg
Drive		Screw Drive
Power		2.2kw 220V/AC
Environment		Indoor & Outdoor (-20°C to 60°C)

Safety Equipment & Performance

Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. It is widely used in residential quarters, hotels, restaurants, administrative office buildings, and public places.

Safety Rocker: Automatically tilts up to prevent the wheelchair from sliding out during operation.
Overload Protection: Equipment will not operate if the maximum capacity is exceeded.
Emergency Stop: Immediate control to stop the machine via an emergency button.
Emergency Descent: Electric system for safe lowering during power issues.

Frequently Asked Questions

1. Does the wheelchair lift require a pit for installation?

No, this platform lift features a pit-free installation design, making it easy to set up in various environments without foundation work.

2. Can this lift be used outdoors?

Yes, it is designed for both indoor and outdoor use, with an operating temperature range of -20°C to 60°C.

3. What safety features are included for wheelchair users?

The lift includes a safety rocker that tilts up automatically to prevent sliding, overload protection, emergency stop buttons, and an emergency descent system.

4. Is the lifting height customizable?

Yes, while the standard height is 2000mm, the lifting height can be customized between 1m and 10m to fit your specific needs.

5. What is the power requirement for this platform lift?

The standard power is 2.2kw with 220V/50HZ voltage, but the voltage can be customized according to local requirements.

6. What is the maximum load capacity?

The equipment supports a standard load capacity of up to 400kg, suitable for 2-3 persons or a wheelchair with an escort.
