Htd6 Vertical Lift Compatible with Any Robot Easy Plug and Play Solution for Global B2B Buyers

Overview & Basic Information

Model NO.	HTD6	Application	Workshop, Shipboard, Warehouse, Building Cranes
Lift Mechanism	Telescoping Lift	Carrying Capacity	Special Weight Level
Driven Type	DC	Feature	Explosion-Proof
Certification	CE, RoHS	Maximum Load	6000N
Maximum Speed	5-100mm/S	Temperature	-45°C to +75°C

Product Features

⚙️

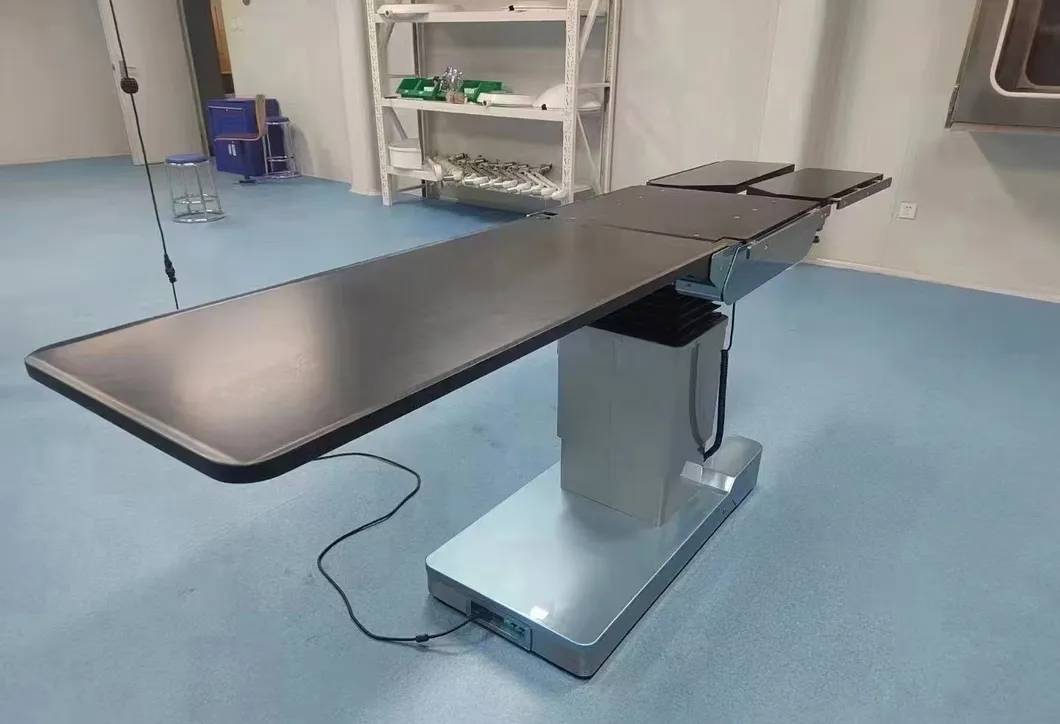

The lifting column is specially suitable for medical and working environments, such as hospital beds, home care beds, diagnosis and treatment tables, and height-adjustable workstations.

🛡️

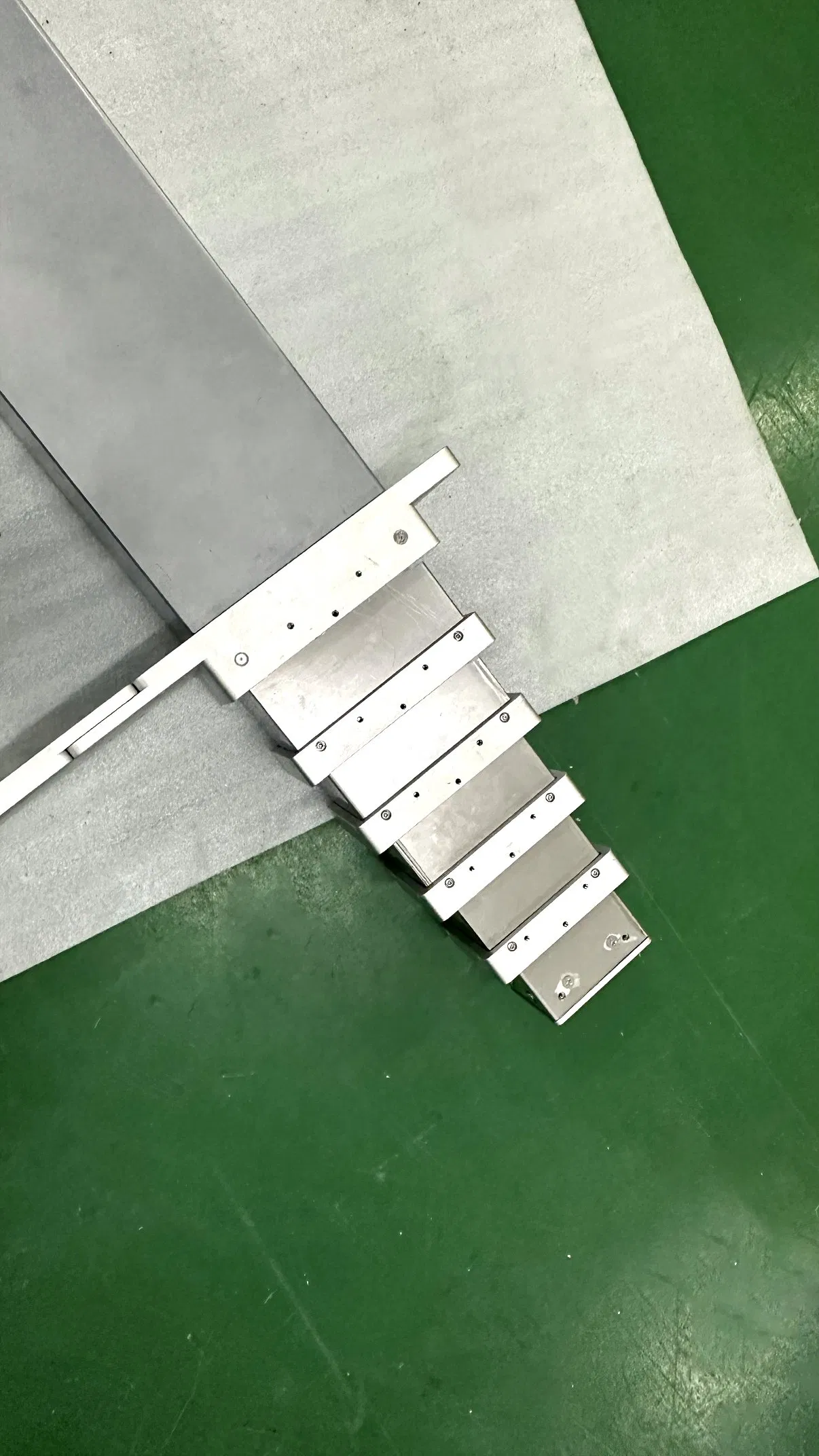

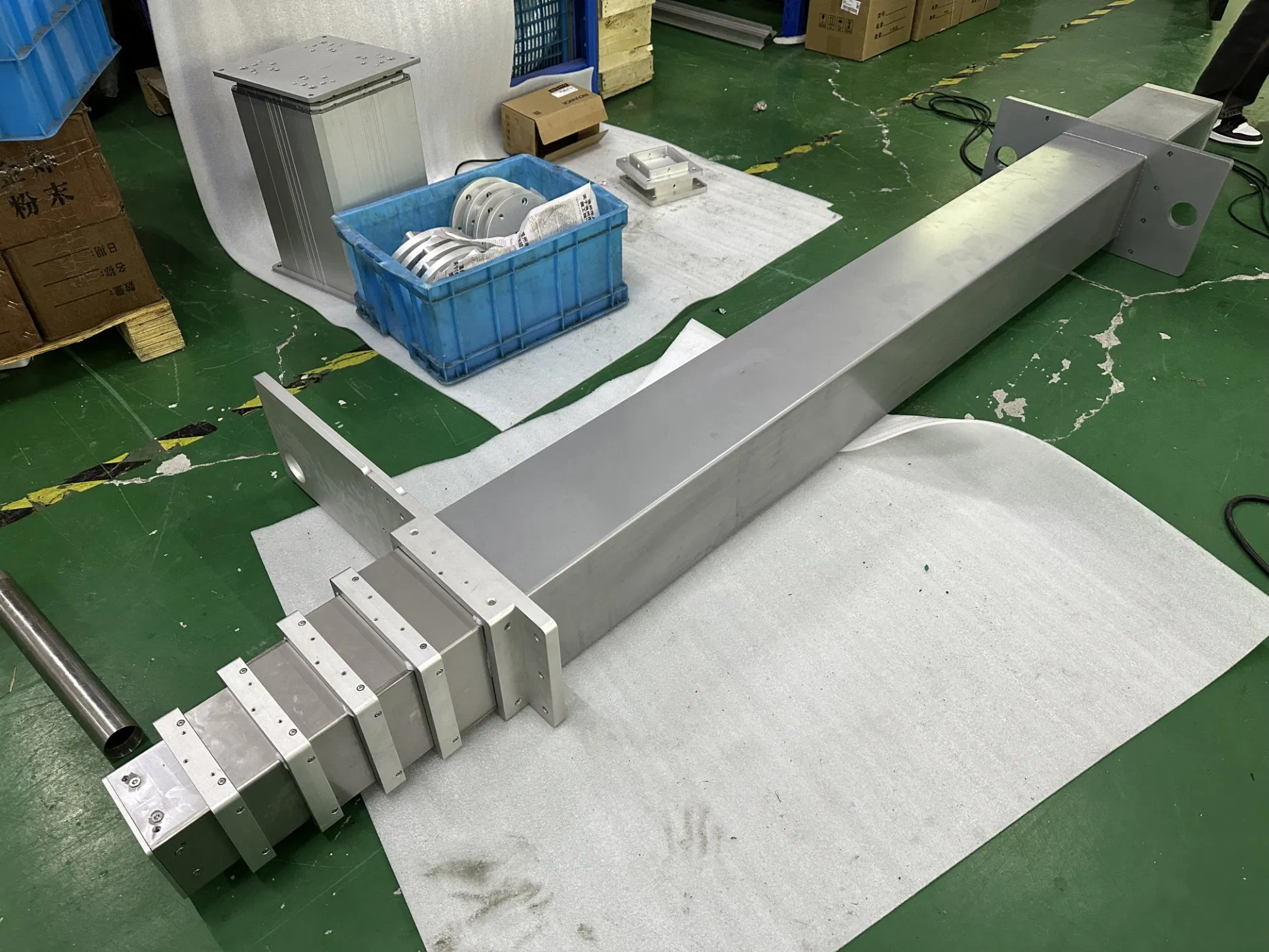

Utilizes a three-section outer tube to provide stable movement while maintaining a compact installation size with longer stroke options.

🔧

Flexible customization for standard products to meet specific transmission and installation needs.

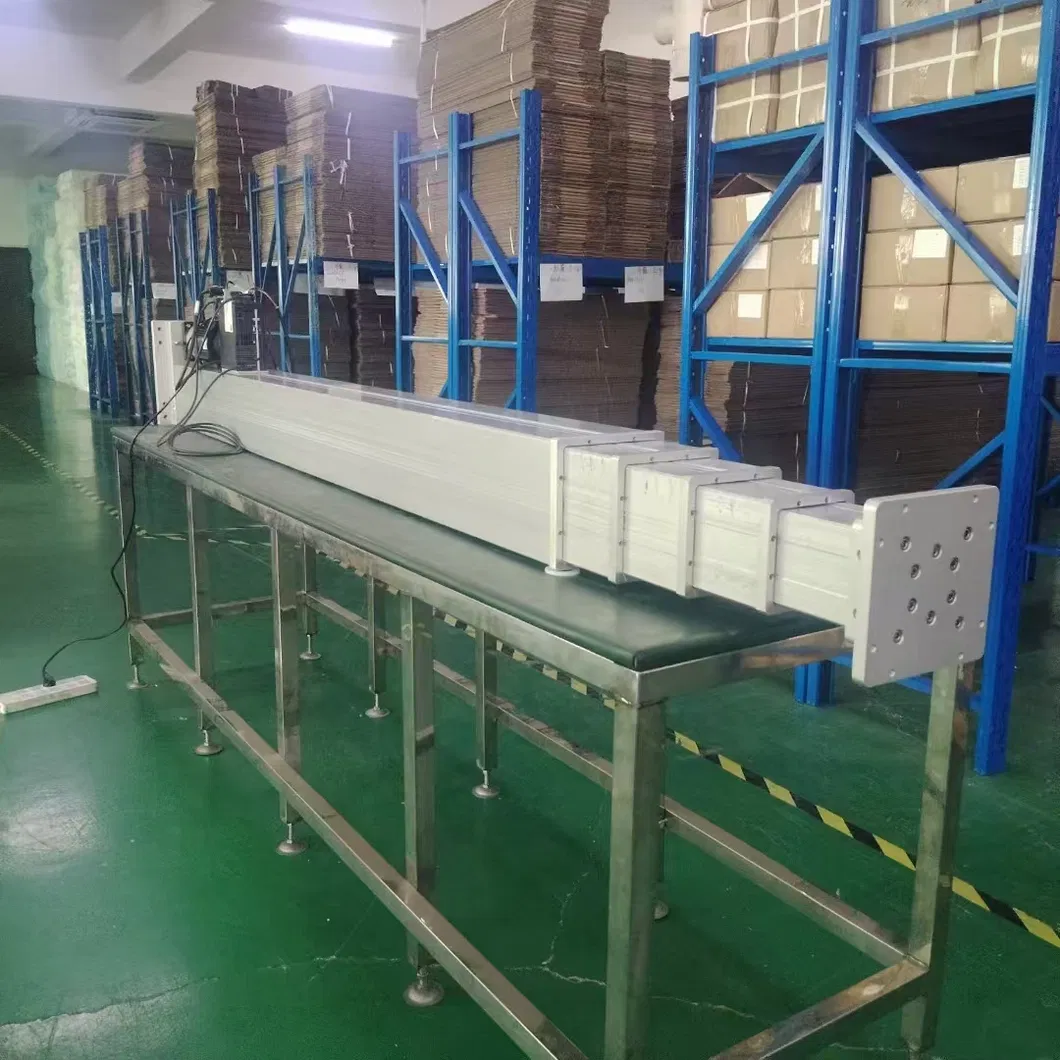

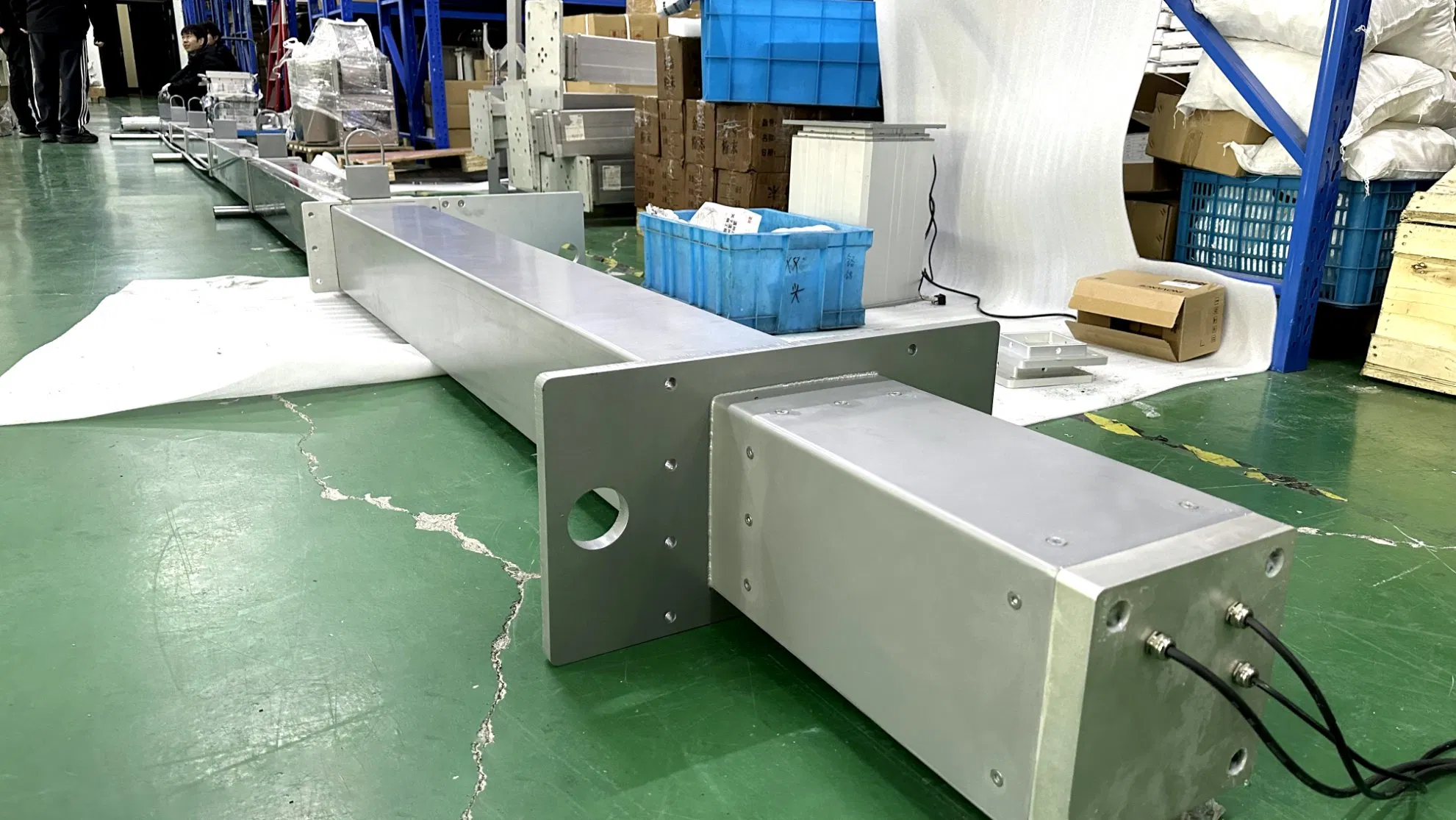

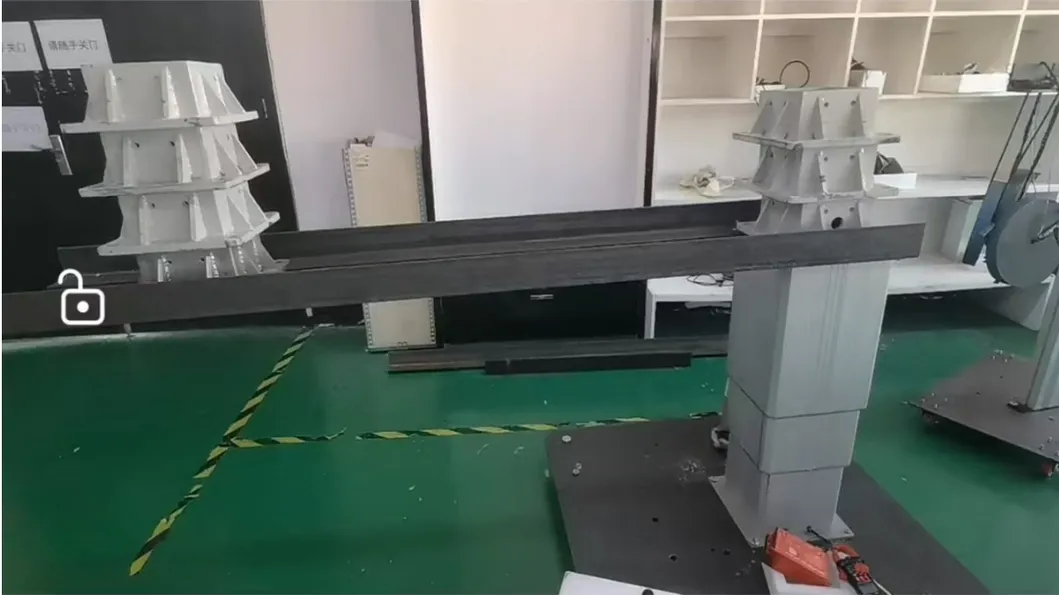

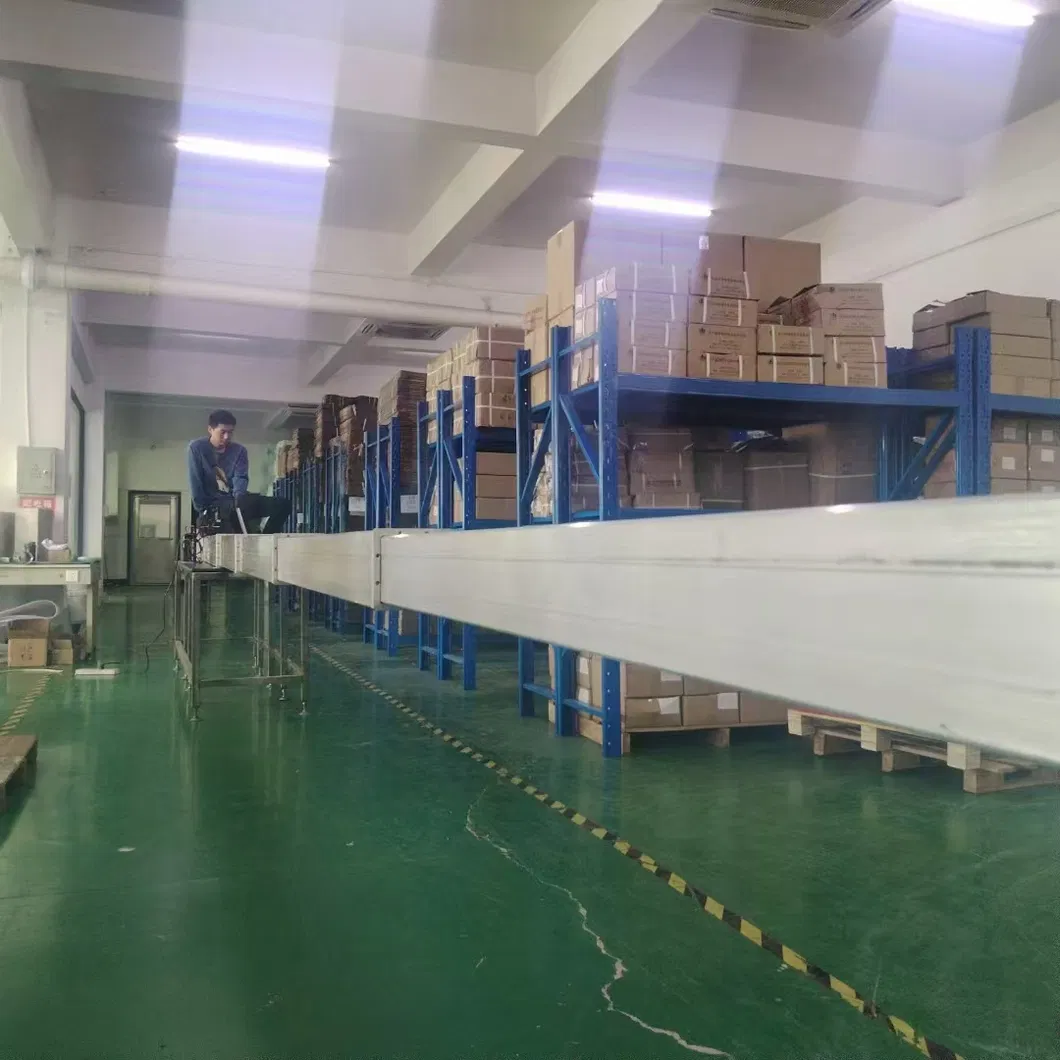

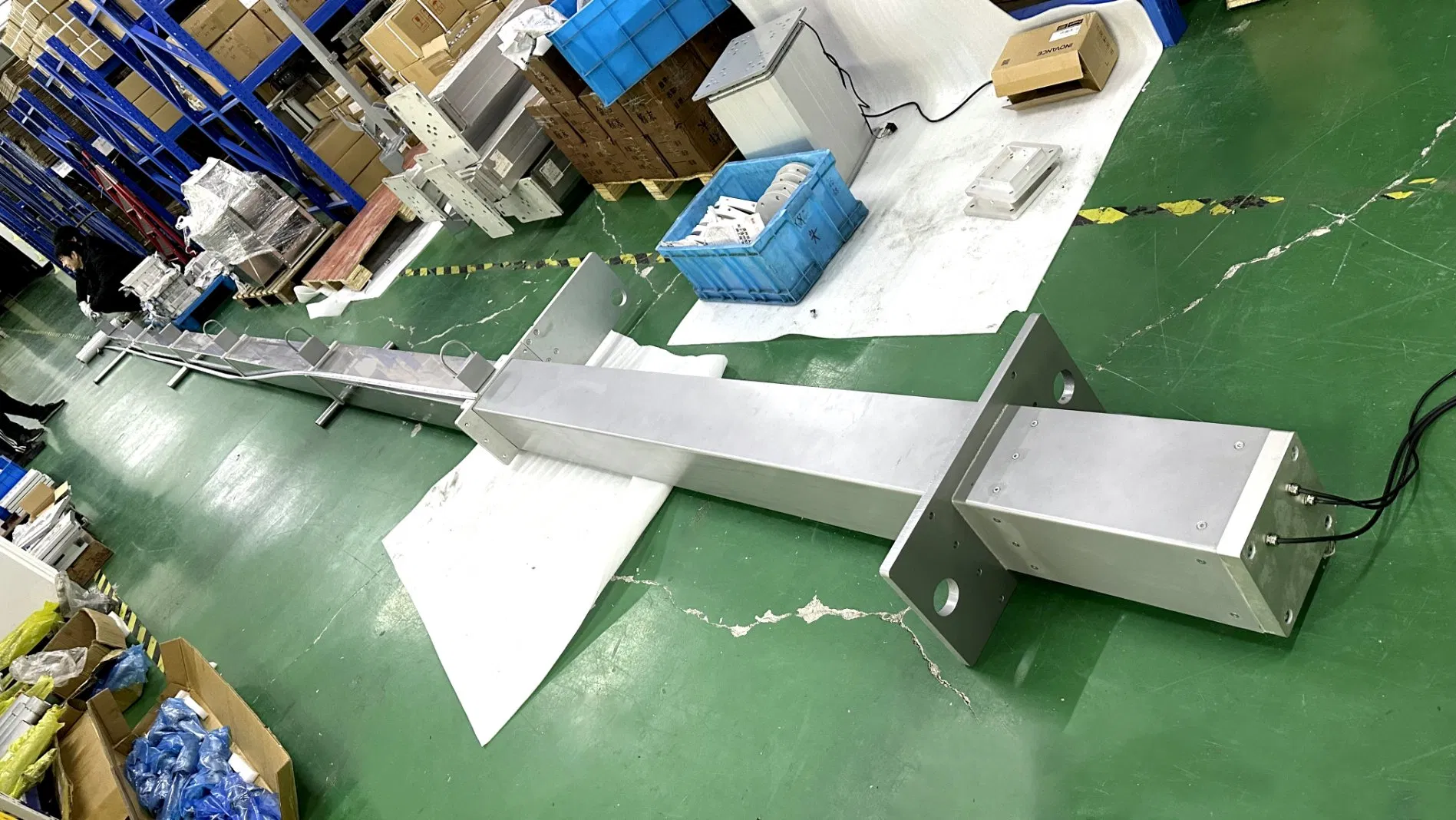

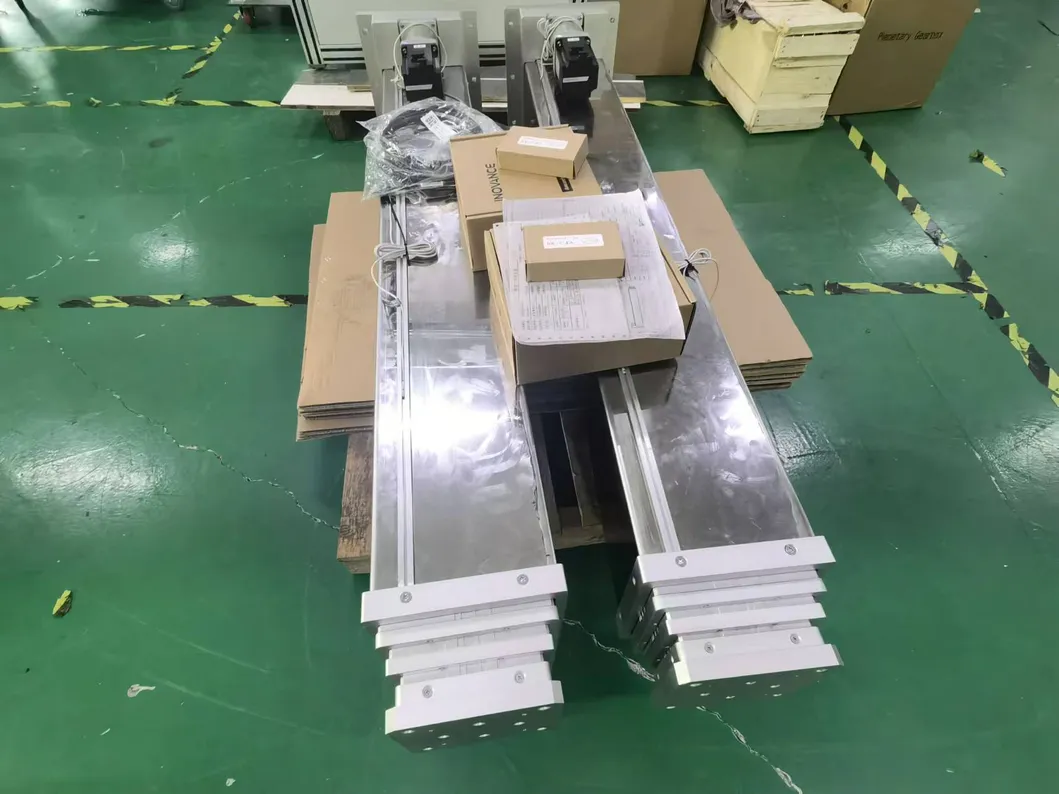

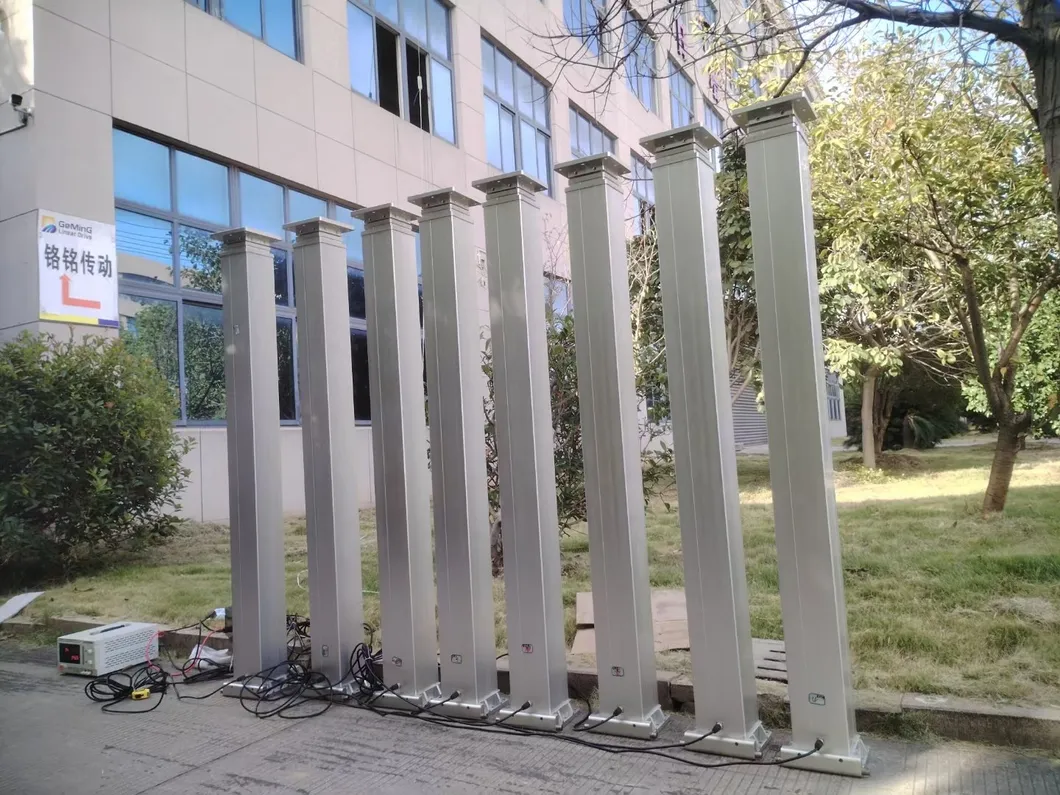

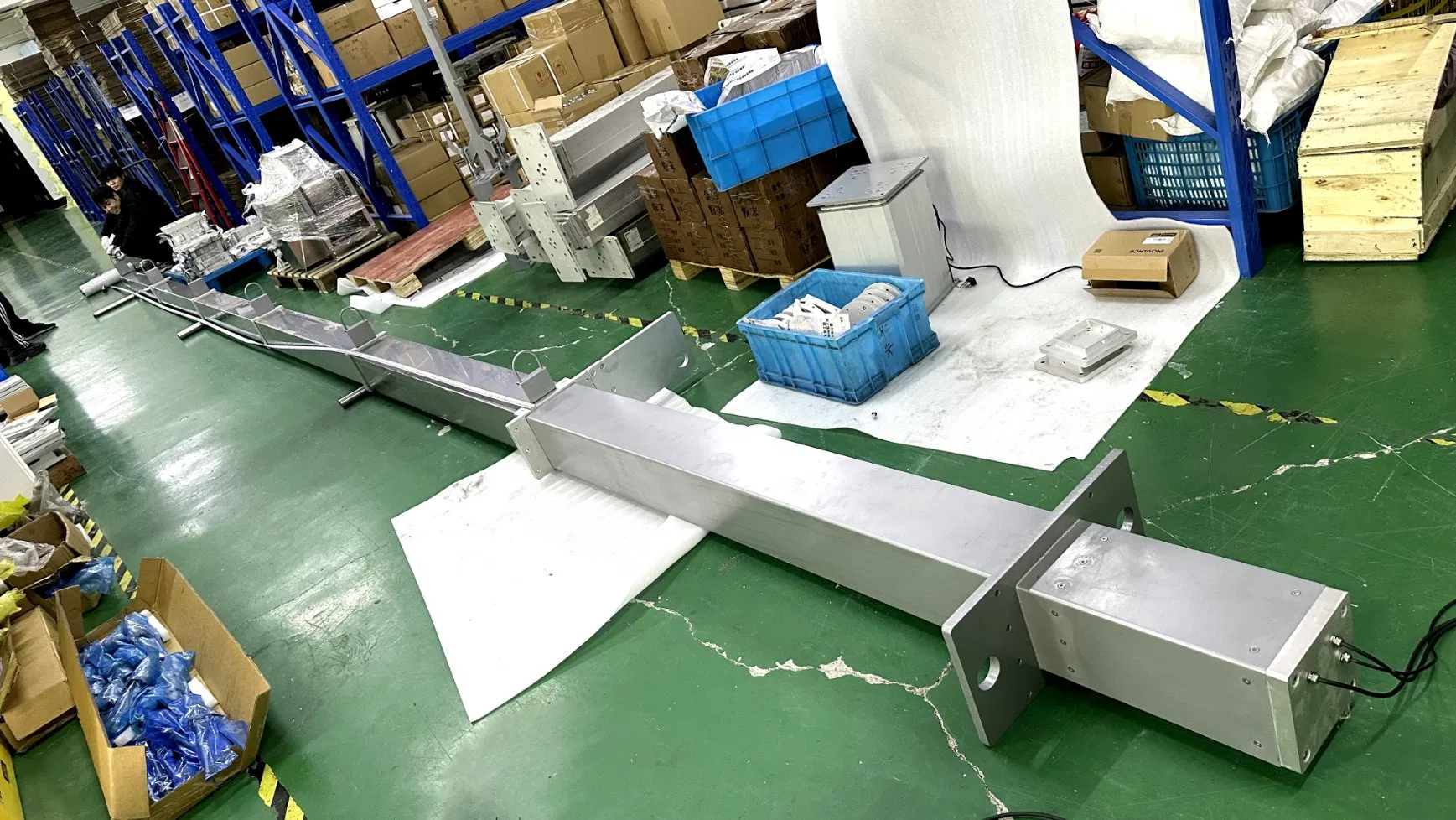

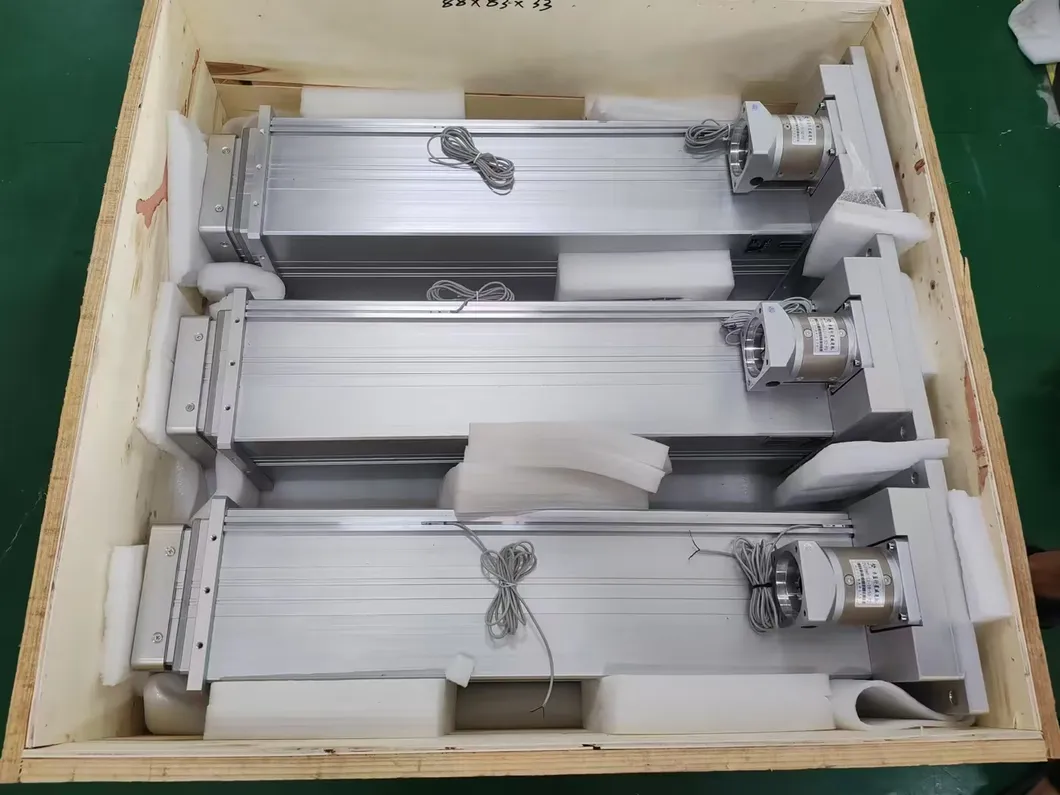

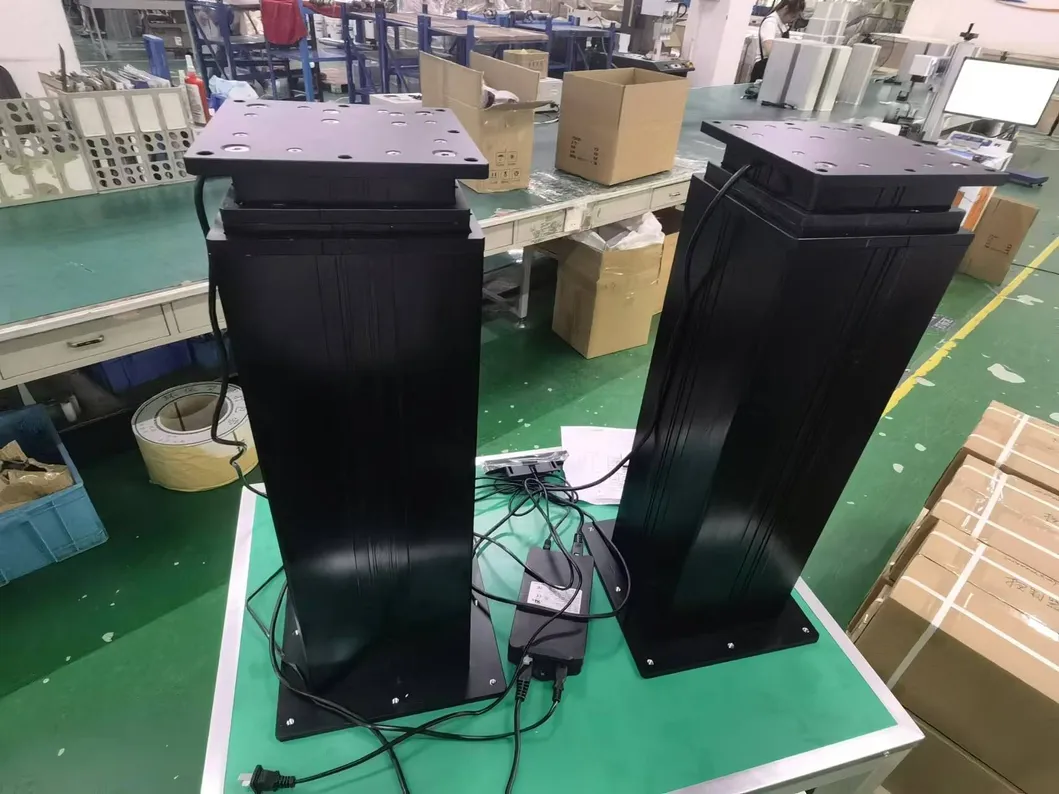

Detailed Product Display

Functional Overview

Voltage	12, 24, 48V DC, 220V AC
Motor Options	DC servo motor, AC servo motor
Maximum Thrust	6,000N / 4,000N
Speed Under Load	5-100 mm / s
Min. Installation Size	Stroke / 2 + 200mm
Dynamic Lateral Moment	1,000Nm
Static Lateral Moment	1,800Nm
Temperature Range	-35°C to +75°C
Screw Selection	Ball screw, trapezoidal screw
Control Options	CAN bus control

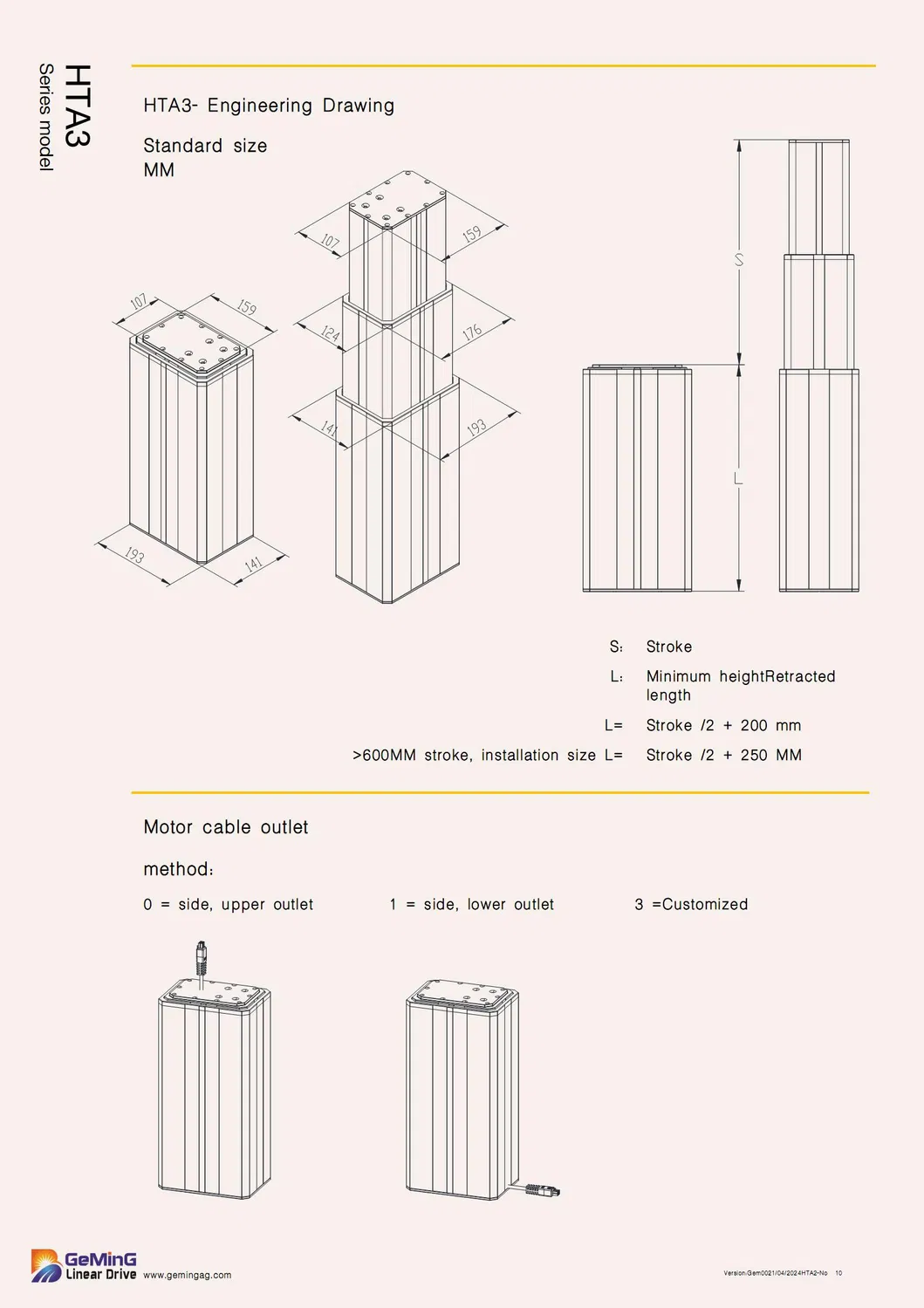

Engineering Drawings & Load Specs

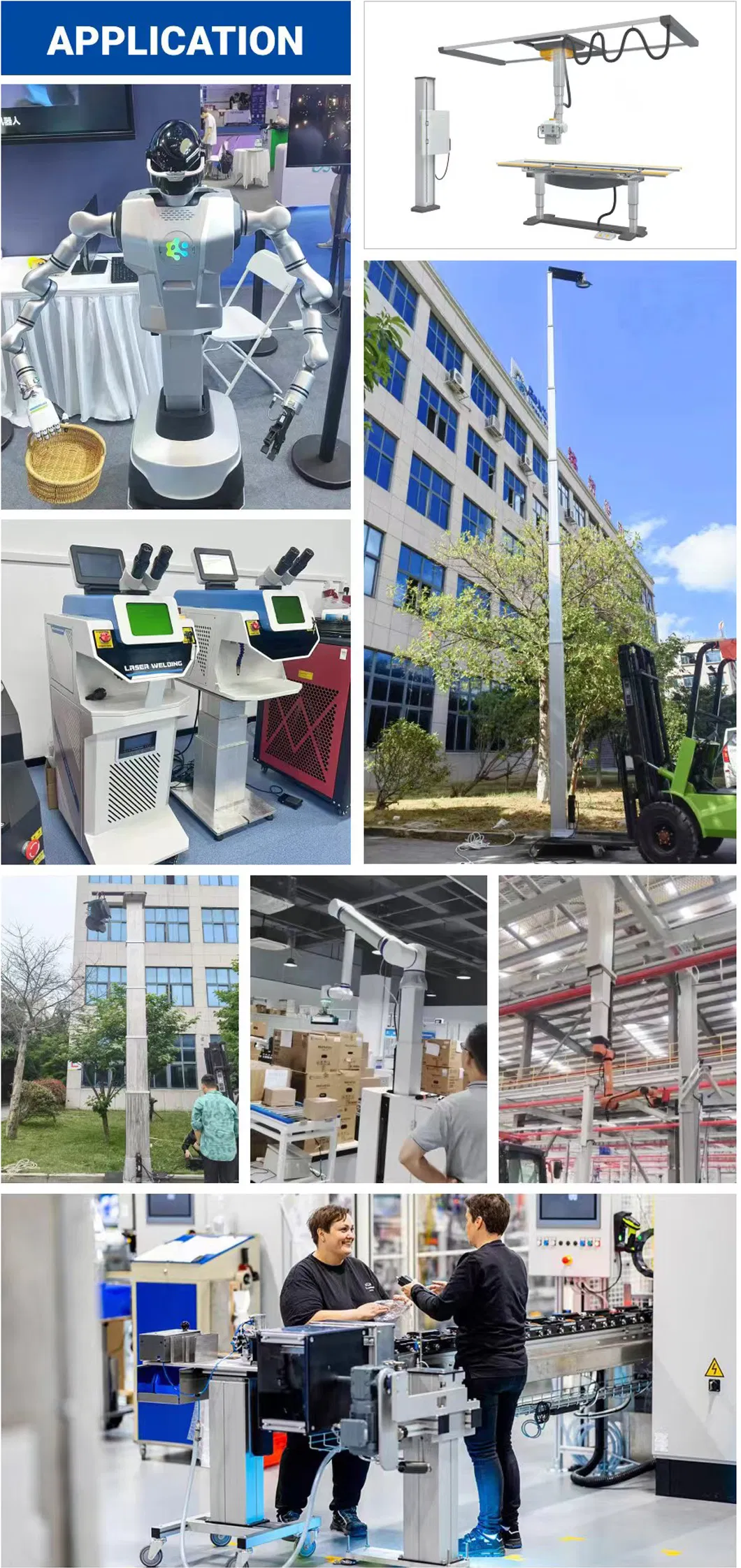

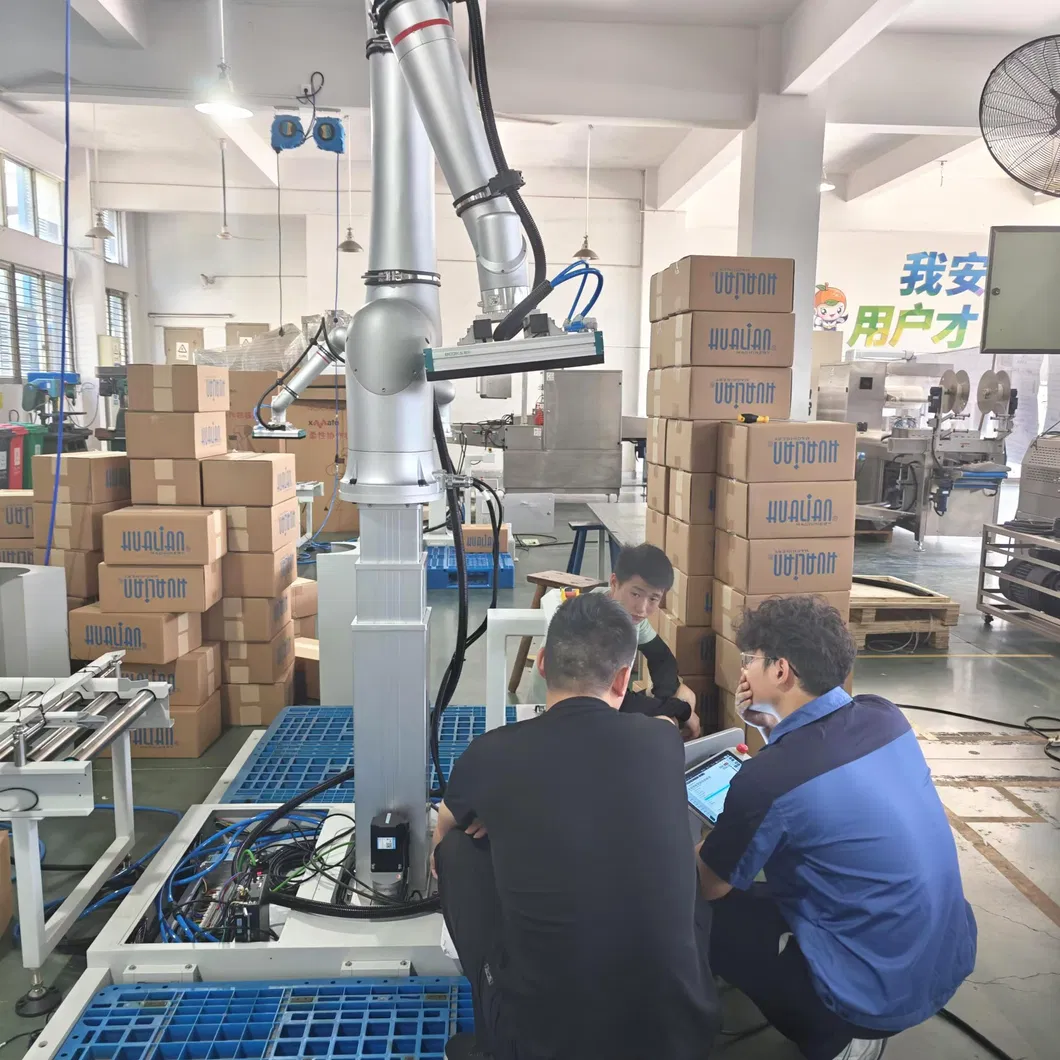

Applications

About the Manufacturer

Founded in 2011, the company specializes in R&D and manufacturing linear motion systems. As a leading manufacturer of electric linear actuators and electric lifting column control systems, we provide global engineering support through multiple manufacturing plants and sales agents.

Frequently Asked Questions

Q: What are the main products available?

A: Our range includes industrial lifting columns, medical lifting columns, ergonomic table columns, linear actuators, micro actuators, and robotic arm solutions.

Q: How do I choose the most suitable lifting mechanism?

A: Selection depends on your specific parameters: voltage, speed, stroke length, initial/maximum height, load capacity, and noise level requirements.

Q: Are customized services available for standard models?

A: Yes, we provide customization for installation dimensions, motor types, stroke lengths, and specialized voltage requirements to meet your specific needs.

Q: Do you provide personalized design services?

A: Yes, we offer complete design services for actuators, lifting mechanisms, and control systems. Simple modifications are often provided without additional fees.

Q: What is the typical delivery time?

A: Standard products generally take 6-20 days. Customized solutions may take longer depending on the complexity of the order.

Q: Can these products operate in extreme temperatures?

A: Yes, our equipment is designed to operate efficiently within a temperature range of -35°C to +75°C.
