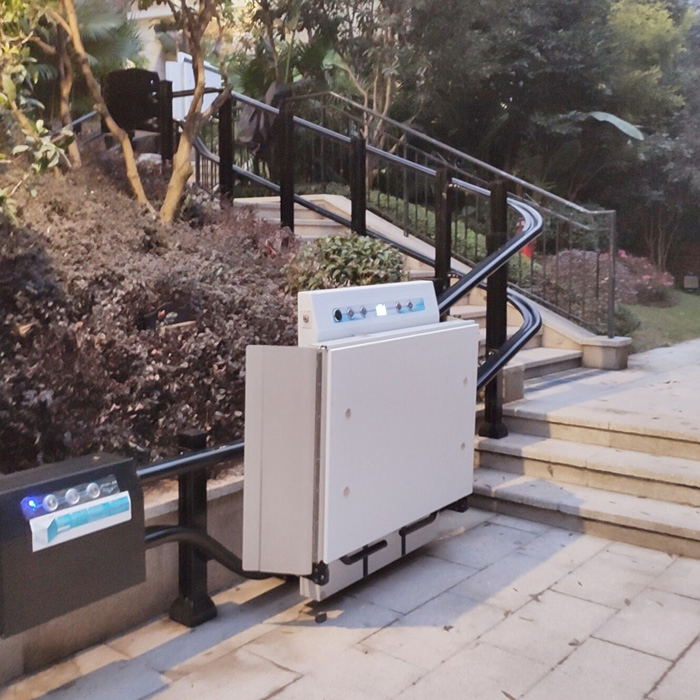

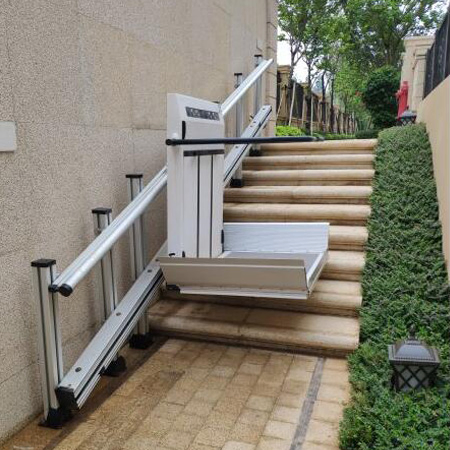

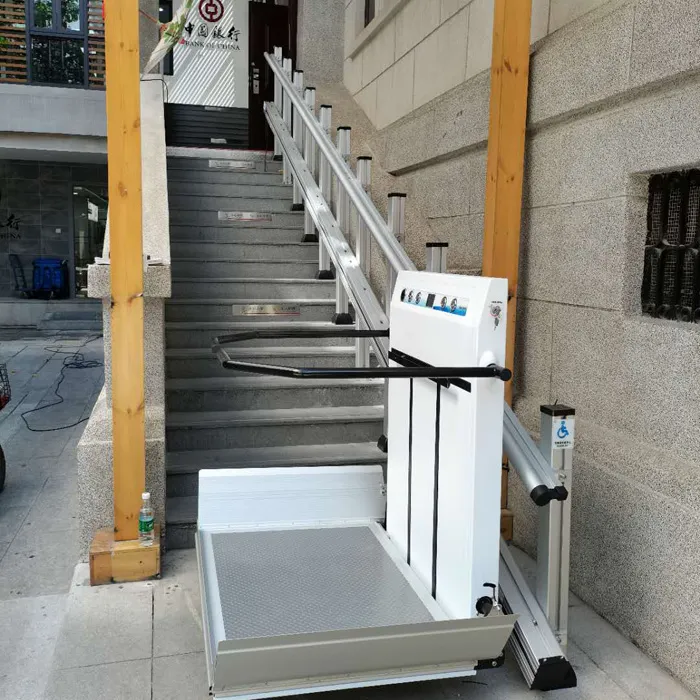

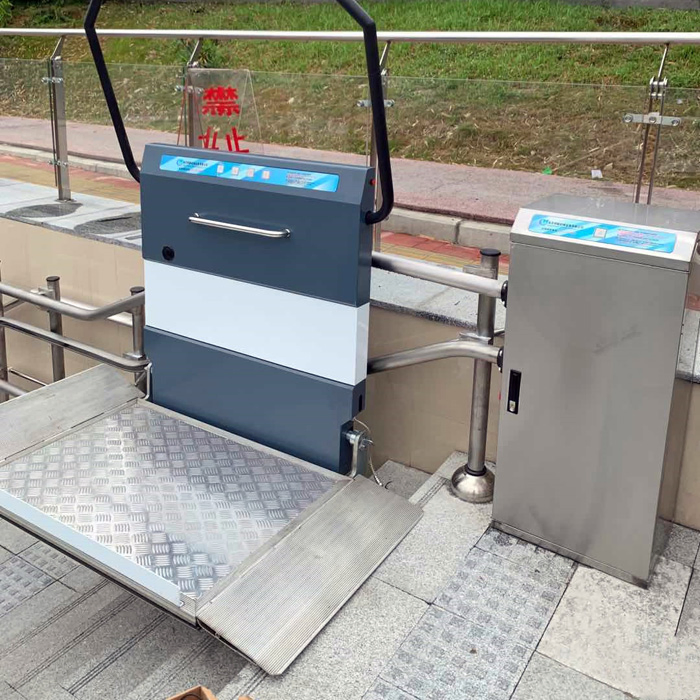

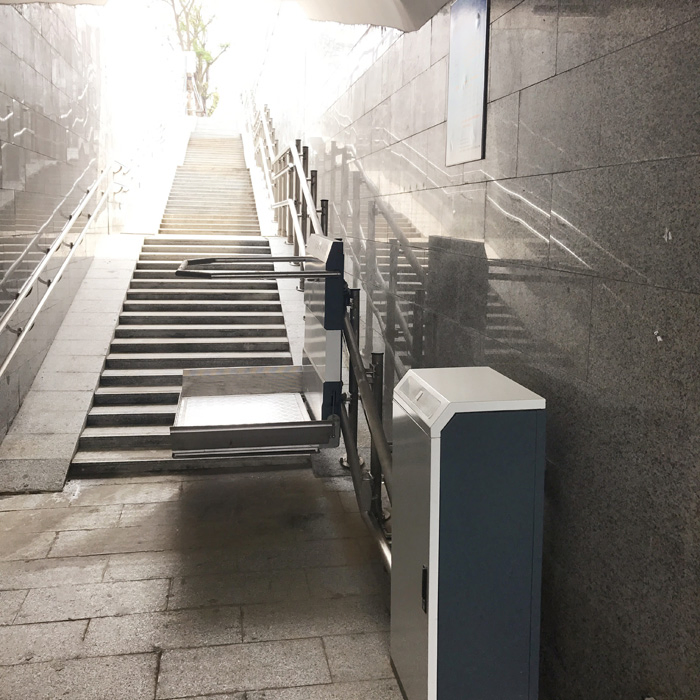

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.
These lifts can carry a passenger with wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for applications where an elevator or vertical platform lift cannot be easily accommodated.
Main Technical Parameters of the Platform:
Standard Dimensions
1100MM×800MM
Loading Capacity
250KG
Travel Speed
0~7M/MIN (Slow down at landings)
Drive System
1.5KW-VVVF compact drive system
Power Supply
AC 220/380V 50Hz-60Hz, 15A
Safety Arm
Fully automatic safety arm mounted 880mm above platform
Overspeed Device
Mechanical overspeed sensor and brake
Control System
PLC with Non-locking constant voltage buttons

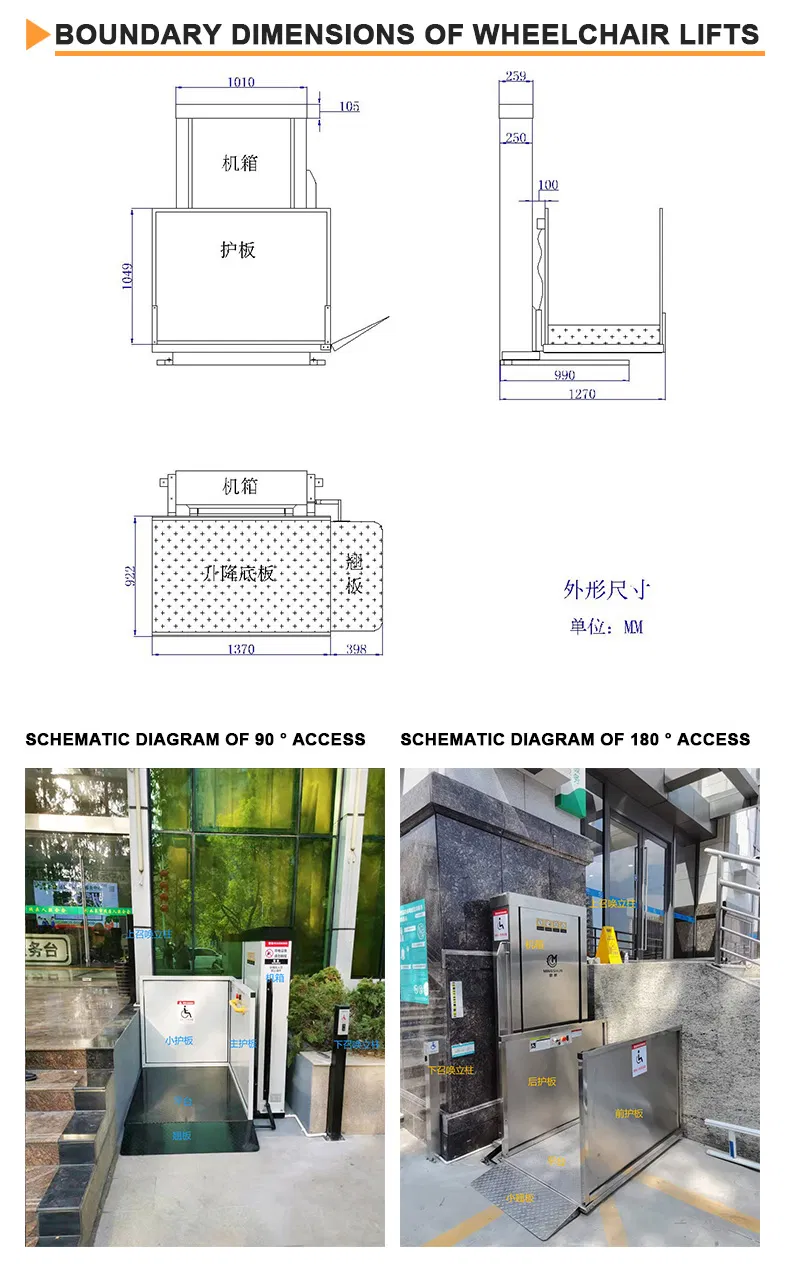

Platform Details & Materials
Operating Size
1040mm*1170mm
Folded Thickness
<350mm
Side Flap Angle
≈60°
Internal Voltage
Max DC 29.6V (Safe Voltage)
Battery Capacity
7AH*2 (Approx. 30 uses)
Material
Anti-dust, Rust, & Moisture resistant
Shell Material
Stainless Steel
Pedal Material
Aluminum Alloy Profile
The inclined wheelchair lifting platform is a barrier-free safety device installed in the corridor system that uses motor traction to move up and down along the track. It is a special equipment designed for building corridor systems for people using wheelchairs or those who find it difficult to climb stairs.
Frequently Asked Questions
1. What is the maximum weight capacity of the lift?
The standard loading capacity is 250KG, which safely accommodates a user and their wheelchair.
2. What safety features are included for the user?
Safety features include automatic curved safety arms, overspeed sensors with mechanical brakes, safety touch panels to detect obstacles, and emergency stop buttons.
3. Can the lift be used during a power outage?
Yes, the platform is equipped with a manual control system that allows it to be lowered and folded manually in an emergency or during power failure.
4. How much space does the lift take when not in use?
The platform is designed to be space-efficient with a folded thickness of less than 350mm, ensuring the staircase remains accessible to pedestrians.
5. What are the power requirements for installation?
The system supports AC 220V or 380V at 50Hz-60Hz, using a 1.5KW VVVF compact drive system for smooth operation.
6. Is the lift suitable for different staircase heights?
Yes, the lifting height is customizable between 1 meter and 10 meters, making it suitable for various building architectures.
