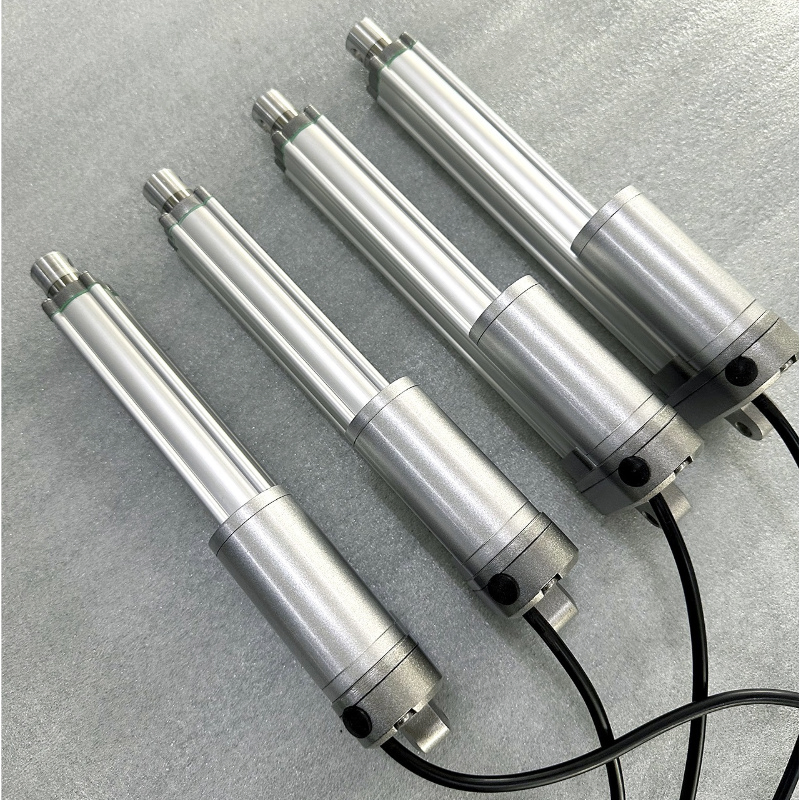

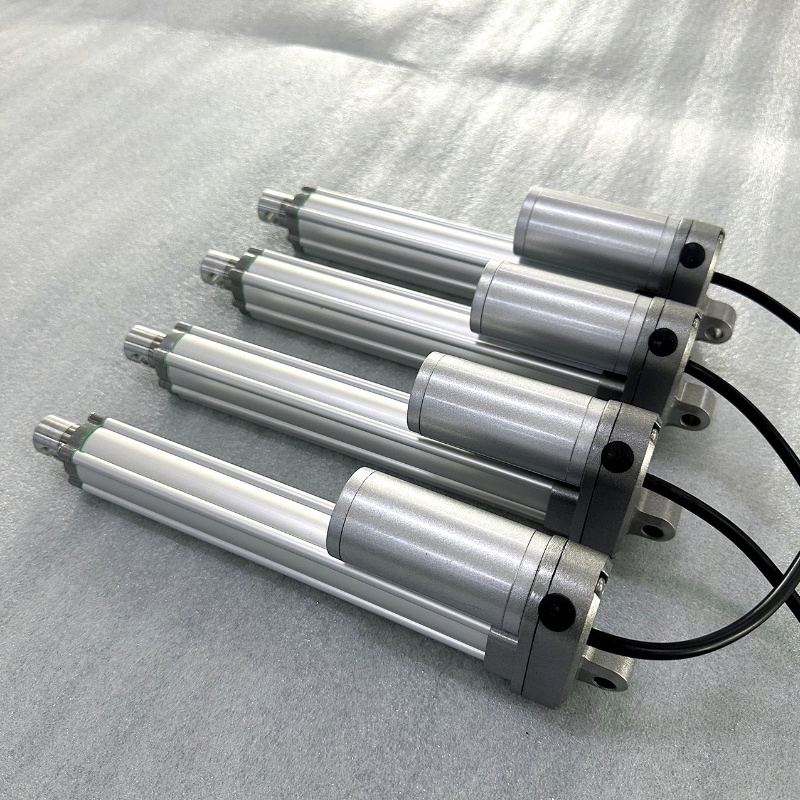

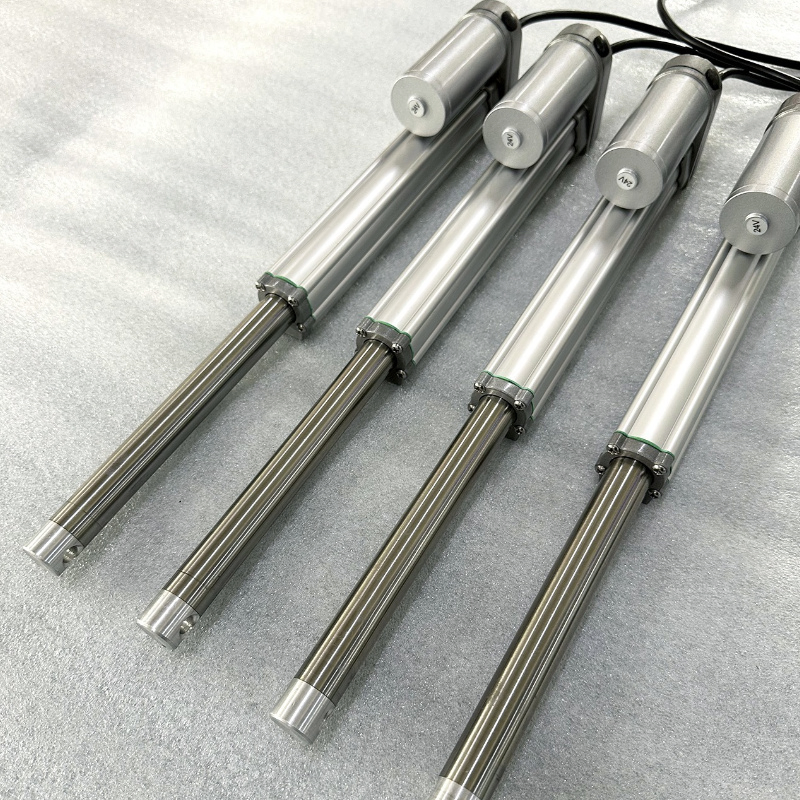

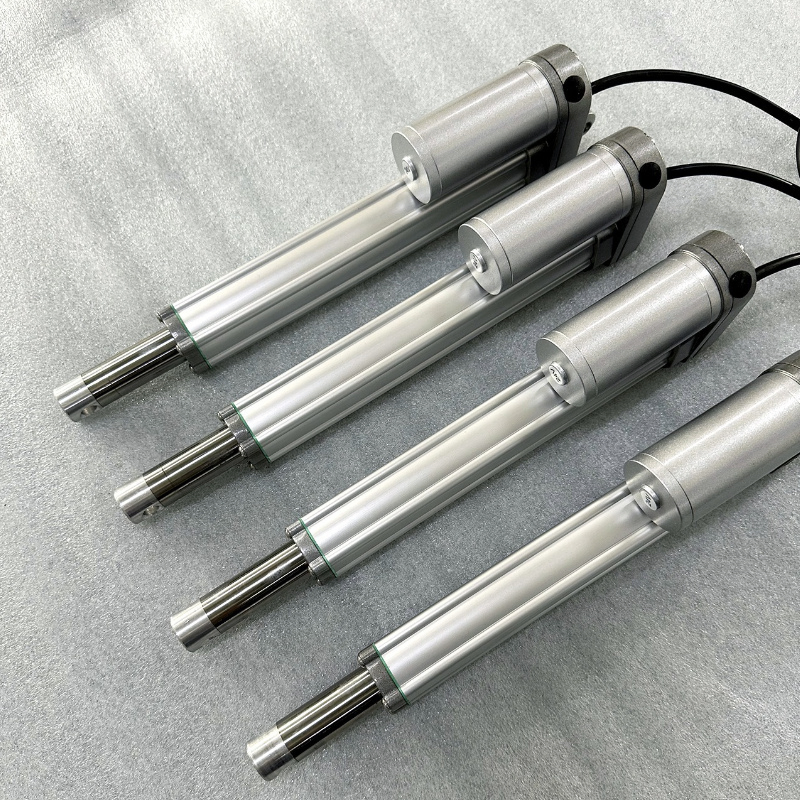

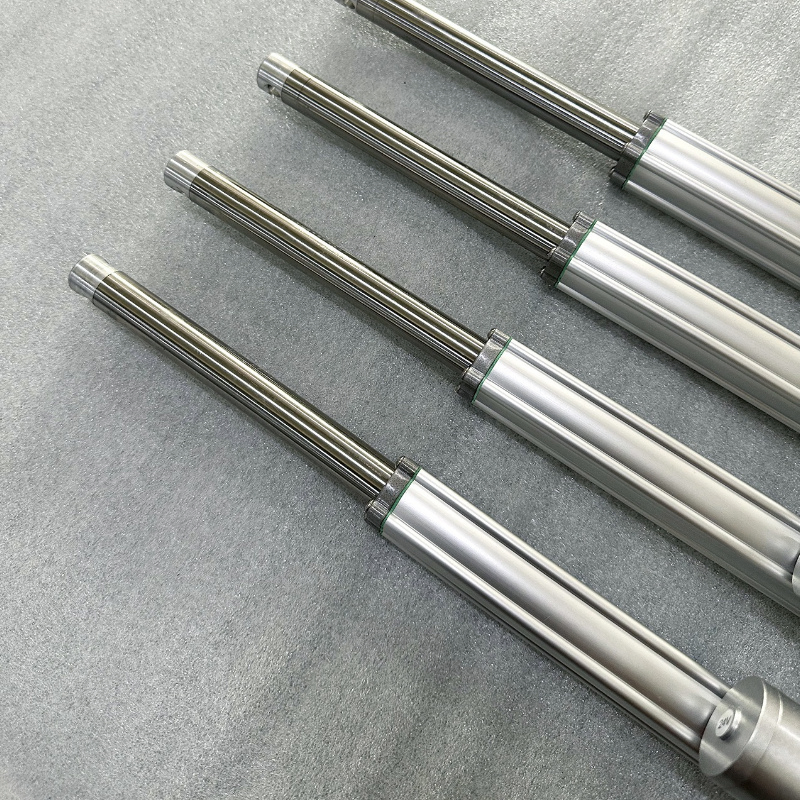

Hta15 Heavy Duty Electric Actuator with Trapezoidal Screw for Lifting System

1 / 5

Hta15 Heavy Duty Electric Actuator with Trapezoidal Screw for Lifting System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HTA15

Application

Workshop, Shipboard, Warehouse, Building Cranes

Lift Mechanism

Telescoping Lift

Driven Type

Feature

Explosion-Proof

Certification

CE, RoHS

IP Rating

IP66

HS Code

850131

Product Features

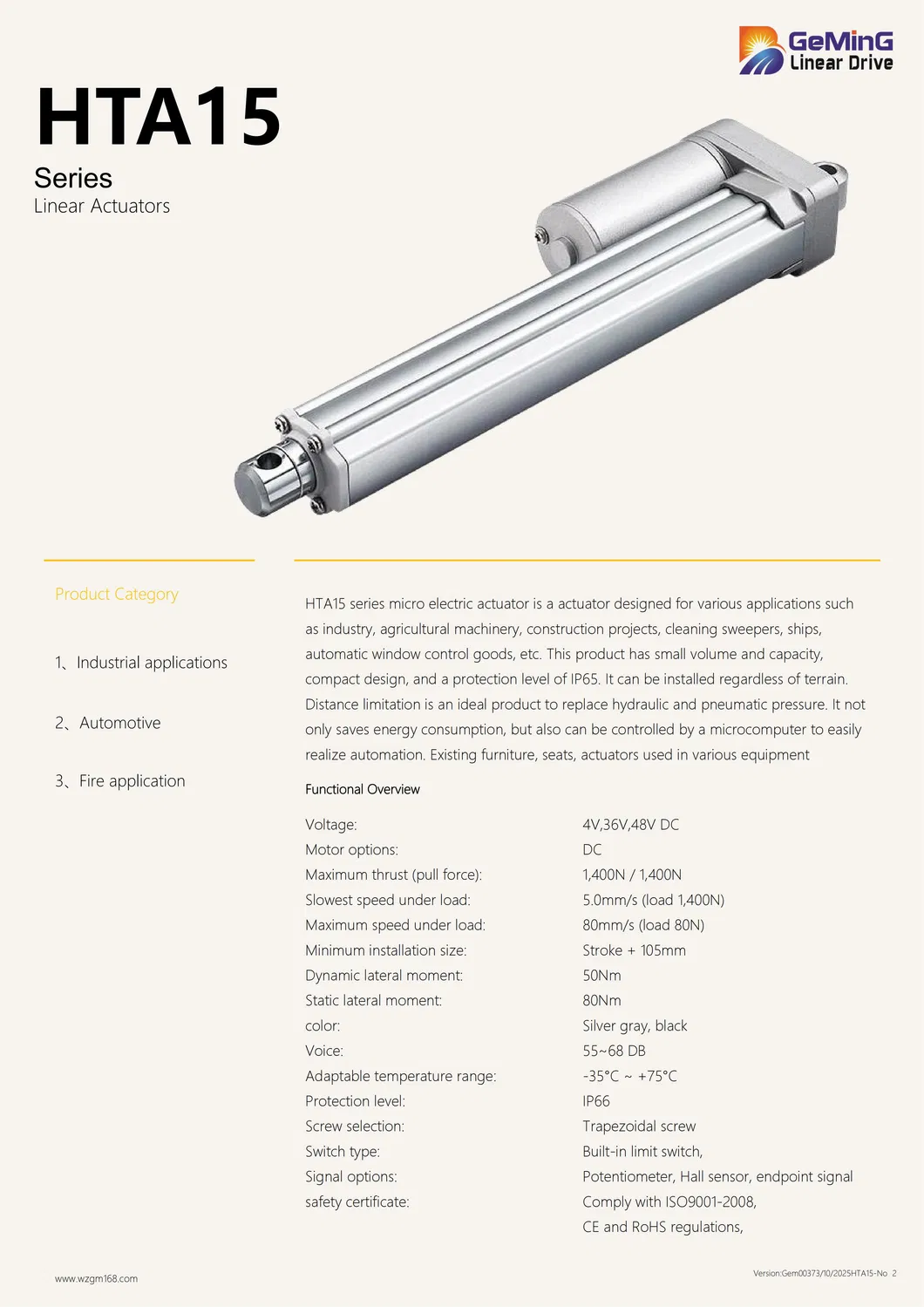

The HTA15 miniature linear actuator is designed for industrial, agricultural machinery, construction, and marine applications such as automatic window control. It features a compact design with high protection levels, serving as an energy-saving alternative to hydraulic and pneumatic systems with easy microcomputer automation.

General Specifications

Motor Voltage: 12V, 24V, 36V, 48V DC
Maximum Load: 1,800N
Max Speed: 80mm/s (50N load)
Stroke Range: 30~900mm
Operating Temp: -20°C to +45°C
High Strength Zinc Alloy Housing
Built-in Limit Switches
Duty Cycle: 25%

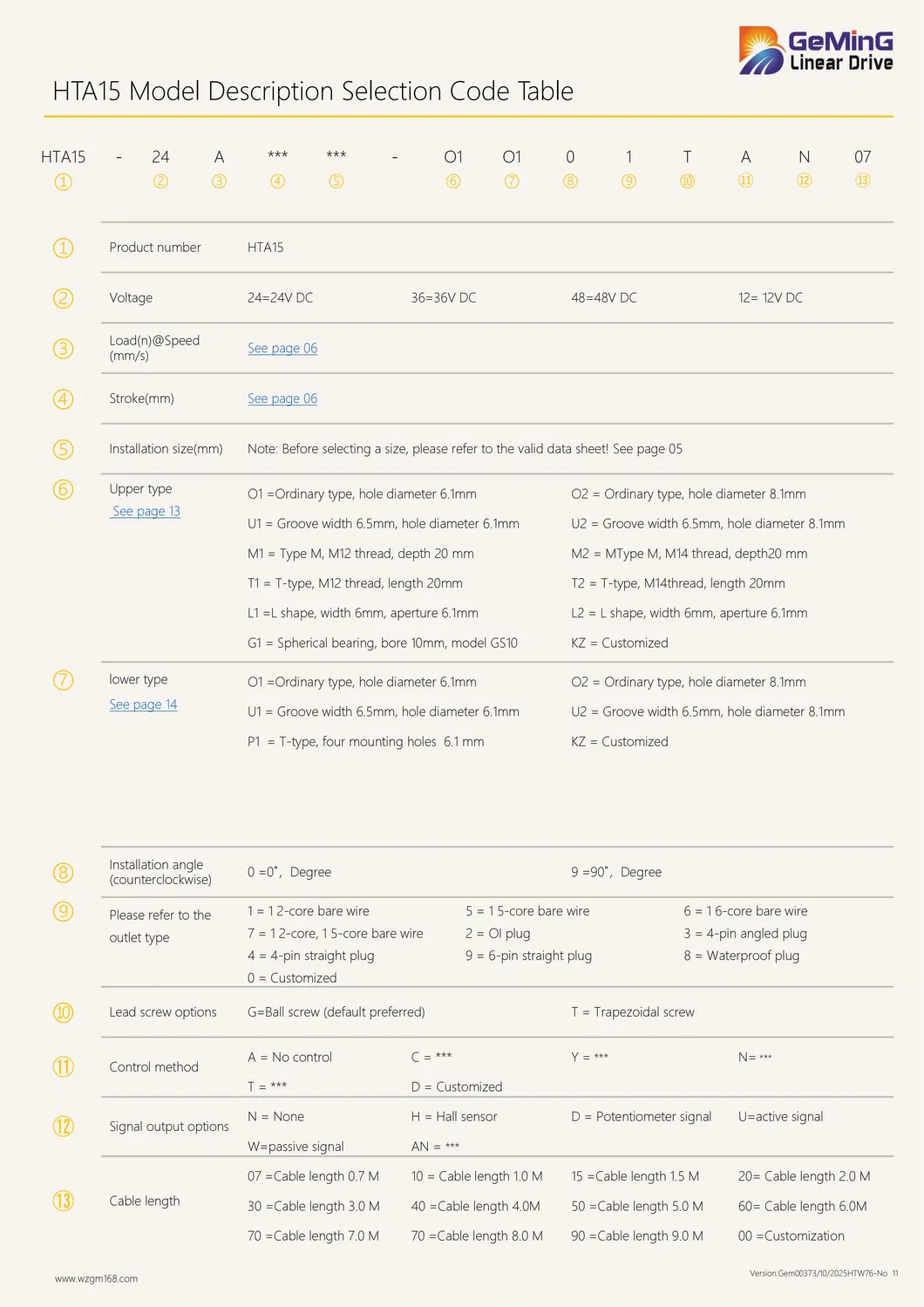

Model Selection & Technical Data

• Professional Solutions

Our technical team provides the right transmission solutions based on your specific parameters. Custom modifications are available to meet unique application needs.

• Engineering Support

Detailed product parameters, CAD, and 3D drawings are available upon request.

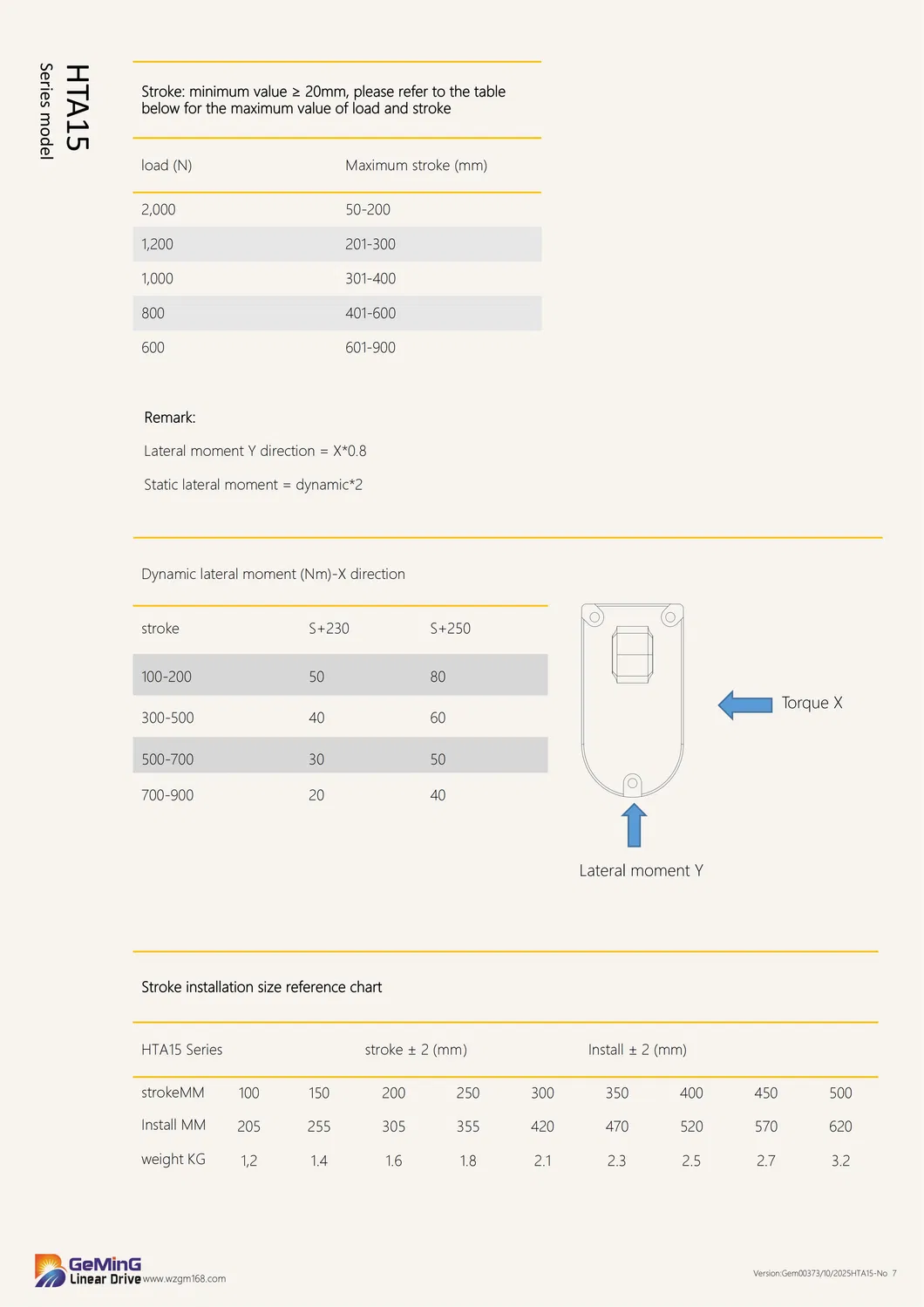

HTA15 Series		Load & Speed Specifications
Load (N)	1800/1200	1200	450	300	250	200	120	80	-
Speed (mm/s)	5	10	15	20	25	30	50	80	-

Stroke (mm)	50	100	150	200	250	300	350	400	450
Size (mm)	155	205	255	305	355	420	470	520	570
Size W/POT (mm)	185	235	285	335	385	470	520	570	620

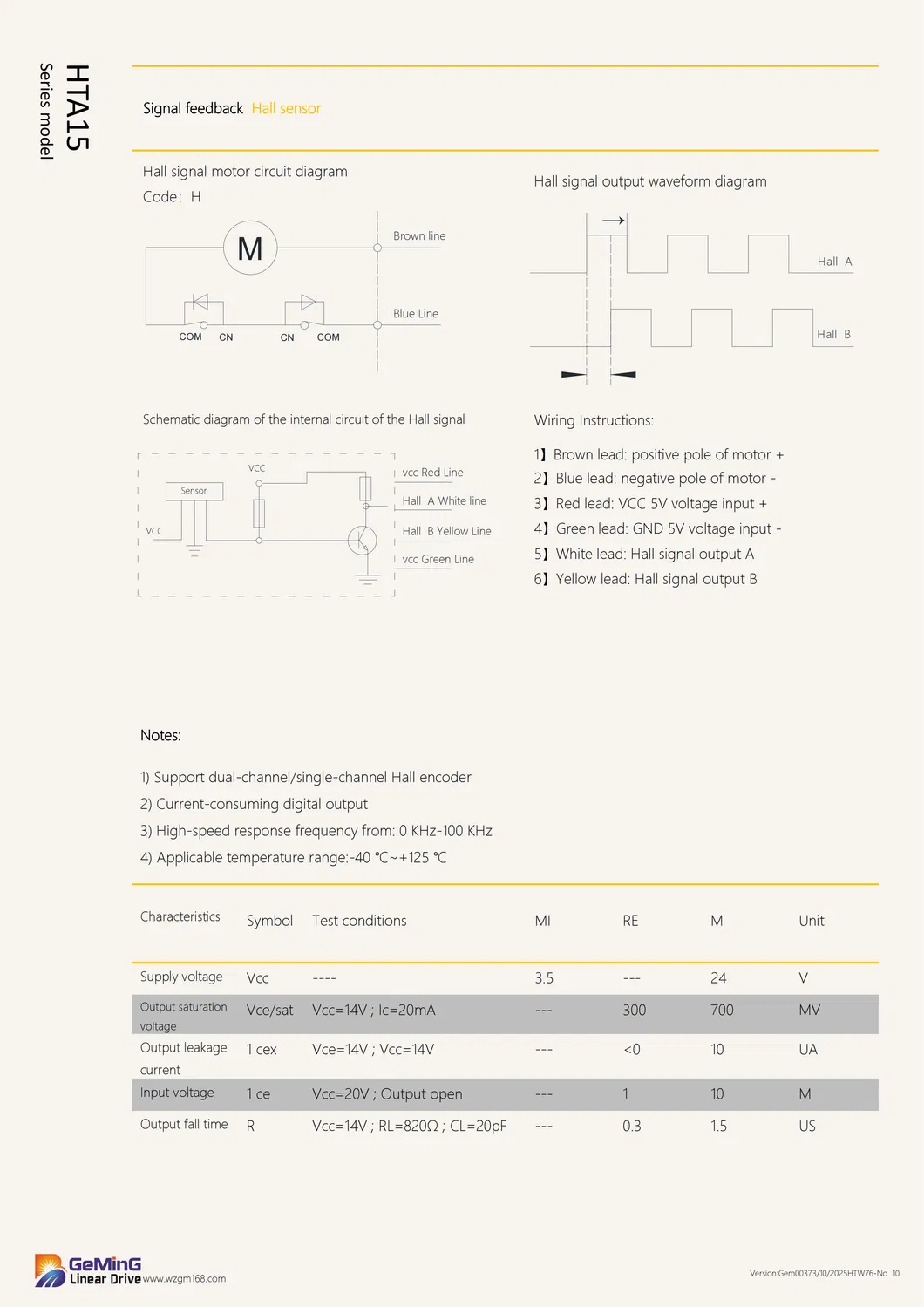

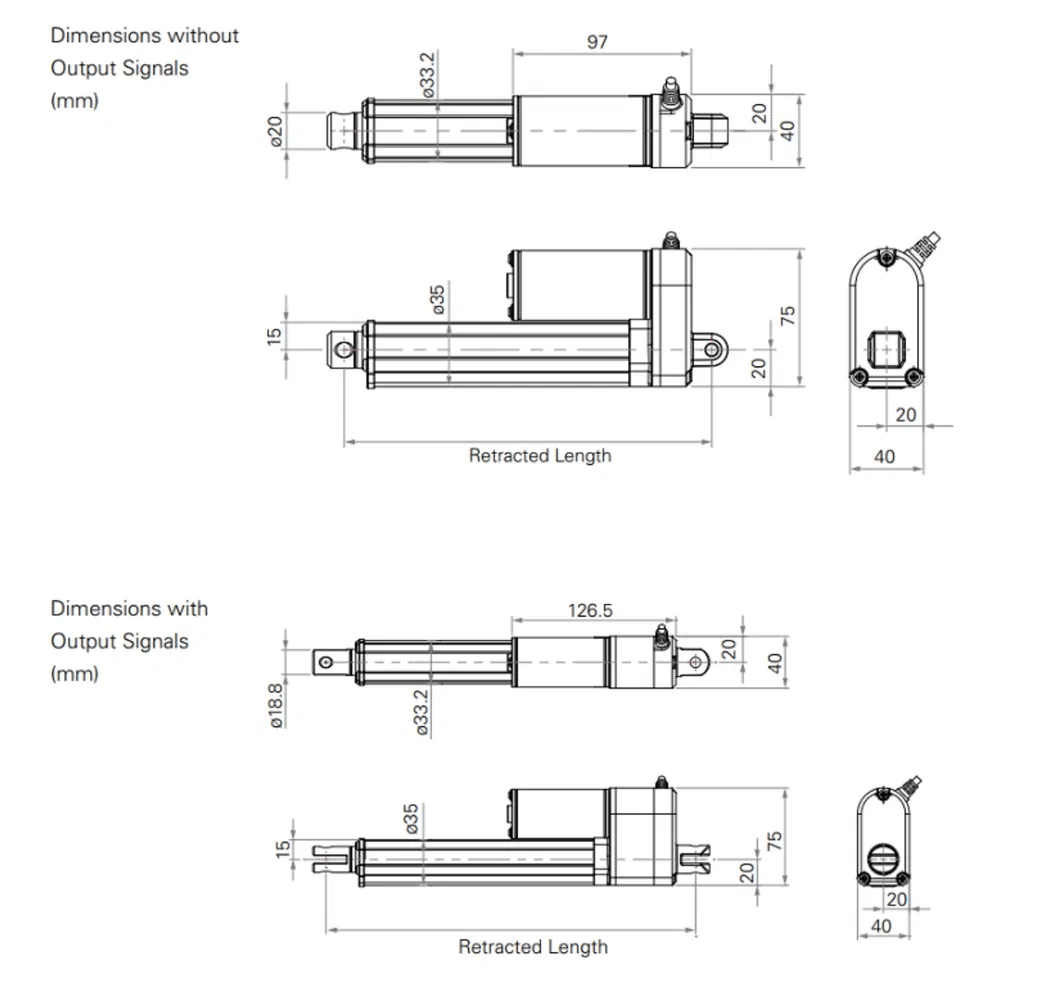

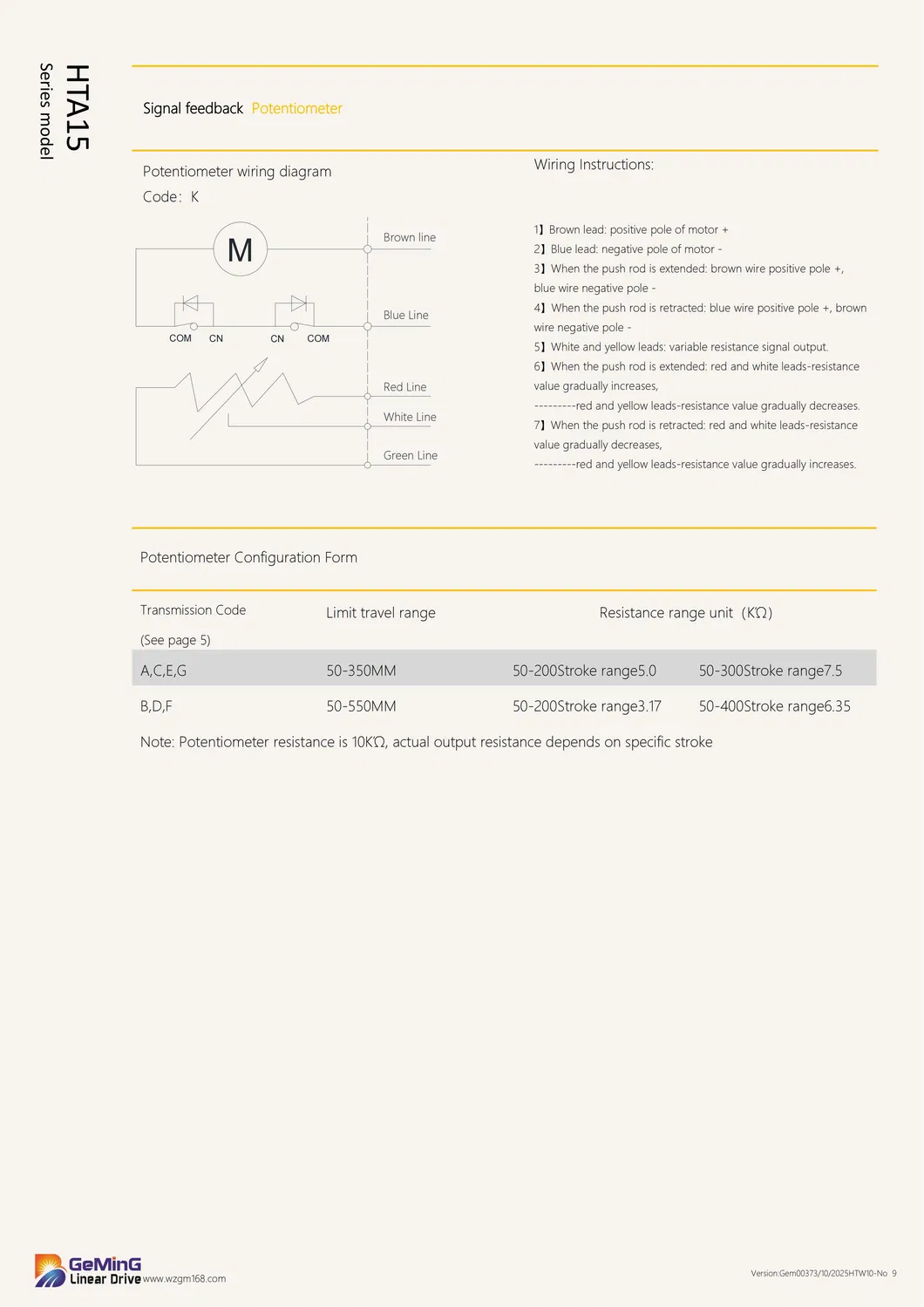

Technical Drawings

Manufacturing Excellence

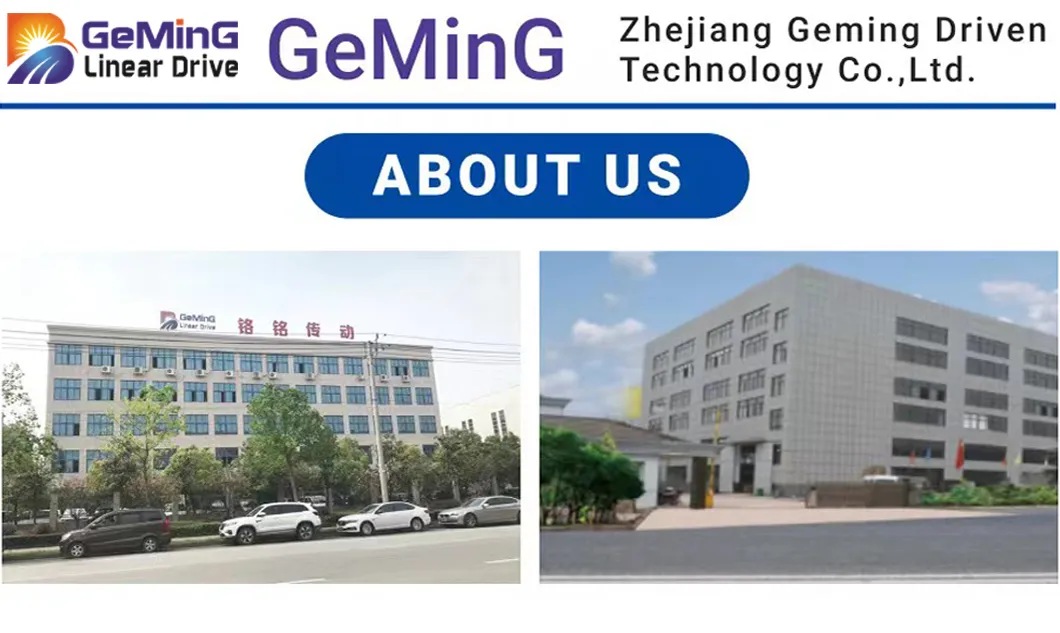

Founded in 2011, the company specializes in R&D and manufacturing linear motion systems. As a leading manufacturer of electric linear actuators and lifting column control systems, we operate multiple manufacturing plants providing global engineering support. Our multinational team is dedicated to providing high-quality, long-life linear motion solutions and exceptional customer service.

Frequently Asked Questions

What are your main products?

We produce a wide range of motion products including lifting columns (medical, furniture, ergonomic), linear actuators (industrial, micro), and six-axis robotic arms.

How to choose a suitable lifting mechanism?

Please provide details such as voltage, speed, stroke, height requirements, motor working mode, and noise level. Our team will recommend the best fit based on your technical specs.

How to choose a suitable linear actuator?

Key factors include installation size, load capacity, stroke length, and speed. Providing pictures or drawings helps us make an accurate recommendation.

Do you offer customized services?

Yes, we can customize installation sizes, shapes, motor types, strokes, and voltages to meet your specific project needs.

Do you have personalized design services?

We provide full design services for actuators, lifting mechanisms, and control systems. While complex designs may involve mold development costs, simple customizations are often free.

What is the typical delivery time?

Standard products generally take 6-20 days. Customized orders may take longer depending on the complexity and order volume.
