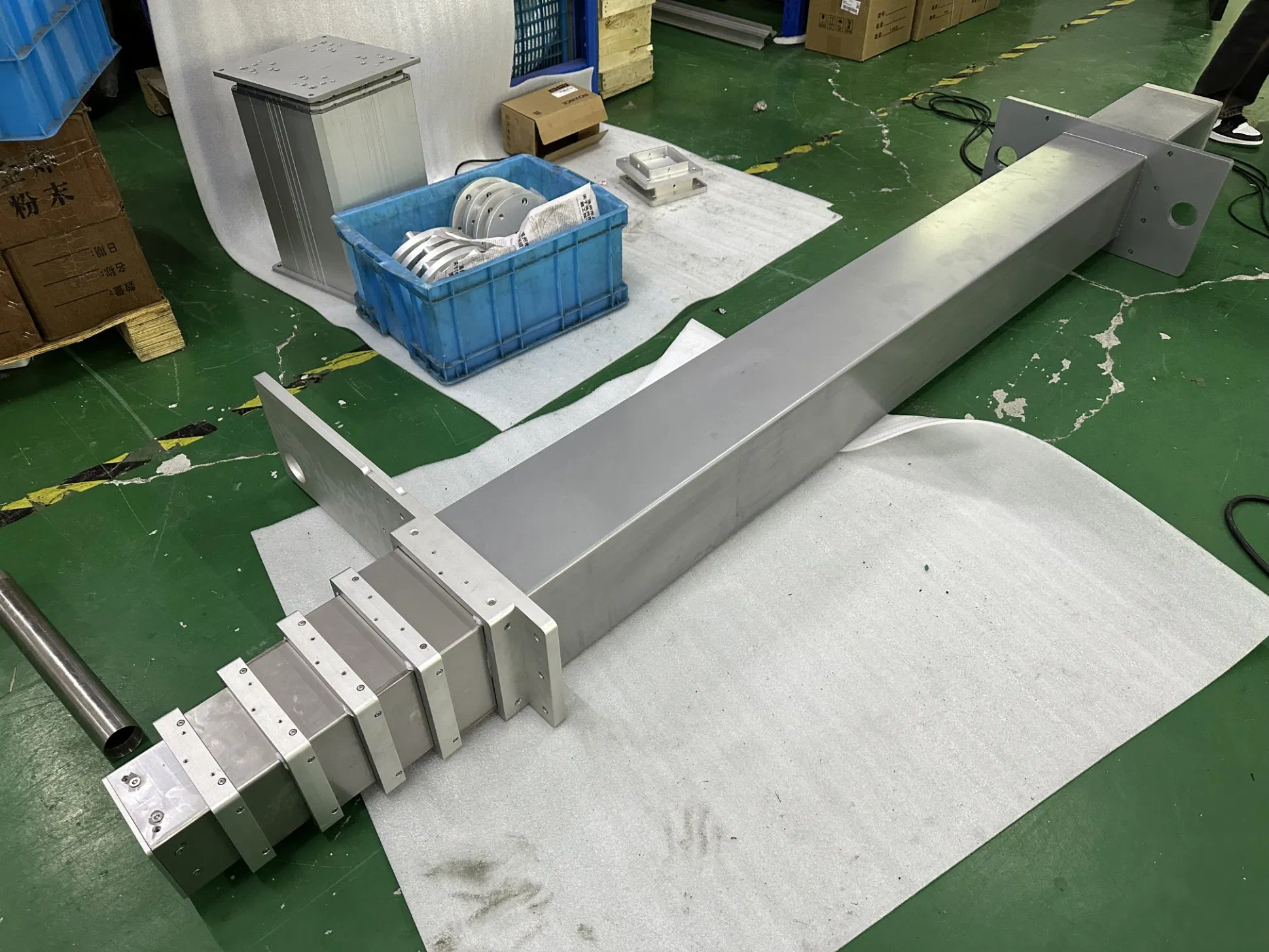

Htd6 220/380V AC Robotic Lift Module for Industrial Use

1 / 5

Htd6 220/380V AC Robotic Lift Module for Industrial Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Overview

Model NO.HTD6

ApplicationWorkshop, Shipboard, Warehouse, Building Cranes

Lift MechanismTelescoping Lift

Maximum Load6000N

Driven TypeDC

CertificationCE, RoHS

Maximum Speed5-100mm/S

FeatureExplosion-Proof

Temperature-45 to +75°C

Product Features

The lifting column series is specifically designed for medical and industrial working environments, such as hospital beds, home care beds, and height-adjustable workstations. Utilizing a three-section outer tube, it provides exceptionally stable movement, achieving the smallest possible installation size while maintaining longer stroke options.

Model Selection & Customization

• Professional Consulting: Our technical team will assist in choosing the right model and transmission solutions based on your specific parameters.

• Technical Requests: Catalogues, CAD, or 3D drawings are available upon request.

• Customized Solutions: Standard products can be modified or fully customized to meet unique application needs.

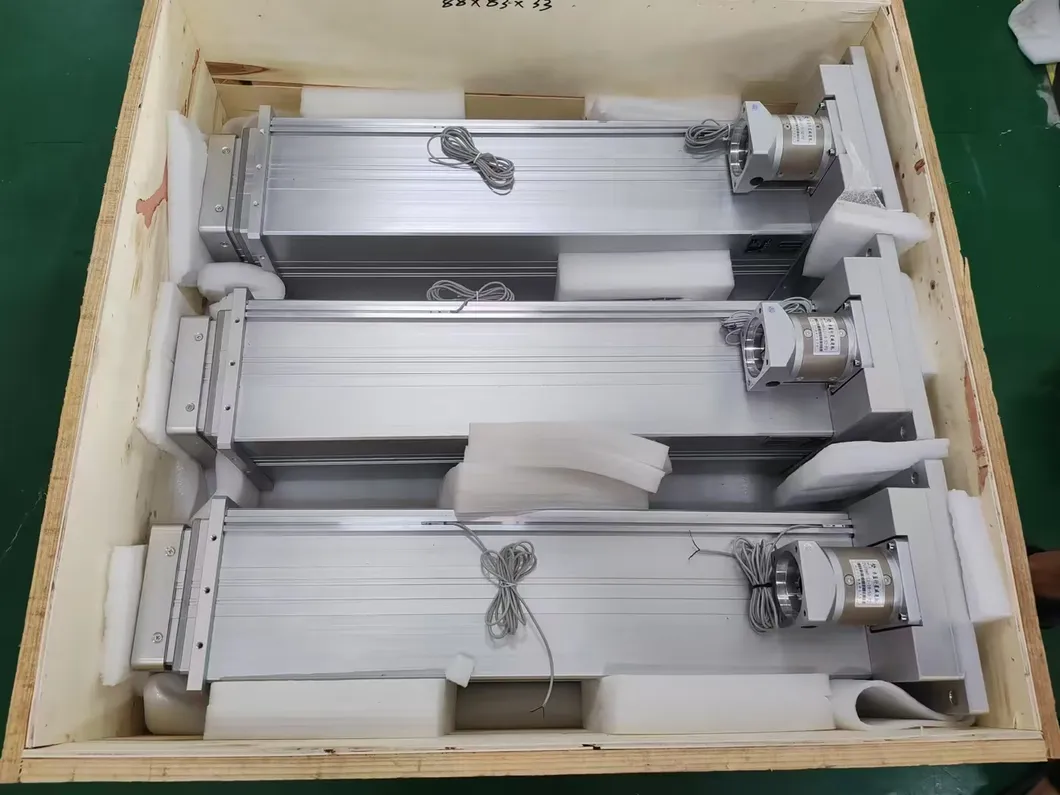

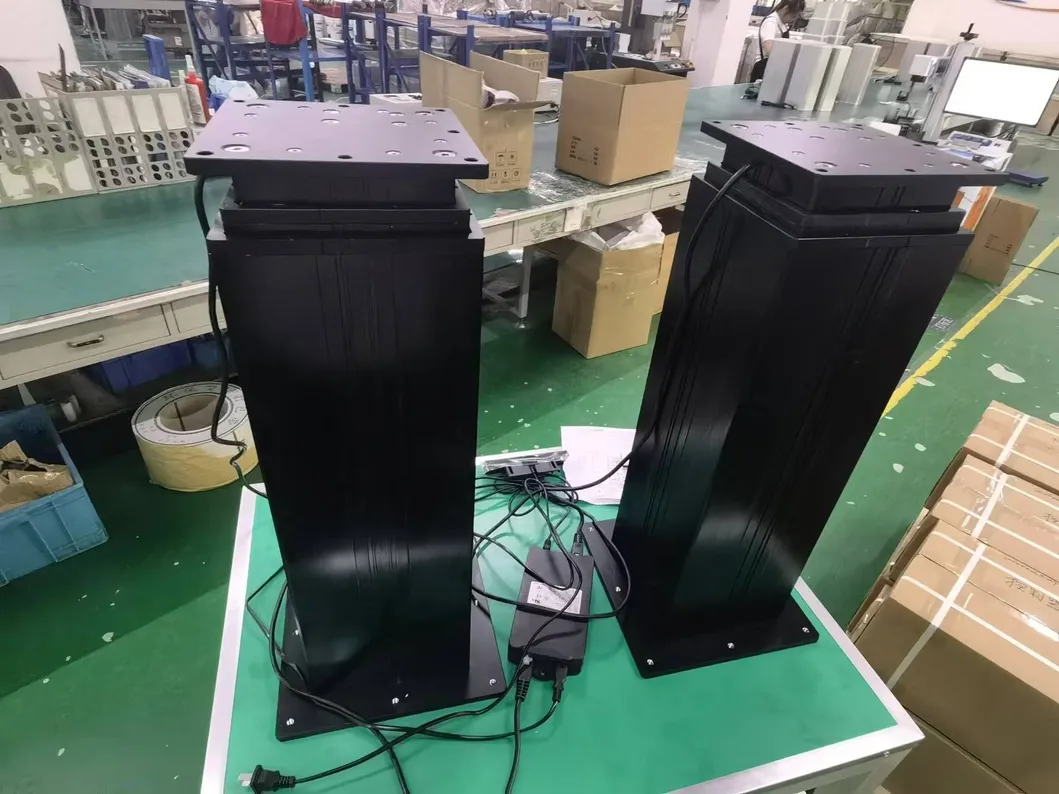

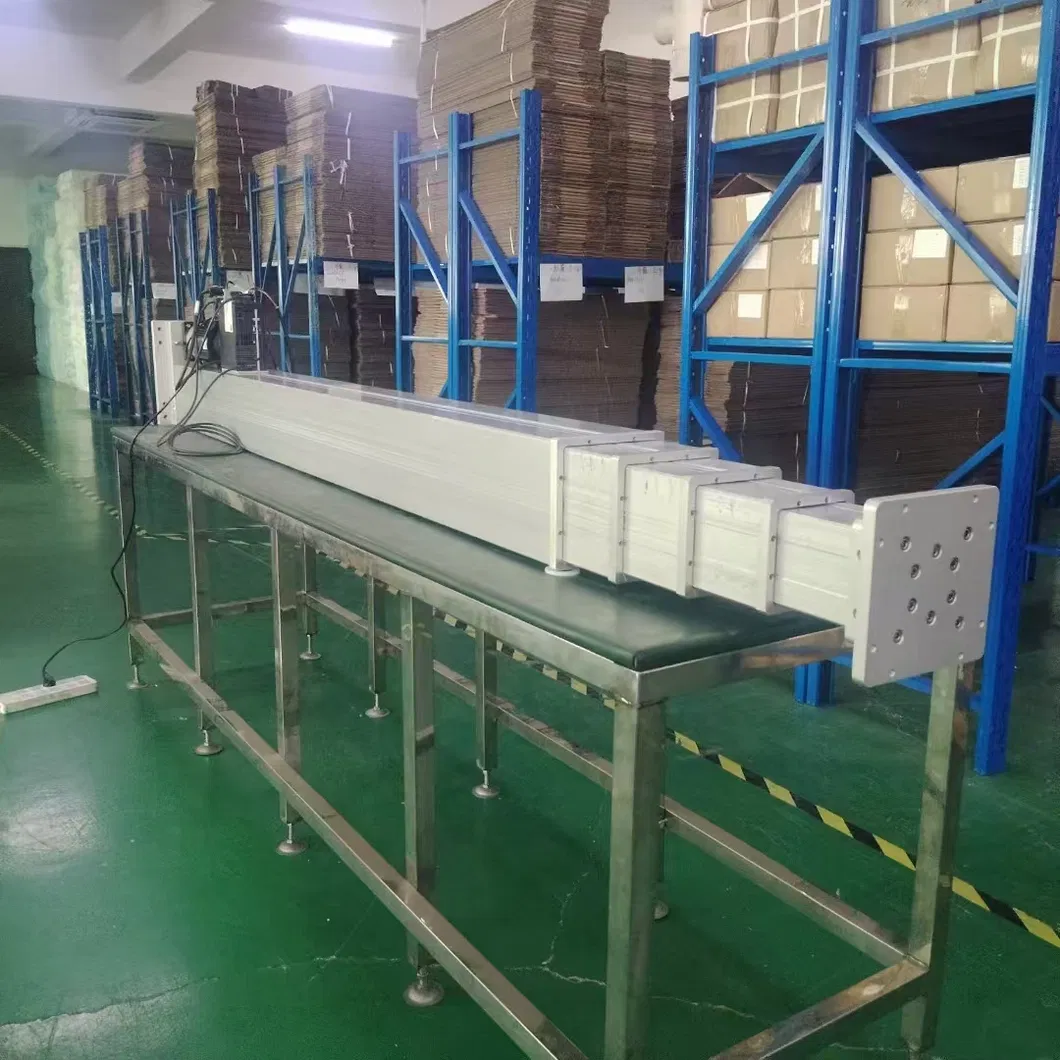

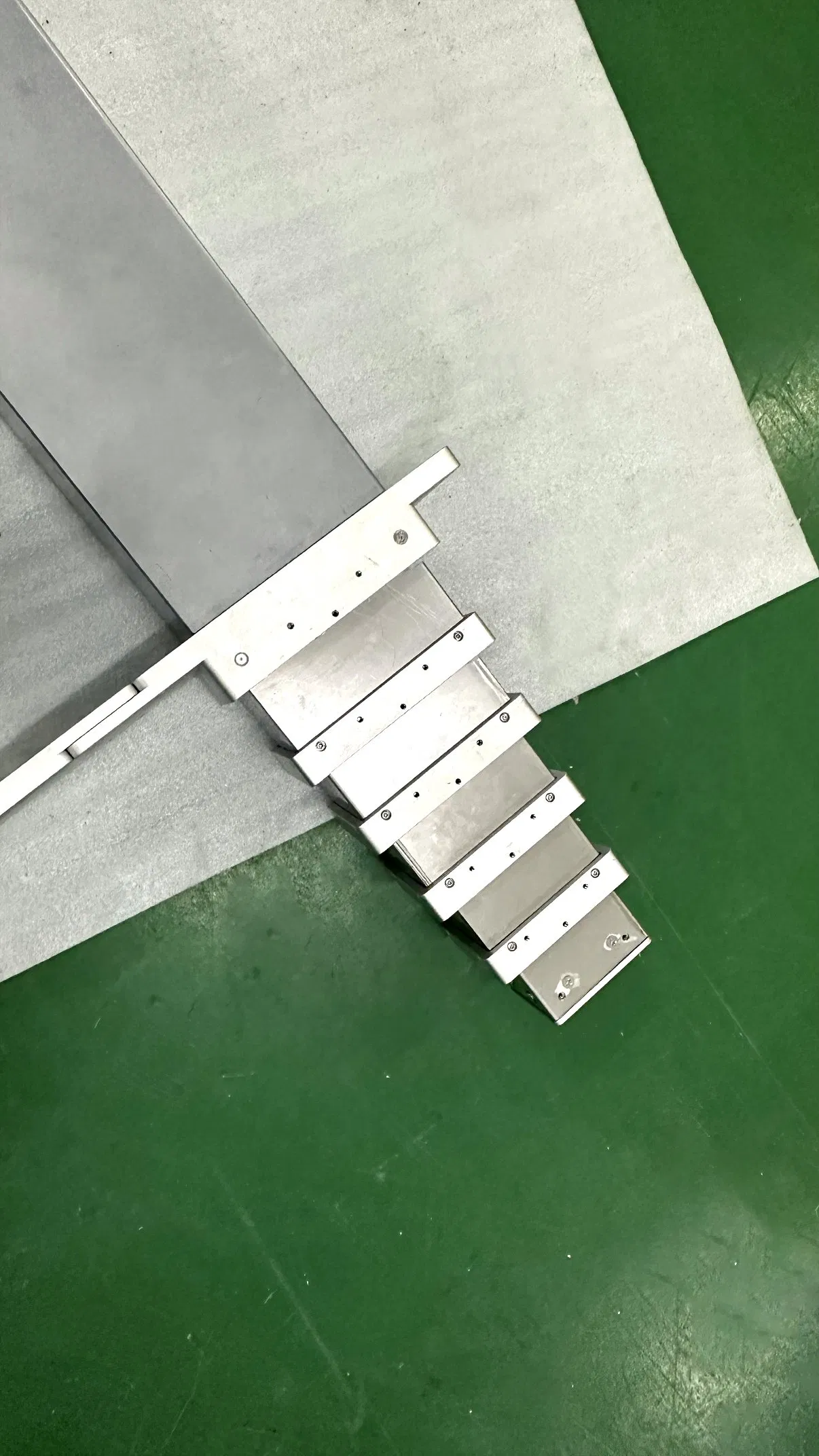

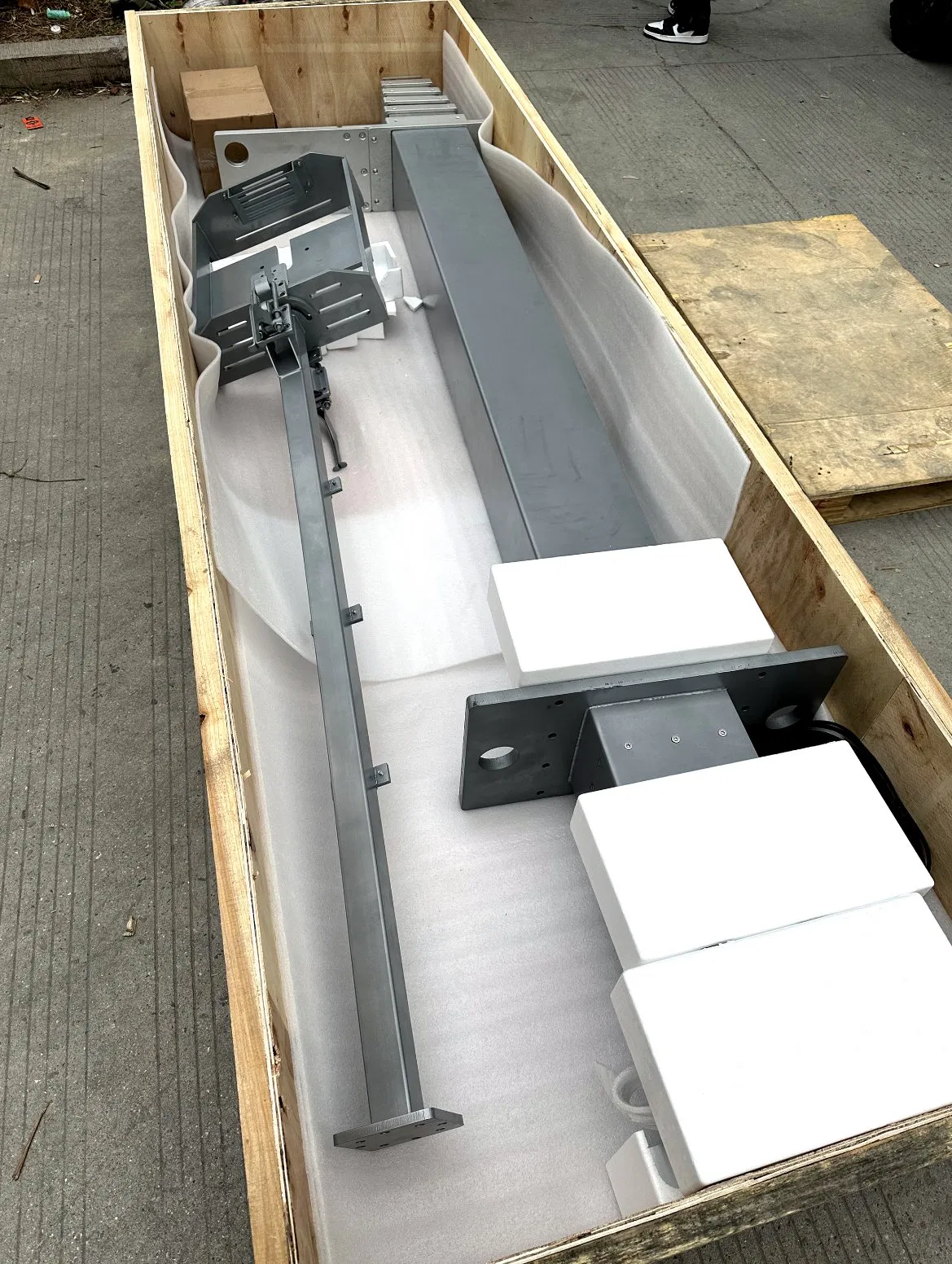

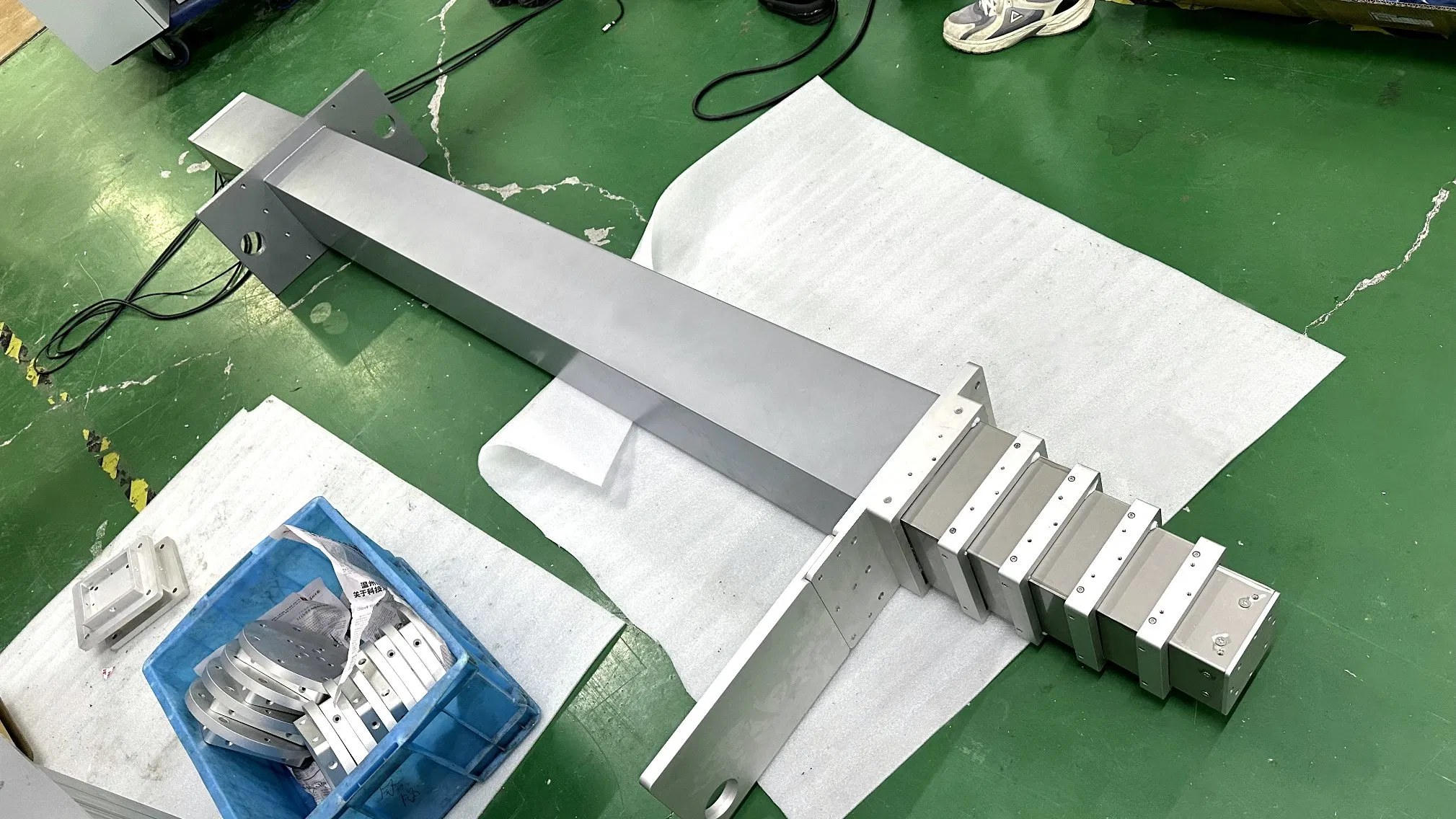

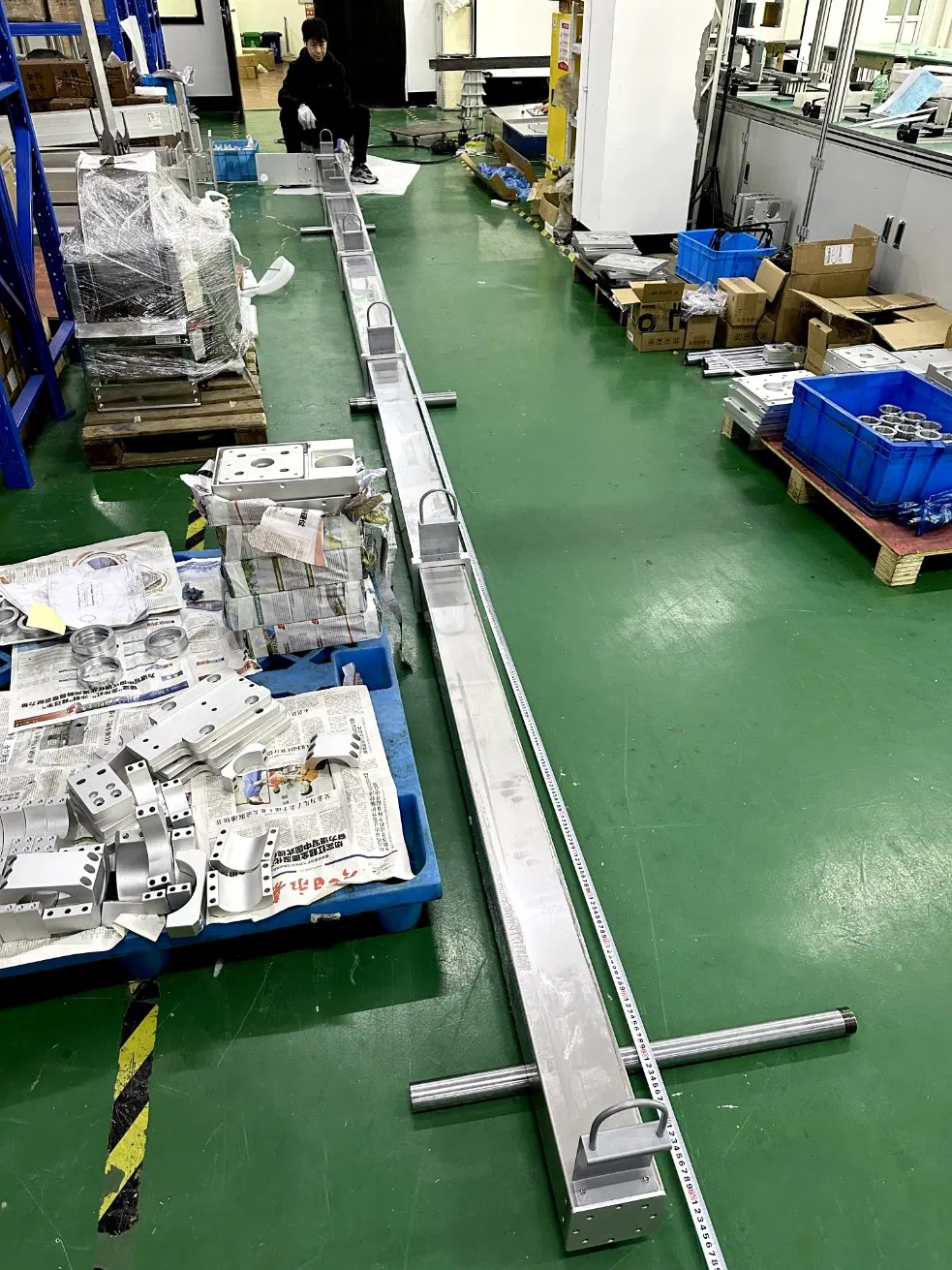

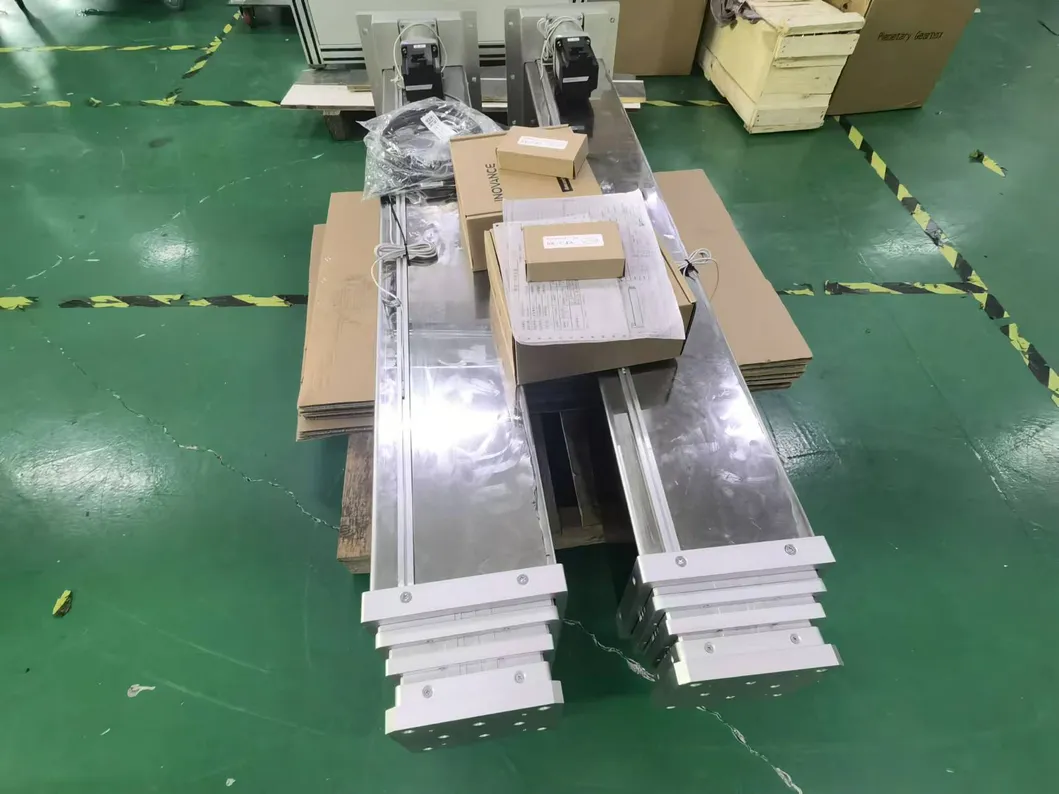

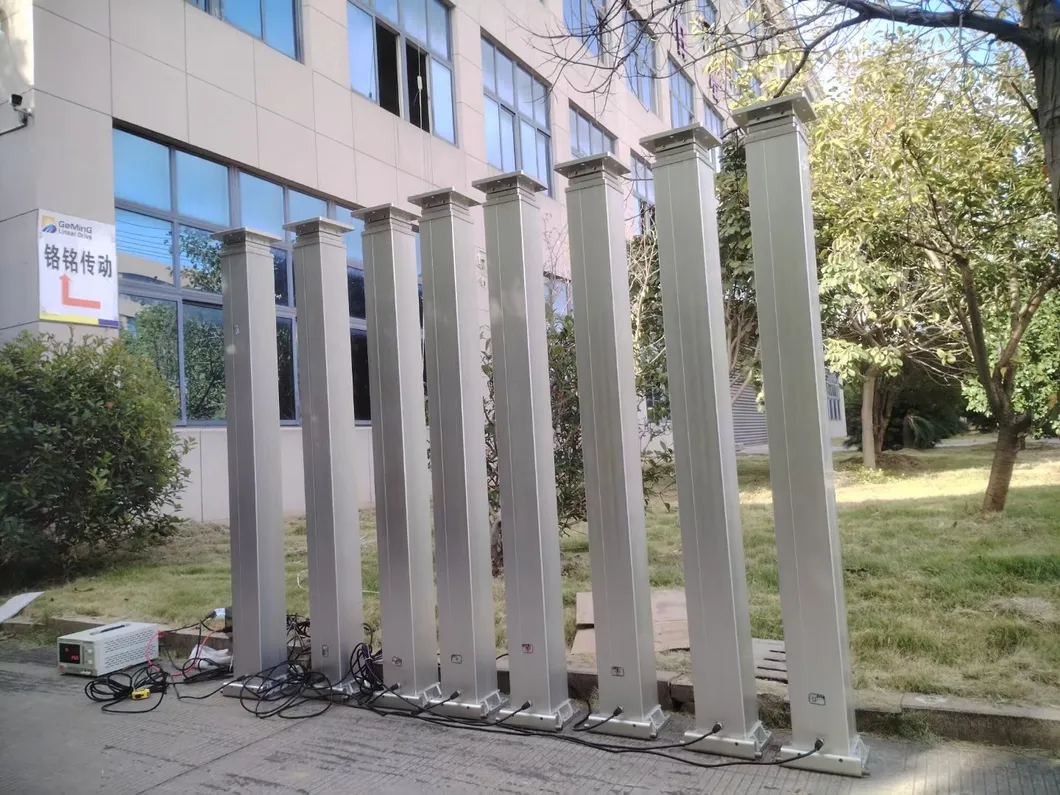

Detailed Product Photos

Technical Specifications

Voltage	12, 24, 48V DC, 220V AC
Motor Options	DC Servo Motor, AC Servo Motor
Max Thrust / Pull	6,000N / 4,000N
Max Speed (Load)	5-100 mm/s
Min Installation Size	Stroke / 2 + 200mm
Dynamic Lateral Moment	1,000Nm
Static Lateral Moment	1,800Nm
Finish	Aluminum / Silver Gray
Noise Level	48~52 dB
Screw Selection	Ball screw, Trapezoidal screw
Safety Compliance	ISO9001-2008, CE, RoHS

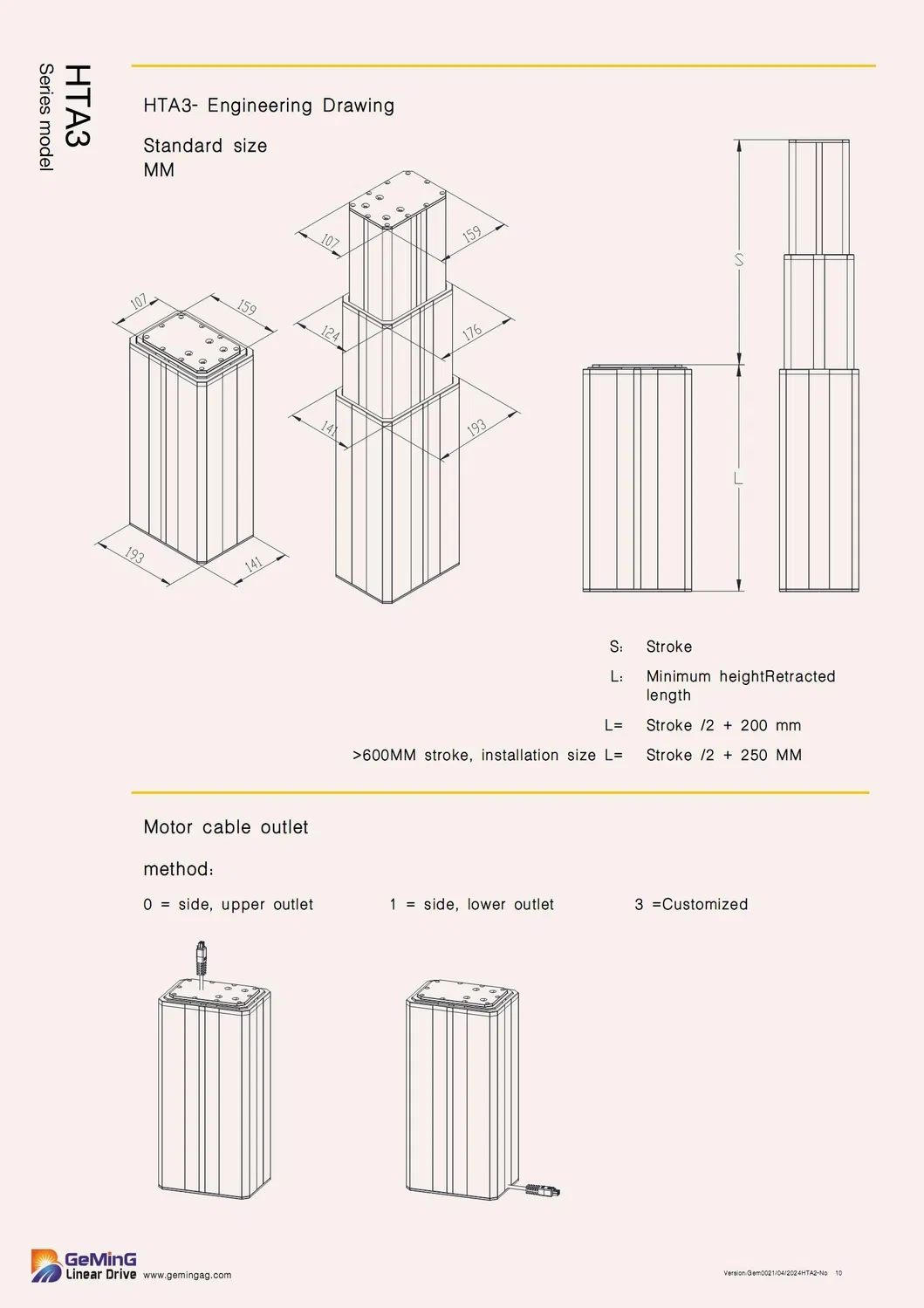

Engineering Drawings

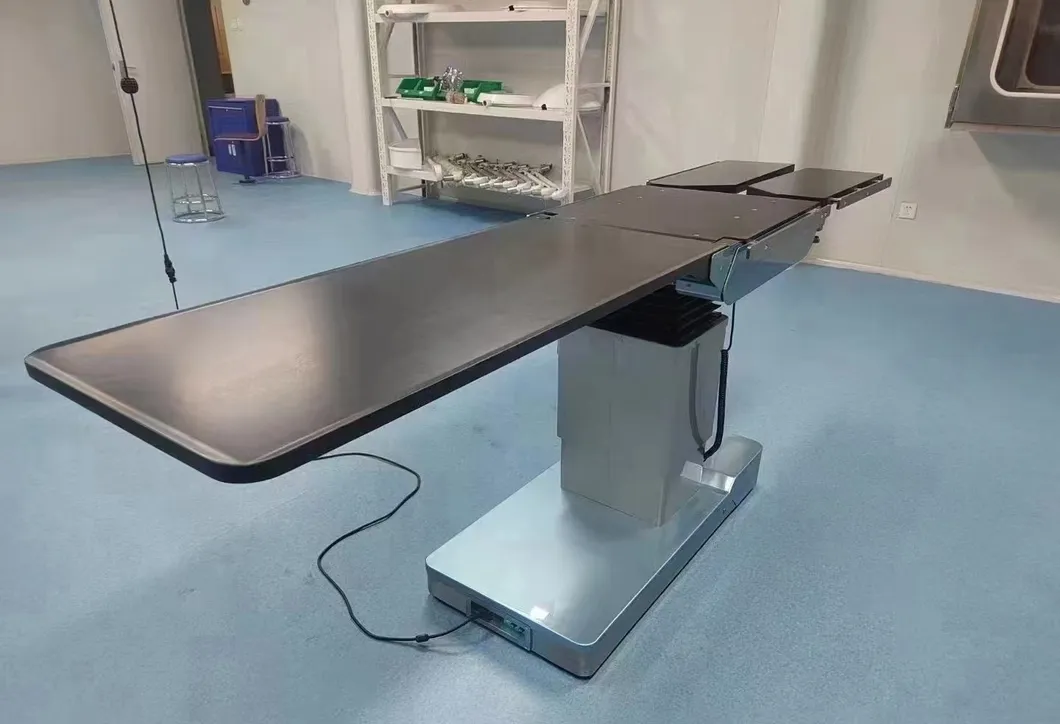

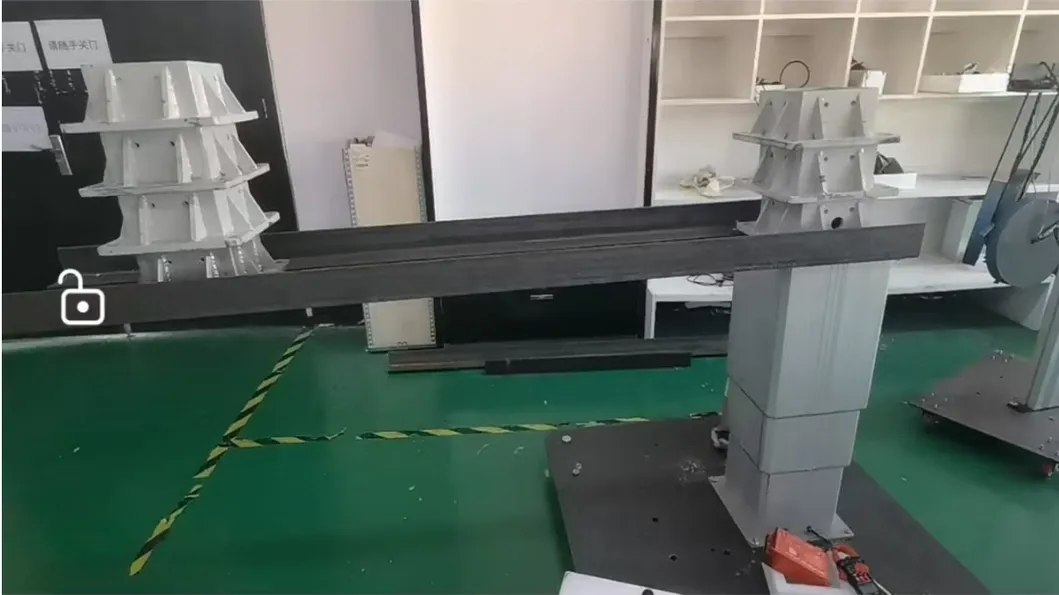

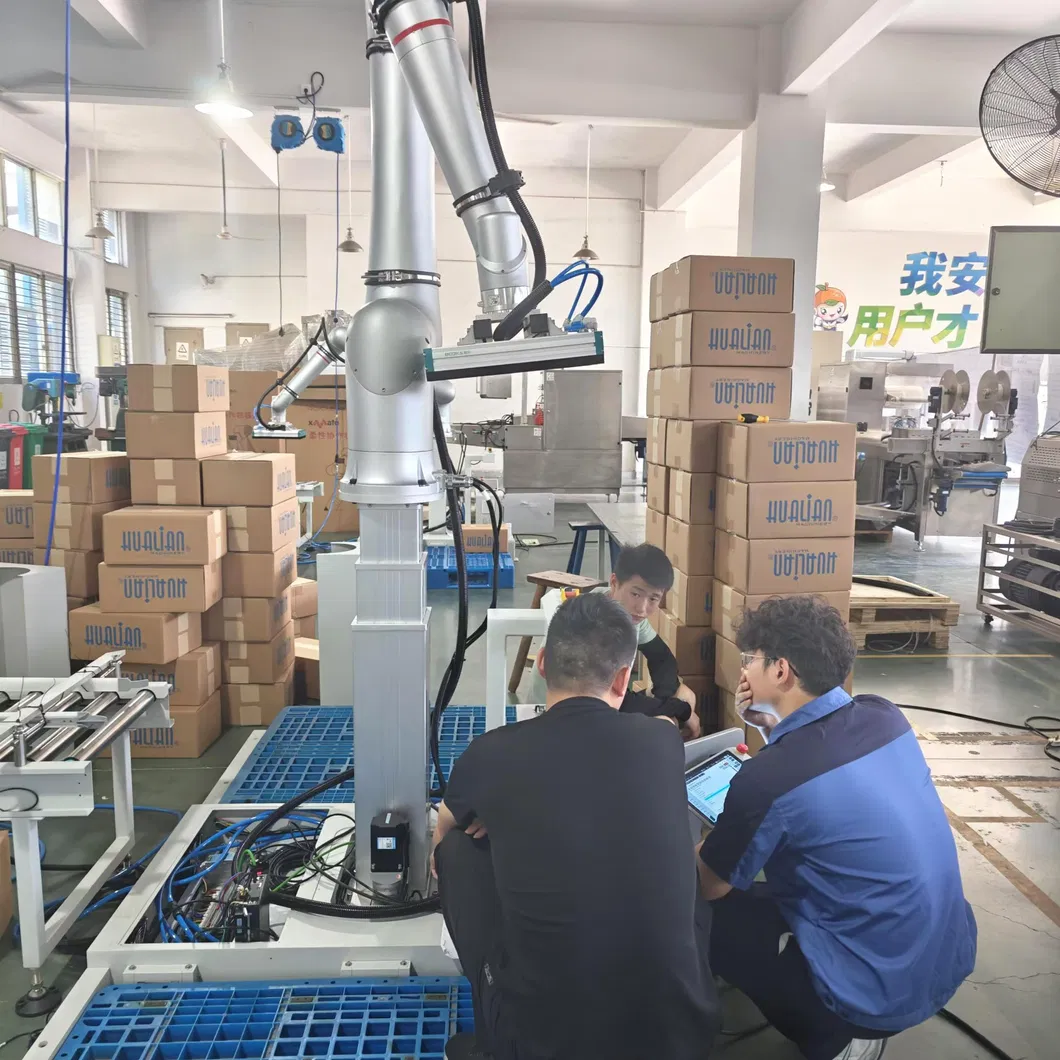

Industrial Applications

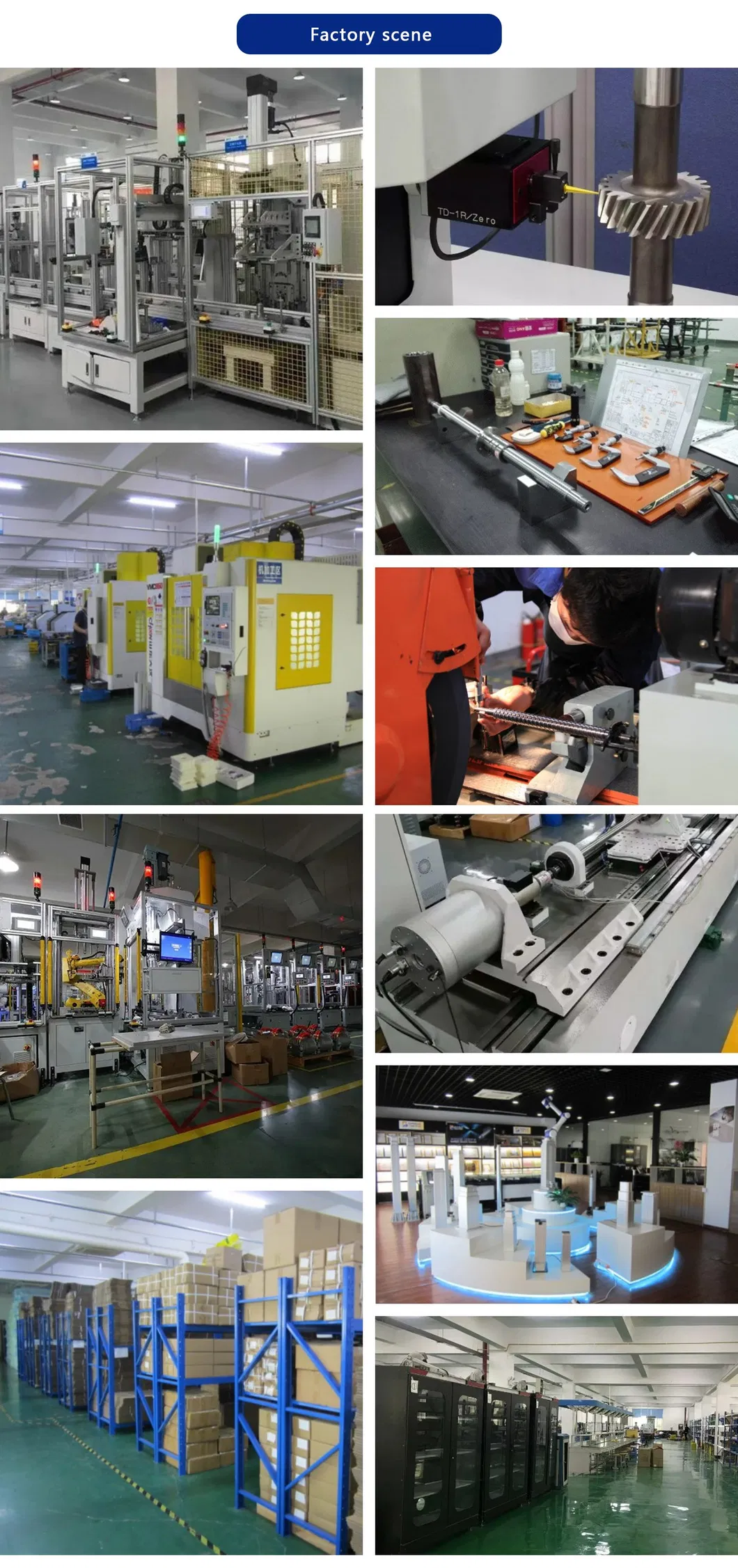

Manufacturing Excellence

Founded in 2011, our company specializes in the R&D and manufacturing of linear motion systems. We have become a leading manufacturer of electric linear actuators, electric lifting column control systems, and related motion technologies. With multiple manufacturing plants and a global network of agents, we provide engineering support and high-quality motion solutions worldwide.

Frequently Asked Questions

What are your primary product lines?

We produce a wide range of motion solutions including industrial lifting columns, medical-grade actuators, ergonomic table systems, micro actuators, and robotic motion modules.

How do I choose the correct lifting mechanism for my project?

Selection depends on key factors: required voltage, speed, stroke length, initial/maximum height, duty cycle, and noise requirements. Providing a drawing or application photo helps our team recommend the perfect fit.

Can linear actuators be customized?

Yes, we offer extensive customization for installation dimensions, motor types, stroke lengths, and specialized environmental protections to meet your exact specifications.

Do you offer personalized design services for new products?

Our engineering team is capable of designing bespoke actuators and control systems. While complex designs may involve mold development costs, simple modifications are often provided without extra fees.

What is the typical lead time for orders?

Regular standard products generally ship within 6-20 days. Customized solutions may take longer depending on the complexity of the design and order volume.

Are your products certified for international markets?

All our motion systems are designed to comply with global standards, including CE and RoHS specifications, and are manufactured under ISO9001-2008 quality management.
