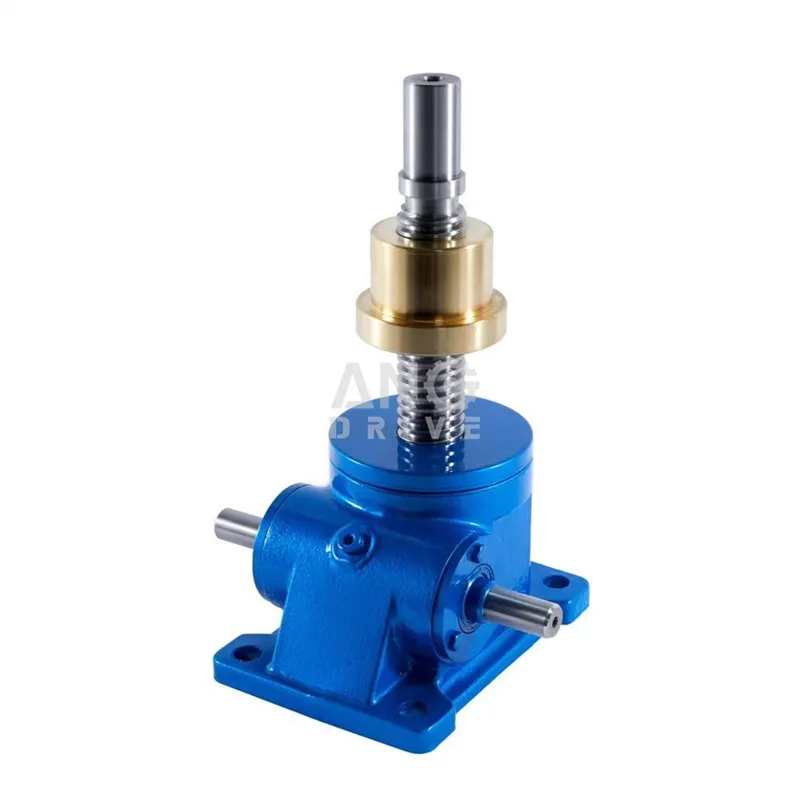

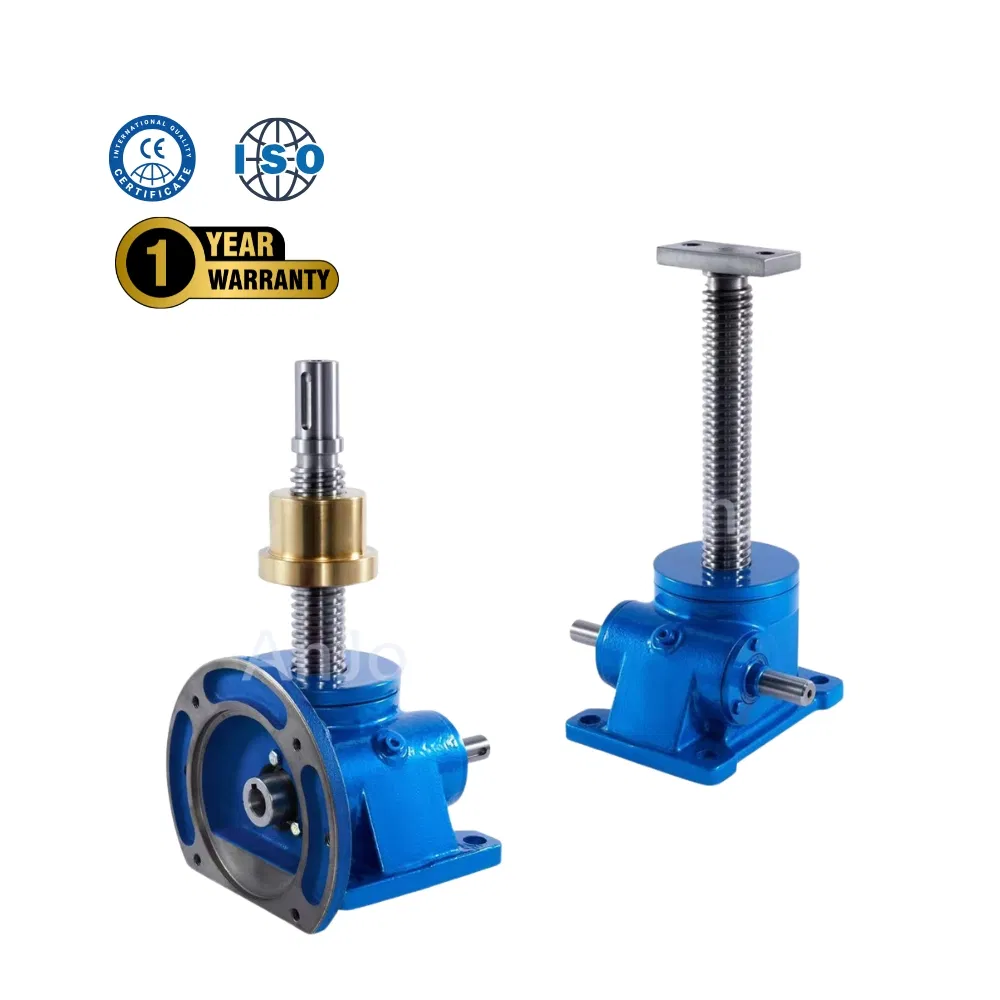

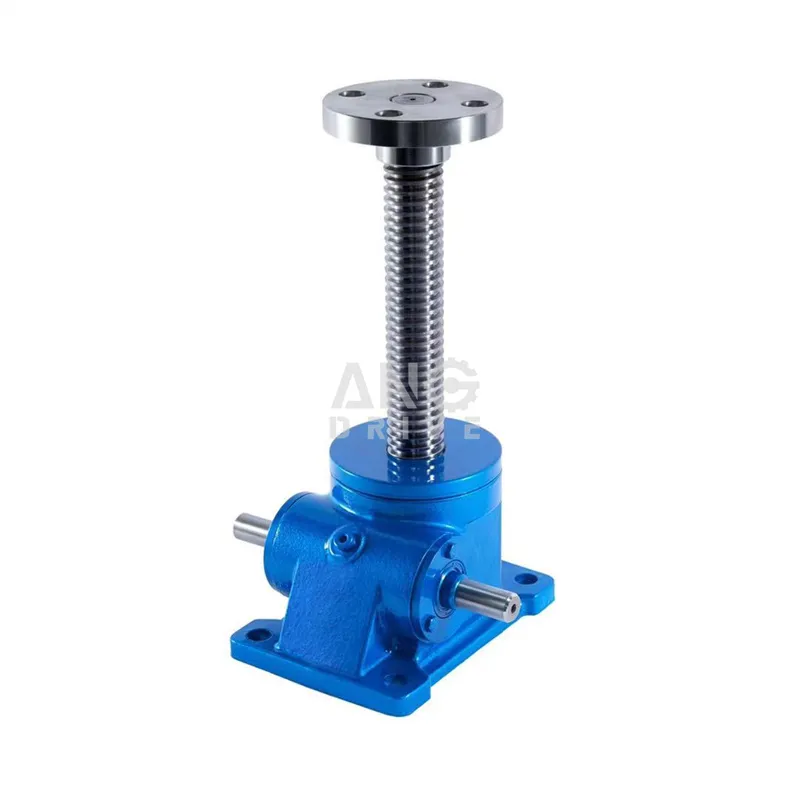

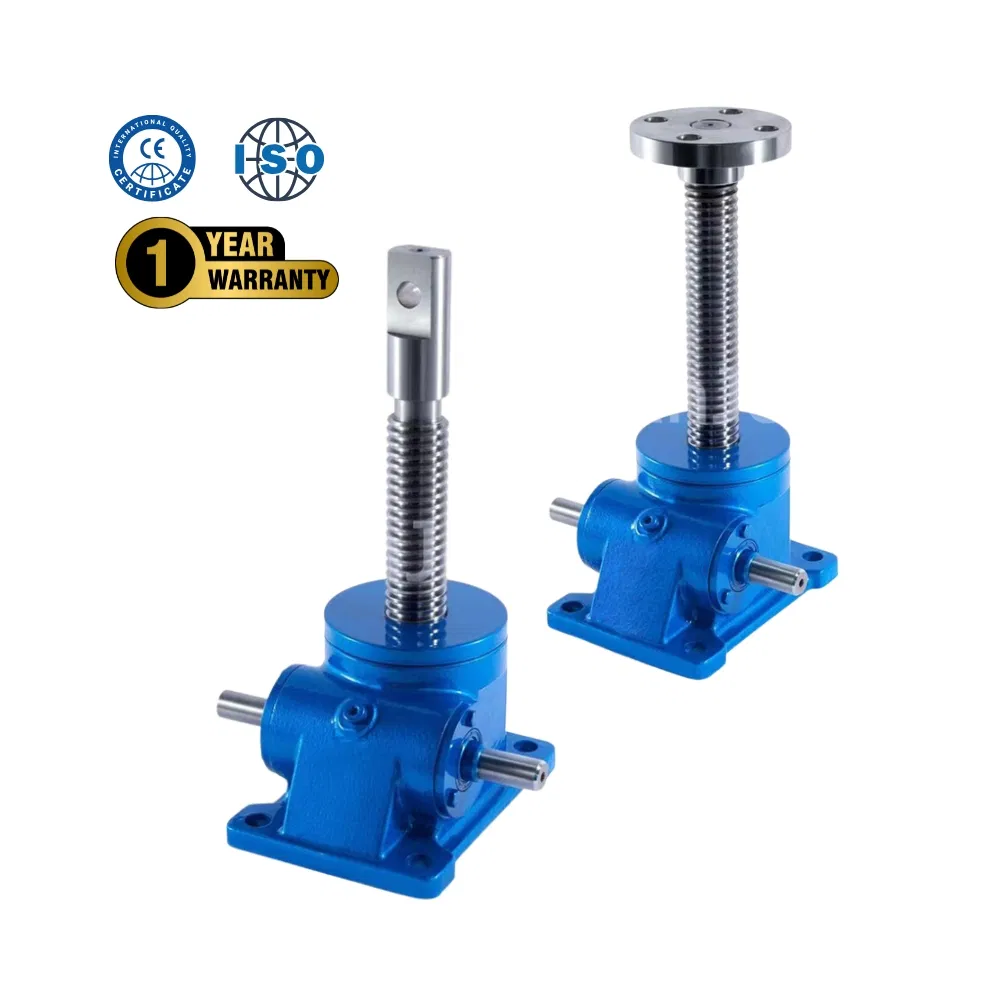

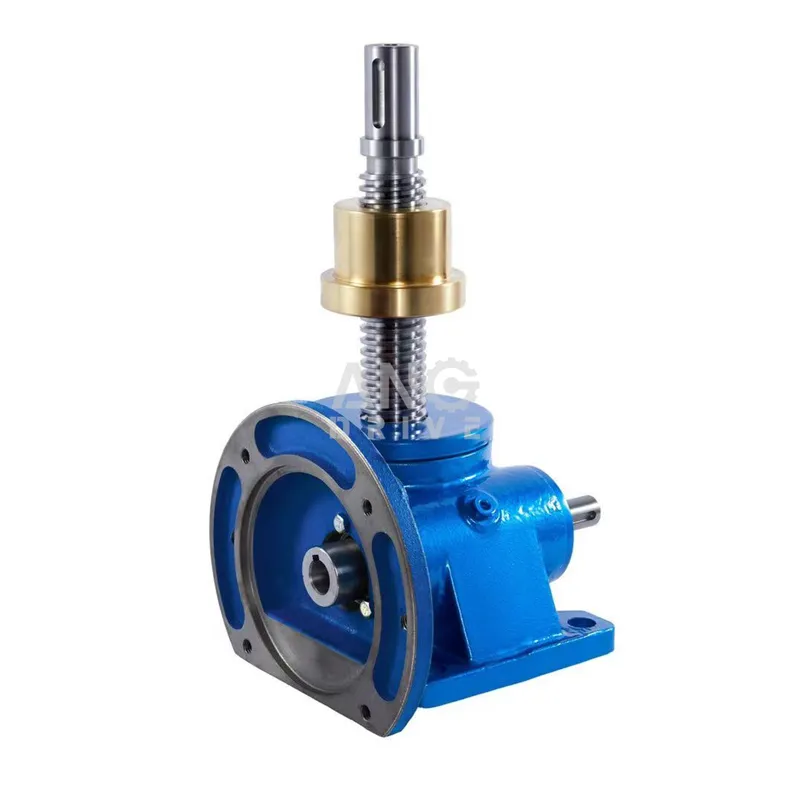

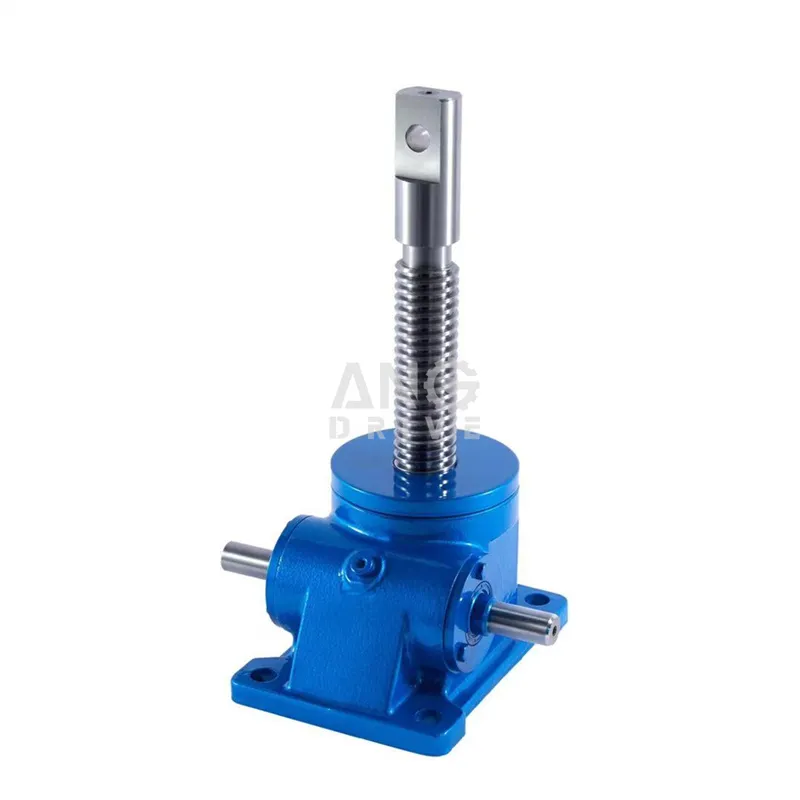

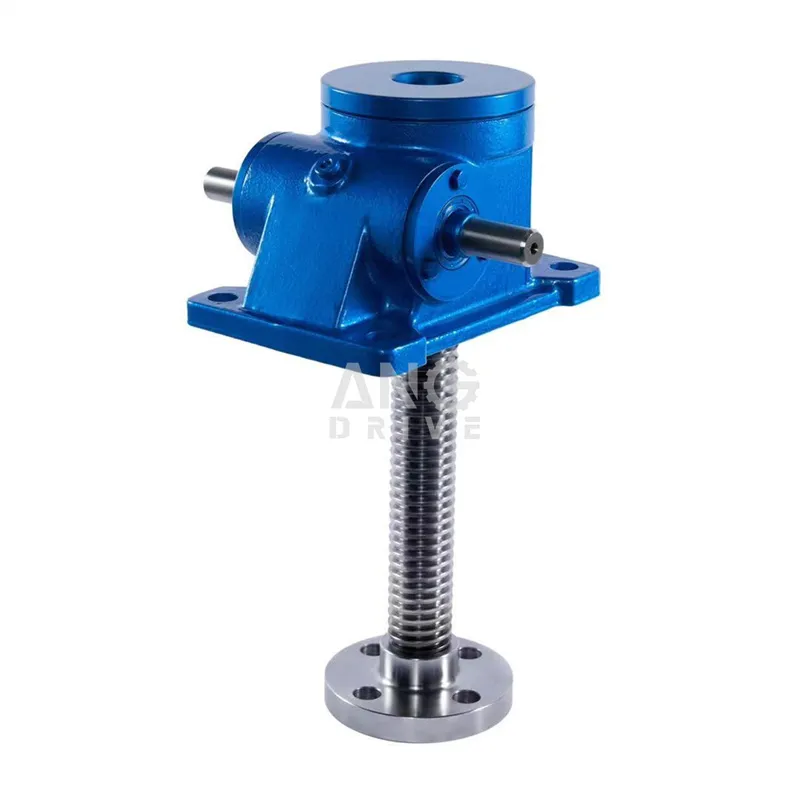

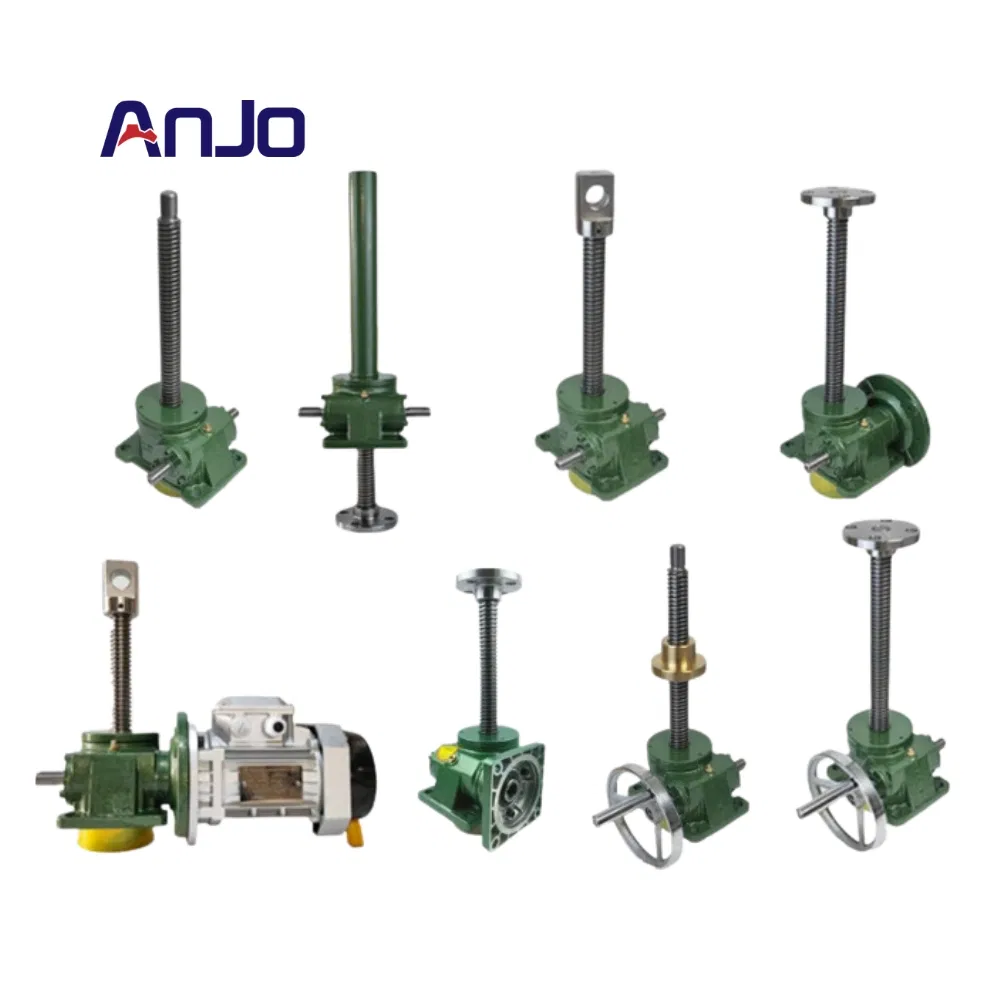

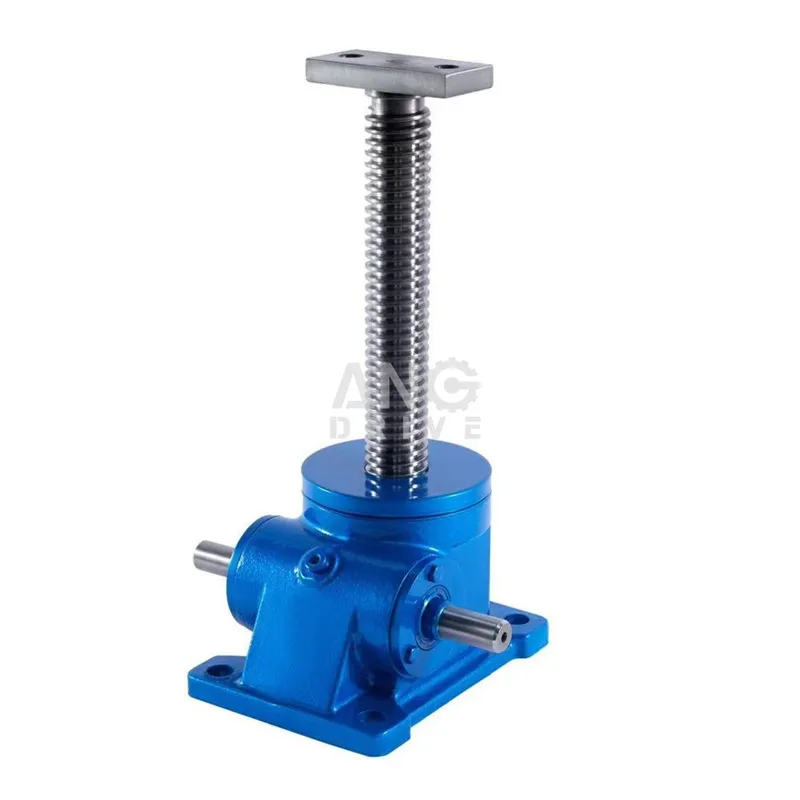

Swl 1t 5t Manual Screw Lifter Customized Lifting Height 300mm 800mm Worm / Helical Gear Screw Jack

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

■ Basic Information

Model NO.

SWL

Type

Mechanical Jack

Structure

Screw Jack

Capacity

1 to 120 Ton

Power Source

Manual or Motor Driven

Certification

CE, ISO 9001:2008

Worm Gear Ratios

5:1 to 32:1

Screw Diameter

14mm to 160mm

Travel Length

10mm - 10000mm

Input Speed

300rpm - 1500rpm

■ Product Description

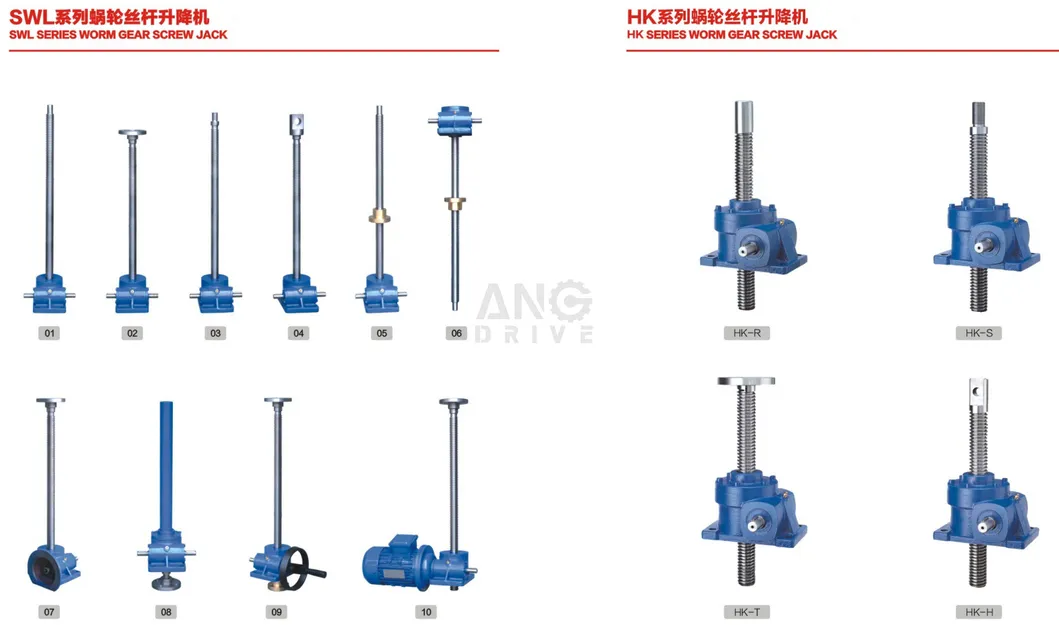

SWL 1T 5T Manual Screw Lifter Customized Worm / Helical Gear Screw Jack

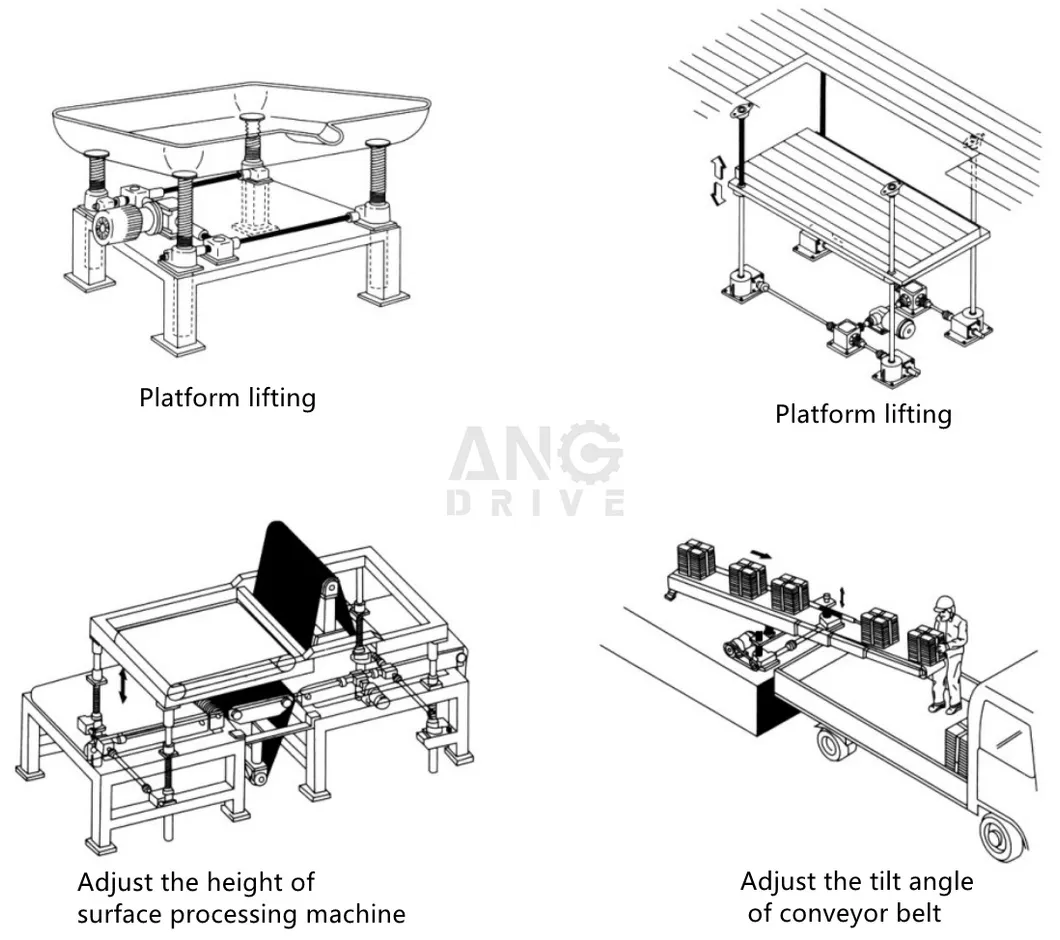

Suitable for heavy load, low speed, and low frequency applications.

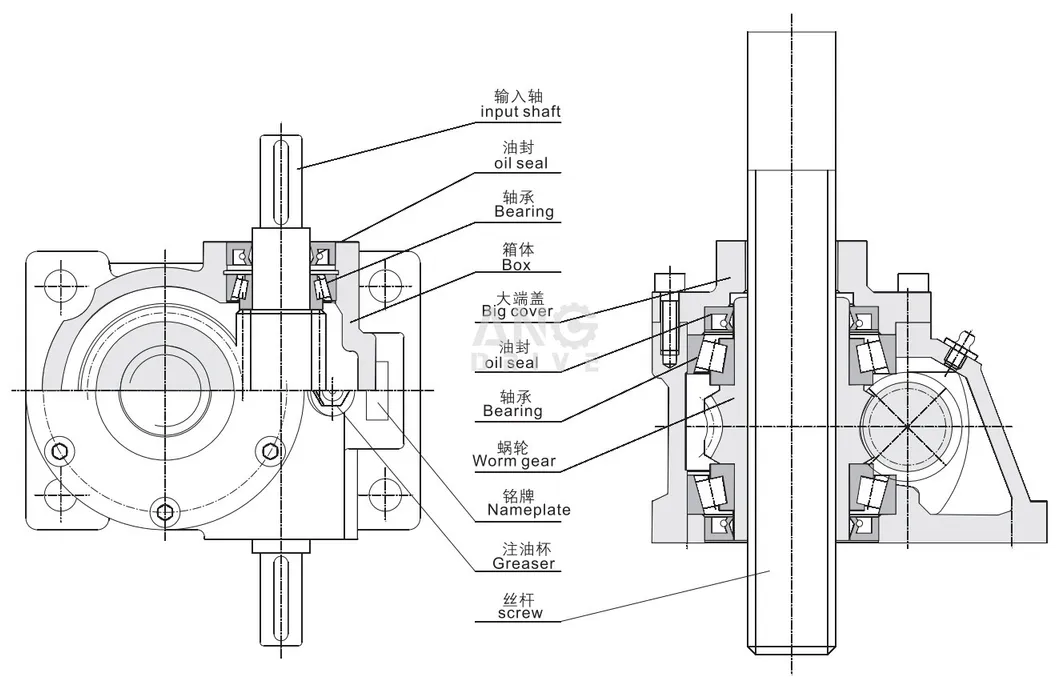

Main components: precision trapezoid screw pair and high precision worm gear pair.
Compact design, small volume, lightweight, and wide drive sources.
Features low noise, easy operation, and convenient maintenance.

■ Product Parameters

Model	Screw Thread Size	Max Lifting Weight (One)	Max Lifting Strength (kN)	Max Pull Force (kN)	Weight w/o Stroke (kg)	Screw Weight (per 100mm)
SWL2.5	Tr30*6	750KG	25	25	7.3	0.45
SWL5	Tr40*7	1500KG	50	50	16.2	0.82
SWL10/15	Tr58*12	2500/3750KG	100/150	99	25	1.67
SWL20	Tr65*12	5000KG	200	166	36	2.15
SWL25	Tr90*16	6250KG	250	250	70.5	4.15
SWL50	Tr120*20	12500KG	500	500	420	7.45
SWL100	Tr160*23	23000KG	1000	1000	1010	13.6
