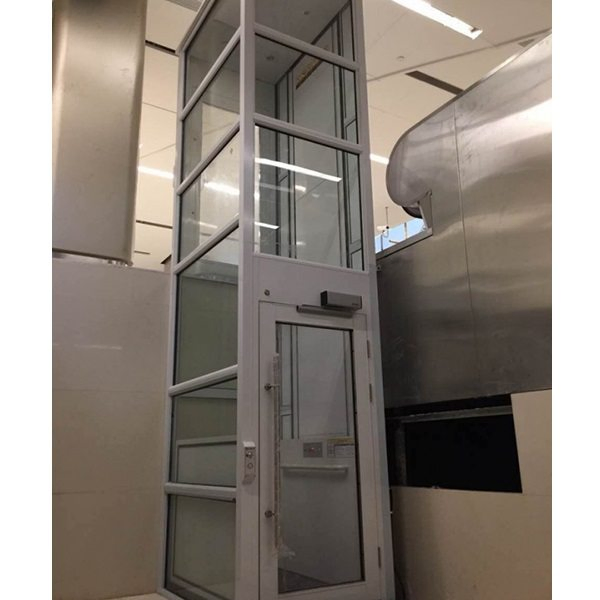

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

1 / 5

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

Customization:	Available
After-sales Service:	24 Hours Technical Support
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

Y-160

Driving Type

Hydraulic or Screw Type

Capacity

250kg

Persons

2-3 Persons

Speed

70mm/S

Control Mode

Electric

Position

Outdoor or Indoor

Elevator Door

Customized

Lifting Height

1m-10m

Production Date

30 Days After Deposit

Usage

Indoors and Outdoors

Package

Export Wooden Box Packaging

Product Overview

The hoistway lift platform has the characteristics of stable running speed, high safety, easy installation, small footprint, and no need for machine pits. Compared with traditional home elevators, the cost is lower, and it is highly efficient. The platform space can accommodate wheelchairs and escorts simultaneously, helping individuals with mobility challenges solve the trouble of navigating stairs. This equipment can also replace a standard home elevator for lifting people and goods below 3 floors.

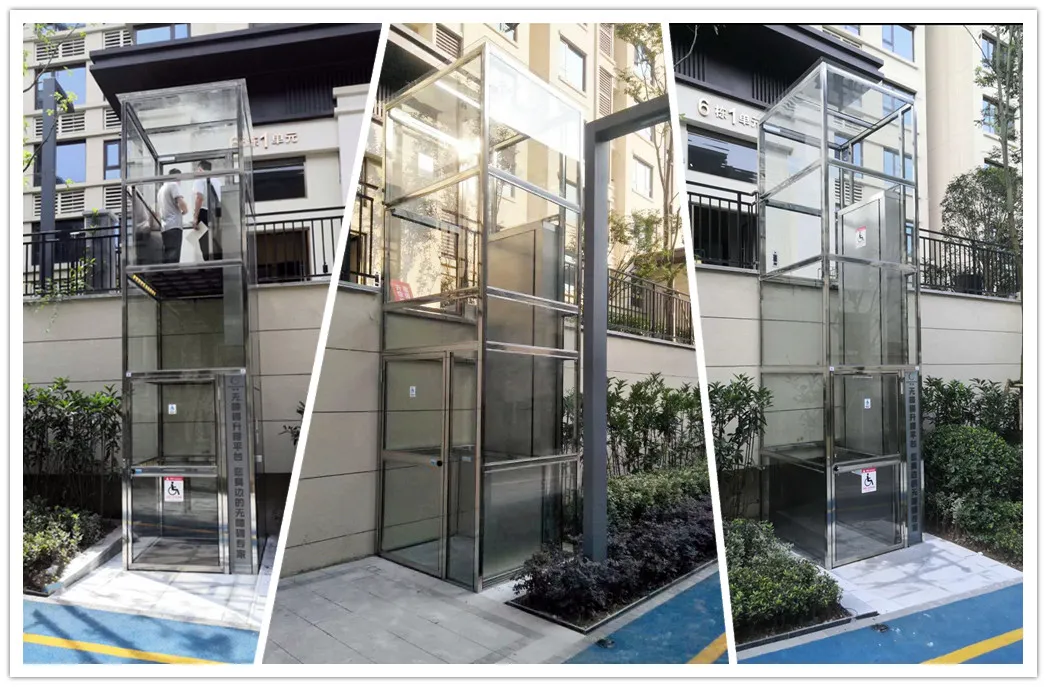

Residential Hoistway Elevator Application

Application Range: Residential quarters, villas, hotels, administrative office buildings, subways, banks, gymnasiums, hospitals, and pension centers.

Technical Parameters

Y-160 Hoistway Vertical Platform Lifts Details
Voltage	220V/50HZ or Customized

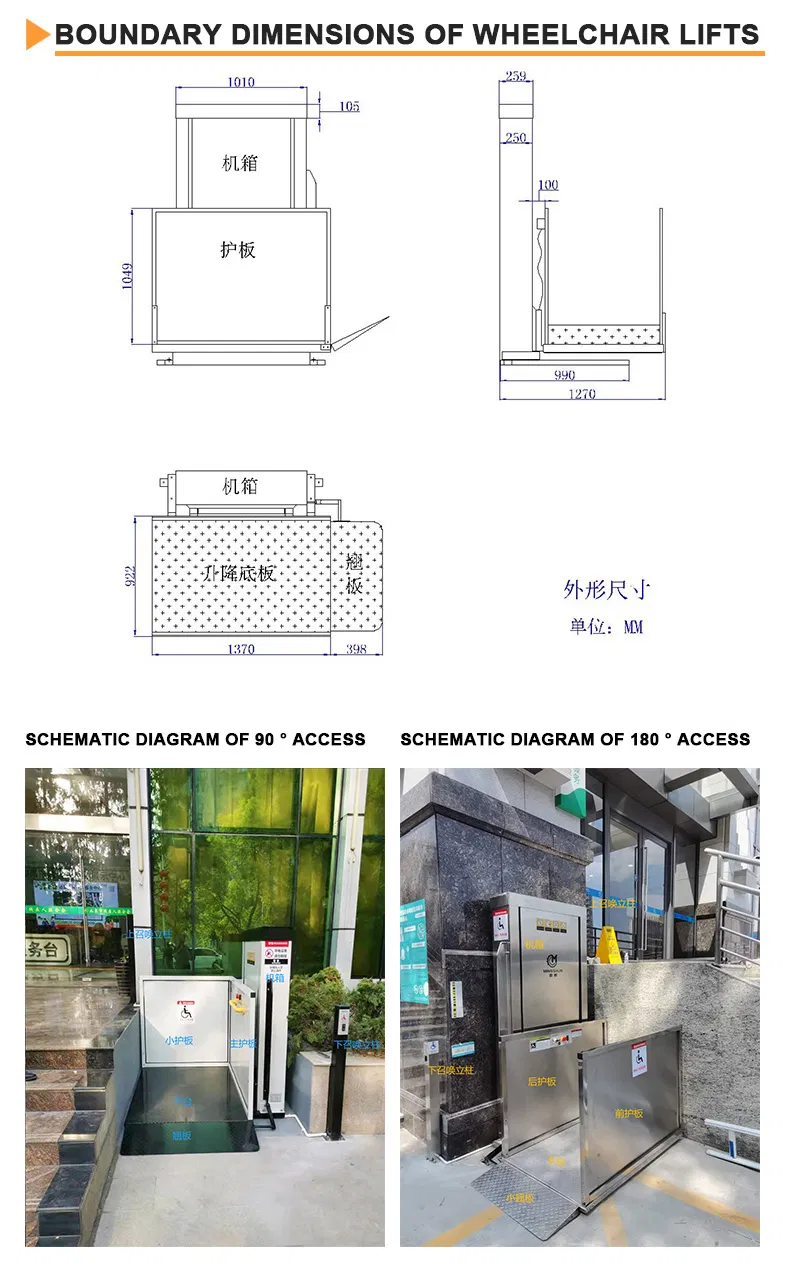

Overall Dimensions	1590mm×1380mm×(Lifting Height+2200mm)
Installation Dimensions	1590 mm(L)×1380 mm(W)
Lifting Base Plate Size	1370mm×920mm
Lifting Speed	90mm/s Inverter control, soft start soft brake
Max. Loading	240kg
Drive Way	Hydraulic double-valve silent motor-driven
Motor Power	2.2kw 220V/AC
Proper Temperature	-20°C to 60°C
Safety - Overload	Does not operate when overloaded with alarm signal
Safety - Emergency	Emergency stop button and electric descent included

Frequently Asked Questions

Does the installation of this lift require a machine pit?

No, this platform lift does not require a machine pit. It can be directly fixed on a horizontal concrete floor and wall, making installation much simpler.

Is it suitable for wheelchair users?

Yes, the platform space is designed to accommodate both a wheelchair and an escort, providing a safe solution for disabled access.

Can the lift be used outdoors?

Absolutely. The Y-160 is designed for both indoor and outdoor environments and can operate in temperatures ranging from -20°C to 60°C.

What are the safety features included?

The lift includes overload protection with an alarm, an emergency stop button, electric emergency descent, and safety doors with sensor light curtains.

What is the maximum lifting height and weight capacity?

The standard lifting height ranges from 1m to 10m (customizable), and it has a maximum loading capacity of approximately 240kg to 250kg.

How long is the production lead time?

Production typically takes about 30 days after receiving the customer's deposit.
