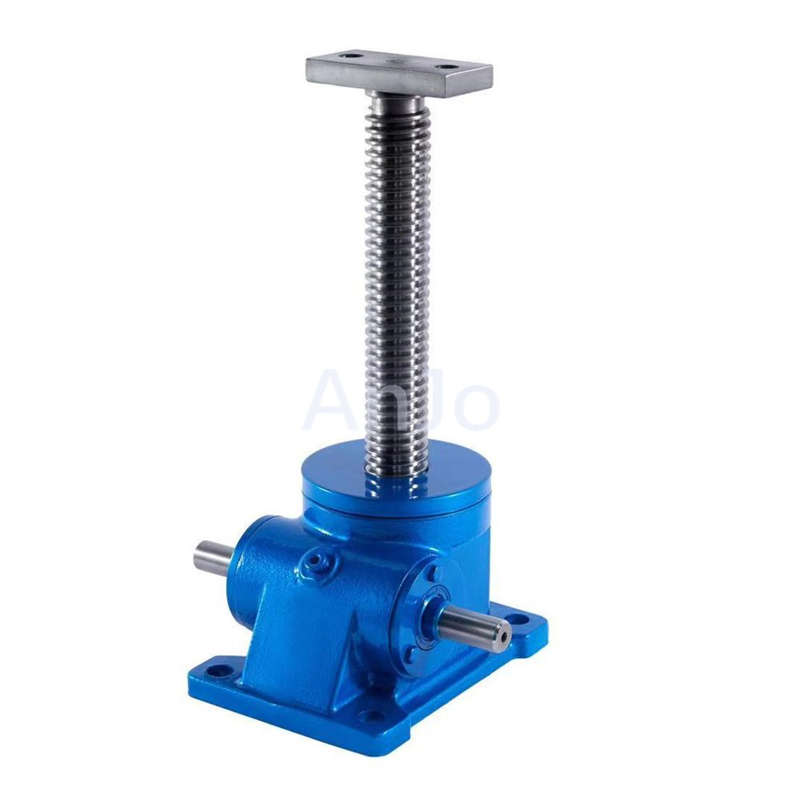

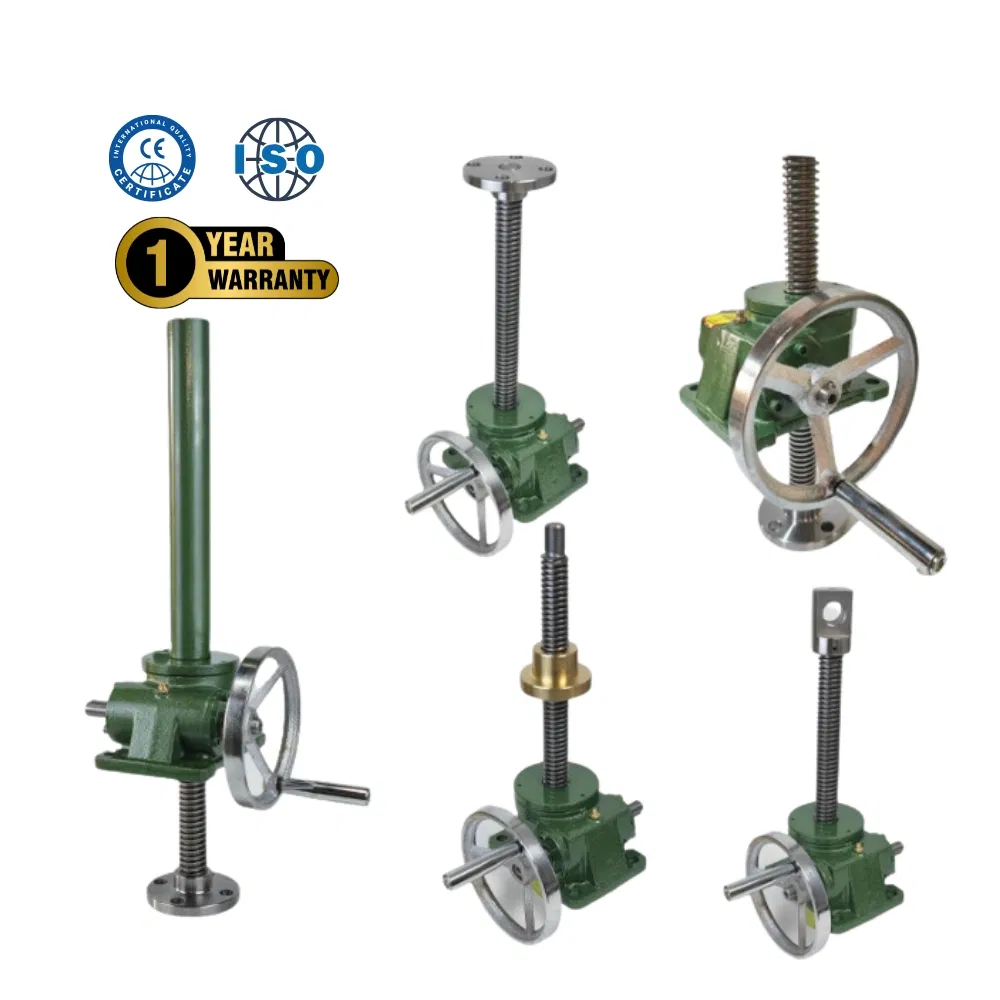

Swl1 Swl2.5 200kg 500kg Lifting Weight 500mm 1000mm Customized Height Worm Gear Jack Linear Actuator Lead Screw Jack

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Type

Mechanical Jack

Structure

Screw Jack

Capacity (Load)

1 to 120 Ton

Power Source

Manually Operated, Motor Driven

Max Height

>400mm

Certification

CE, ISO 9001:2008

Condition

New

Worm Gear Ratios

5:1 to 32:1

Lifting Screw Ends

Top Plate, Clevis End, Threaded End, Plain End

Mount Types

Upright Mount, Inverted Mount

Travel Length

10mm - 10000mm

Production Capacity

30000PCS Per Month

💡 Product Description

✔ Suitable for heavy load, low speed, and low frequency operations.

✔ Precision trapezoid screw pair and high precision worm gear pair components.

✔ Compact design, lightweight, low noise, and easy maintenance.

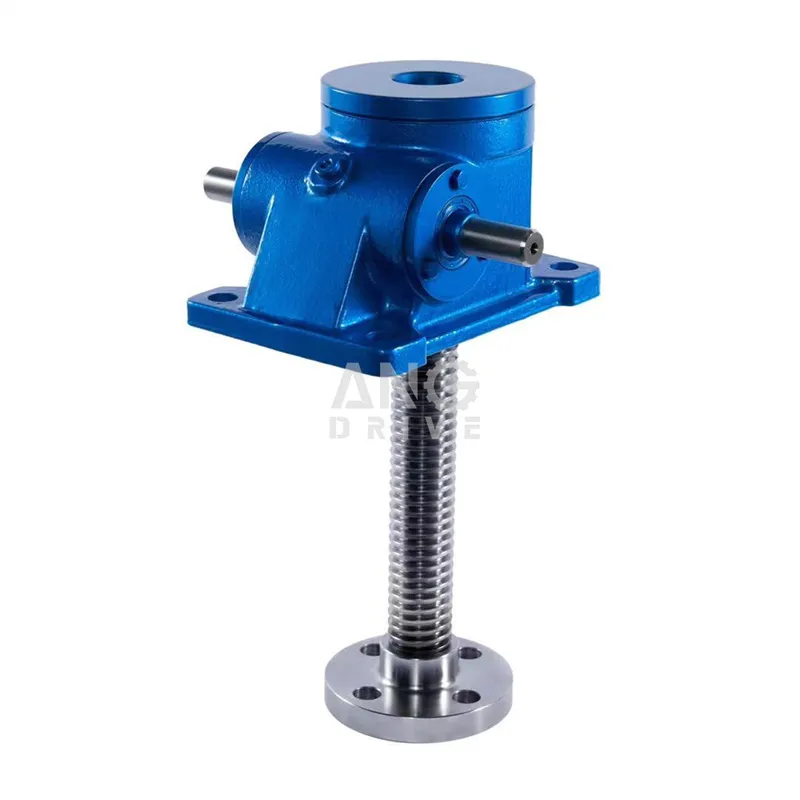

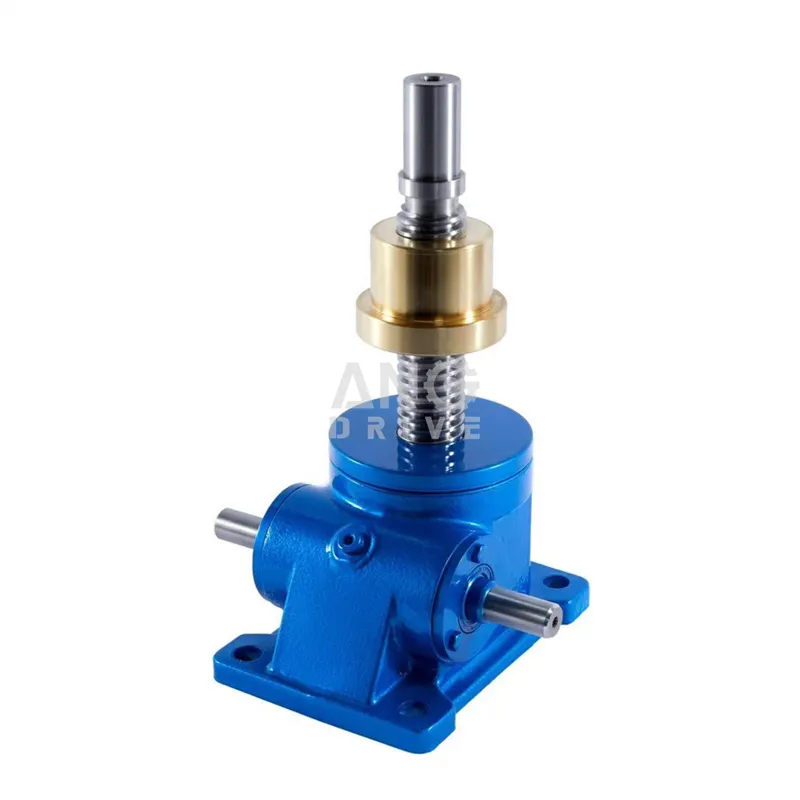

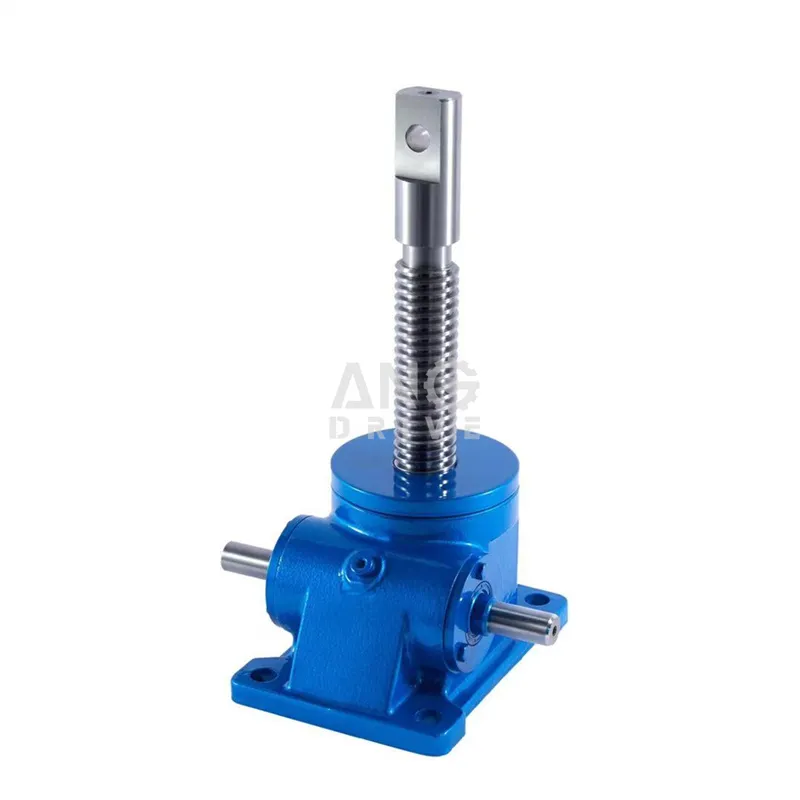

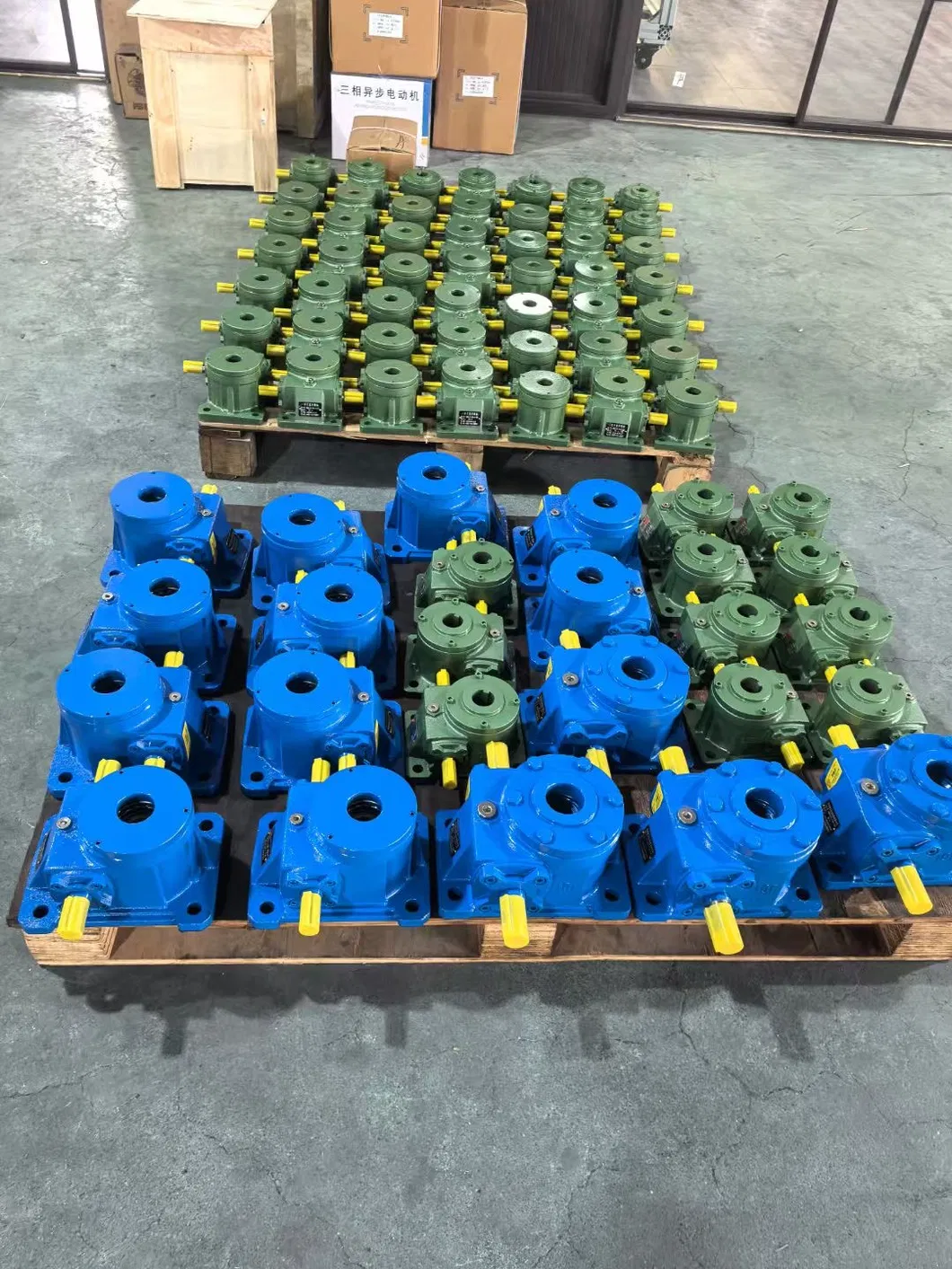

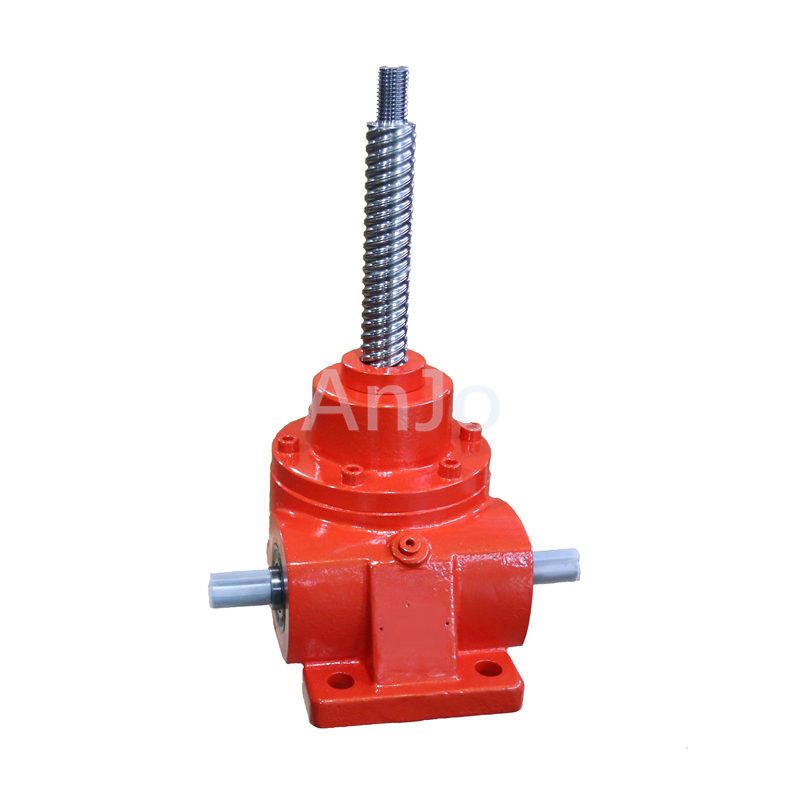

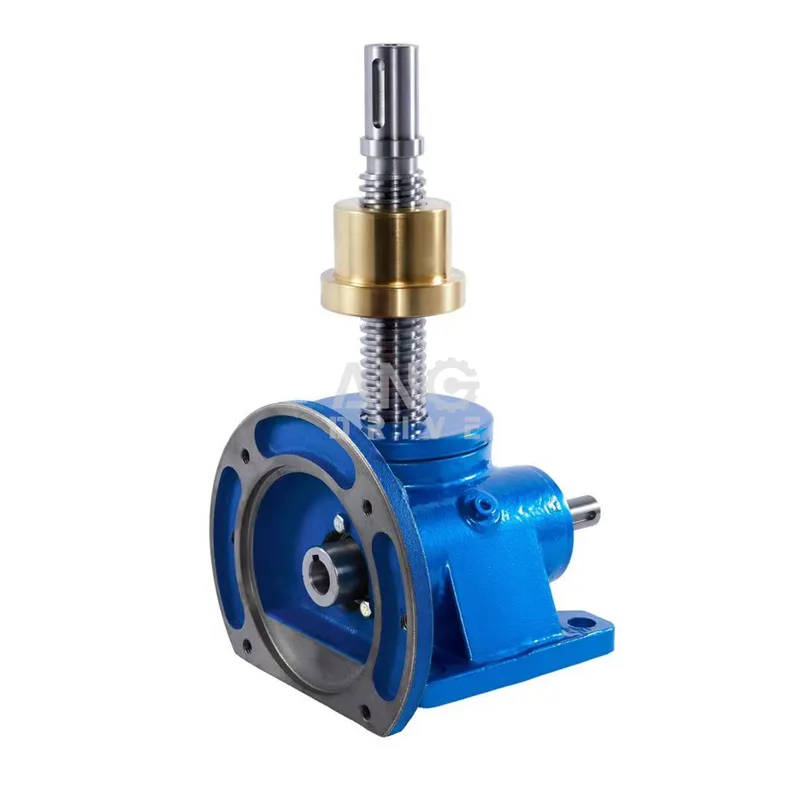

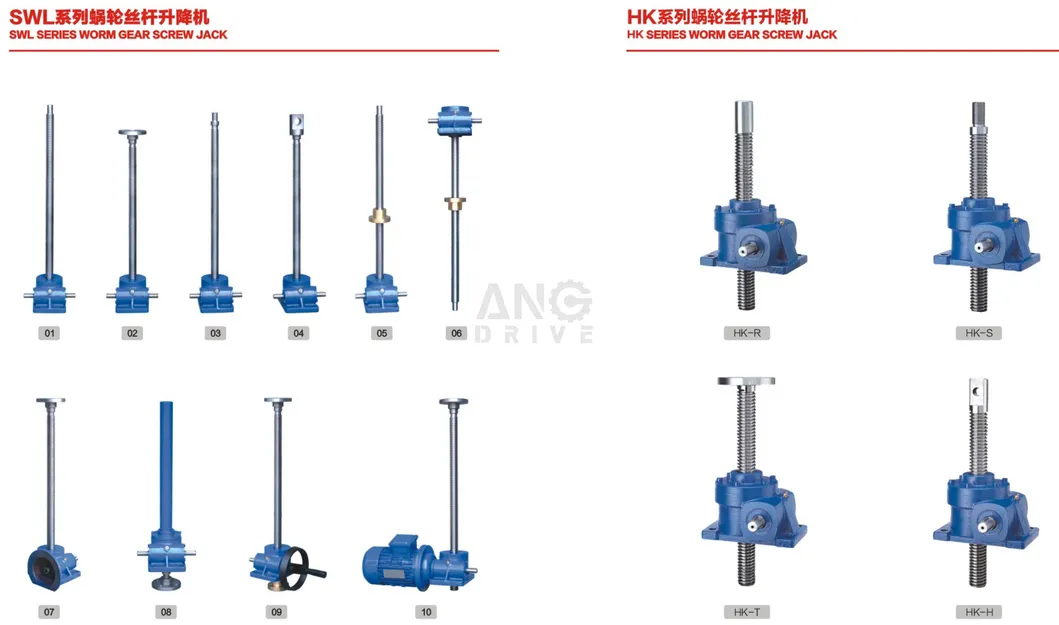

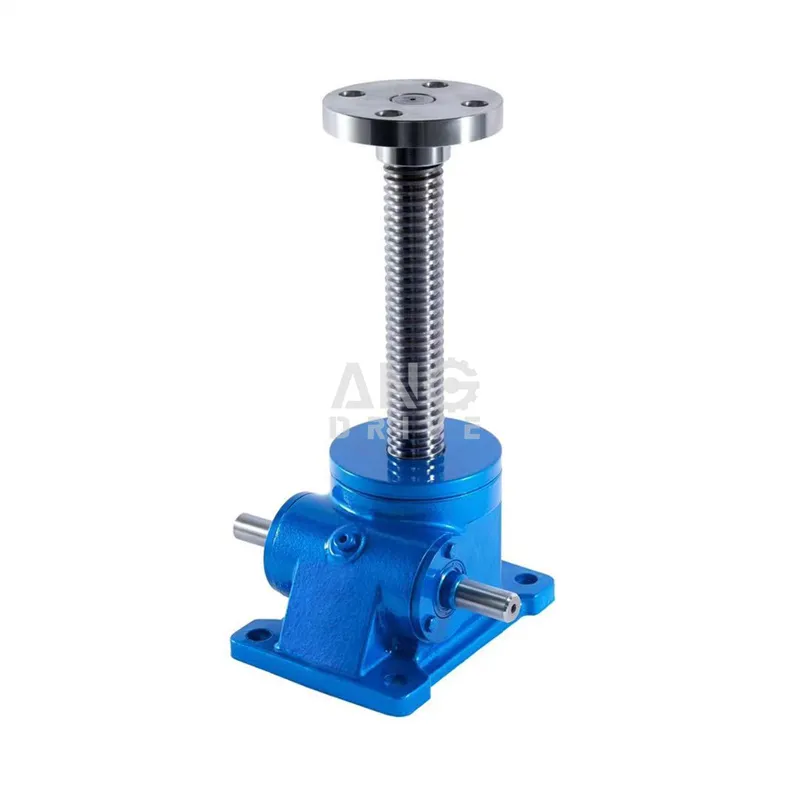

📷 Detailed Photos

📊 Product Parameters

Model	Screw Thread Size	Max Lifting Weight	Max Strength (kN)	Pull Force (kN)	Weight (kg)
SWL2.5	Tr30*6	750KG	25	25	7.3
SWL5	Tr40*7	1500KG	50	50	16.2
SWL10/15	Tr58*12	2500/3750KG	100/150	99	25
SWL20	Tr65*12	5000KG	200	166	36
SWL25	Tr90*16	6250KG	250	250	70.5
SWL50	Tr120*20	12500KG	500	500	420
SWL100	Tr160*23	23000KG	1000	1000	1010
